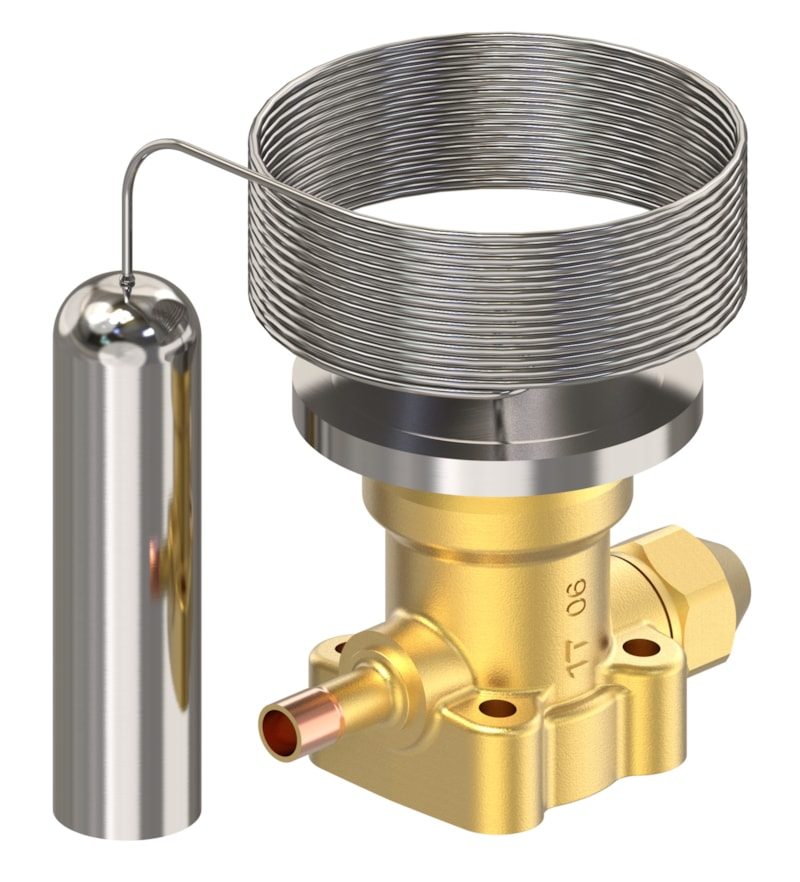

Danfoss power element for TE 5 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 28 bar (400 psig)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss exchangeable thermostatic power element for the TE 5 expansion valve, charged for R404A/R507A. Externally equalized. MOP 28 bar (400 psig). Capillary tube 3000 mm. 1/4 in solder ODF equalization connection. Laser-welded stainless steel element, capillary tube and bulb. Supplied with bulb strap.
Technical Specifications
- Type
- Power element (thermostatic element, exchangeable)
- Used for
- TE 5
- Refrigerant
- R404A/R507A
- Pressure equalization
- externally equalized
- MOP
- MOP 28 bar (400 psig)
- Evaporating temperature range
- -40 to +10 °C
- Capillary tube
- 3000 mm
- Equalization connection
- 1/4 in solder ODF
- Element/capillary/bulb
- Laser-welded stainless steel
- Net weight
- 0.457 kg / Gross: 0.518 kg
- EAN
- 5702428148955
- Code number
- 067B3380
- Product group
- Expansion valves
- Type designation
- Element
- Body material
- Brass
- Max. working pressure
- 28.0 bar
- Temperature range
- -40 °C to 10 °C
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Capillary tube length
- 3000 mm
- Equalization connection type
- Solder, ODF
- Equalization size
- 1/4 in
- EU RoHS compliance
- Yes with exemptions
- Compatible with
- TE 5 thermostatic expansion valve
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
