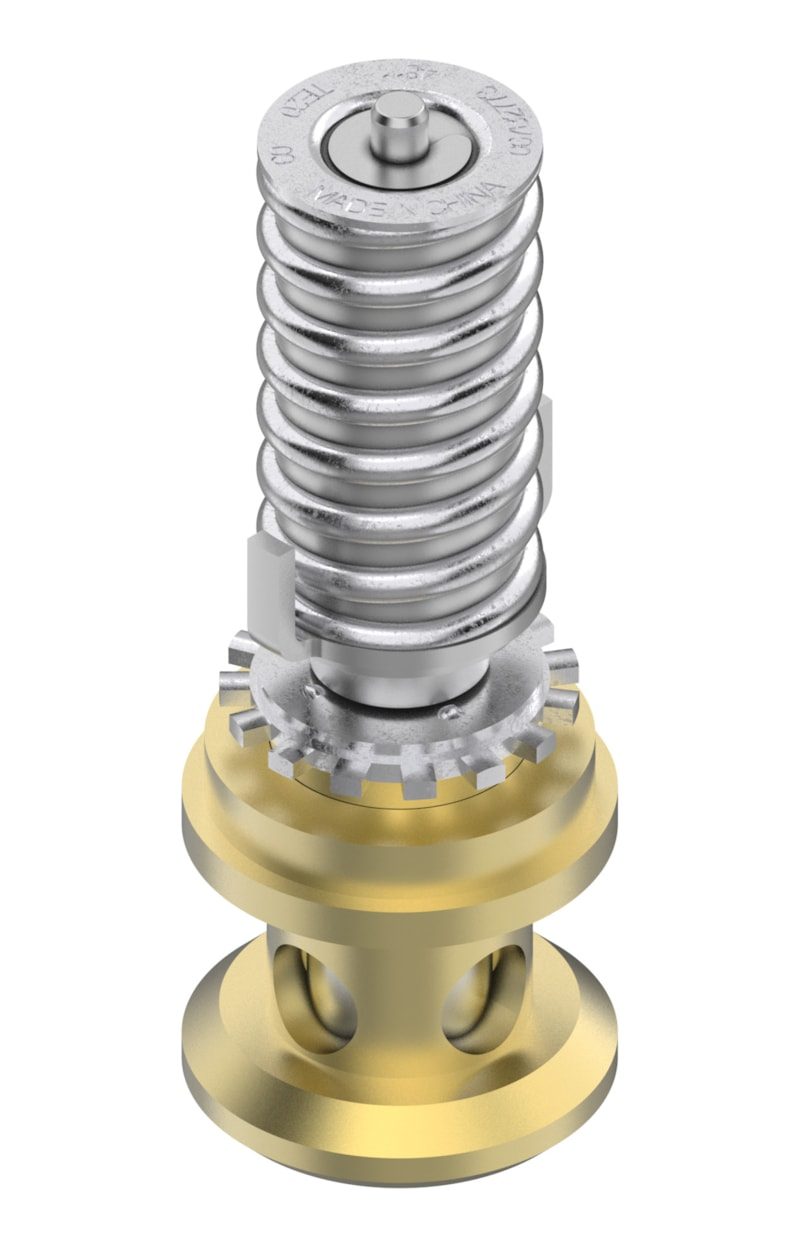

Danfoss orifice assembly no. 9 for TE 20 thermostatic expansion valve, rated 148 kW / 42 TR R22 (Range N)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 9 for the TE 20 thermostatic expansion valve. Rated 148 kW / 42 TR on R22 (Range N). Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 20 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 20
- Orifice no.
- 9
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity (Range N)
- R22 148 kW / 42 TR; R407A 148 kW / 42 TR; R407F 158 kW / 45 TR; R407C 134 kW / 38 TR; R404A/R507 102 kW / 29 TR; R134a 91 kW / 26 TR
- Net weight
- 0.13 kg / Gross: 0.162 kg
- EAN
- 5702428320948
- Code number
- 067B2773
- Product group
- Expansion valves
- Orifice size
- 9
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 91.00 kW, 26.00 TR
- Rated cap. R22, Range B
- 73.20 kW, 20.90 TR
- Rated cap. R22, Range N
- 148.00 kW, 42.00 TR
- Rated cap. R404A, Range B
- 43.50 kW, 12.40 TR
- Rated cap. R404A, Range N
- 102.00 kW, 29.00 TR
- Rated cap. R407A, Range N
- 148.00 kW, 42.00 TR
- Rated cap. R407C, Range N
- 134.00 kW, 38.00 TR
- Rated cap. R407F, Range N
- 158.00 kW, 45.00 TR
- Rated cap. R507, Range B
- 43.50 kW, 12.40 TR
- Rated cap. R507, Range N
- 102.00 kW, 29.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
