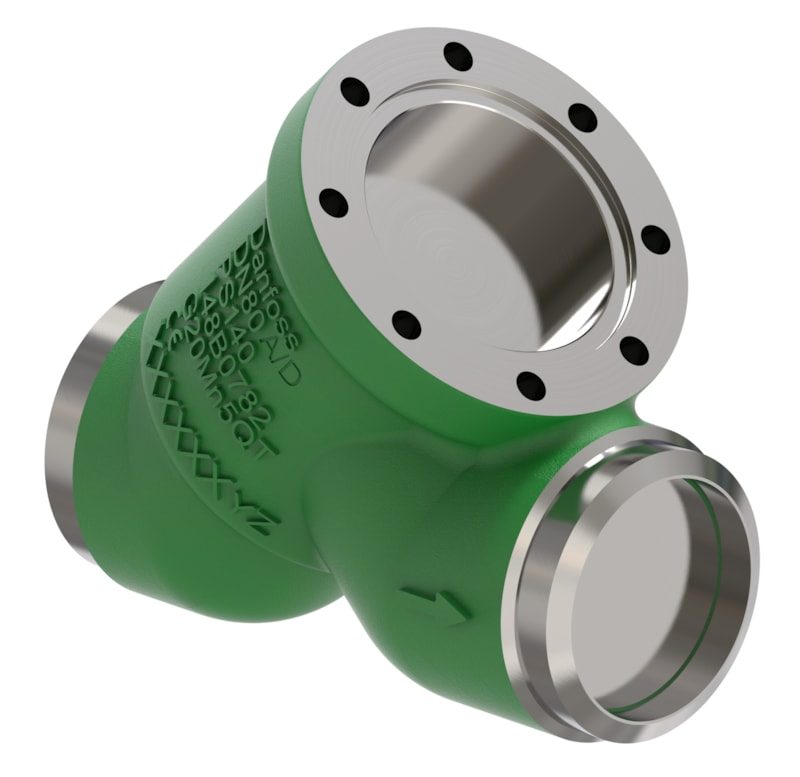

Danfoss SVL-140B 80 multifunction valve body (R744/CO2, 140 bar), 80 mm (3 in) butt weld straightway, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL-140B 80 multifunction valve body (bare housing) for the high-pressure SVL Flexline range used on R744 (CO2) industrial-refrigeration plant, store code 148B5972. Steel straightway housing (inlet and outlet in line) with butt-weld connections both ends to ANSI B36.10 Schedule 80 / EN 10216-2, nominal size 80 mm (3 in). Rated for 140 bar (2030 psig) transcritical/subcritical CO2 duty; single-flow with embossed 1-way arrow. This is the interchangeable valve body only — it accepts SVL function modules (stop, stop-check, regulating, etc.) ordered separately. Media temperature -40 to 150 C (-40 to 302 F). Net weight 8.15 kg, gross weight 9.3 kg. Specifications per Danfoss store code 148B5972.
Technical Specifications
- Type
- SVL-140B 80 multifunction valve body (valve housing)
- Code number
- 148B5972
- Series
- SVL Flexline 140 bar (R744/CO2)
- Nominal size
- 80 mm (3 in)
- Connection
- butt weld both ends, ANSI B36.10 Schedule 80 / EN 10216-2
- Body material
- Steel
- Body geometry
- Straightway
- Flow direction
- single-flow, embossed 1-way arrow
- Function
- bare valve body — accepts SVL function modules (ordered separately)
- Maximum working pressure
- 140 bar (2030 psig)
- Media temperature range
- -40 to 150 C (-40 to 302 F)
- Applicable media
- R744 (CO2), industrial-refrigeration refrigerants and oils
- Weight
- net weight 8.15 kg, gross weight 9.3 kg
- Approvals
- CE, cUL us Listed, CRN
- EAN
- 5715162515969
- Net weight
- 8.15 Kilogram
- Product group
- Multifunction valves
- Approval
- C UL US LISTED
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection Code
- (2008:D71:80); (2009:XS:80)
- Connection material
- Steel
- Connection standard
- ANSIB36.10 SCH80
- Direction
- Straightway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 2
- Inlet connection size [in]
- 3 in
- Inlet connection size [mm]
- 80 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 140 bar
- Max. Working Pressure [psig]
- 2030 psig
- Outlet connection size [in]
- 3 in
- Outlet connection size [mm]
- 80 mm
- Outlet connection type
- Butt weld
- PED category
- I
- REACH Candidate List substances
- No
- Refrigerants
- R744
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -40 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -40 °F
- UL mark
- Yes
- Used for product
- FIA-140B 80
Standards & Compliance
- Standard
- ANSI B36.10 Schedule 80 / EN 10216-2
- Size / Series
- 80 mm (3 in)
- Material
- Steel
- Pressure Rating
- 140 bar
- Temperature Range
- -40 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL-140B 140 bar (CO2) multifunction valve body — straightway, 80 mm (3 in). Bare housing: pair with a matching SVL function module to make a stop, stop-check or regulating valve. The straightway and angleway (148B5971) bodies of the same size are separate codes. The 140 bar SVL-140B family is not interchangeable with the 52 bar SVL Flexline bodies.
