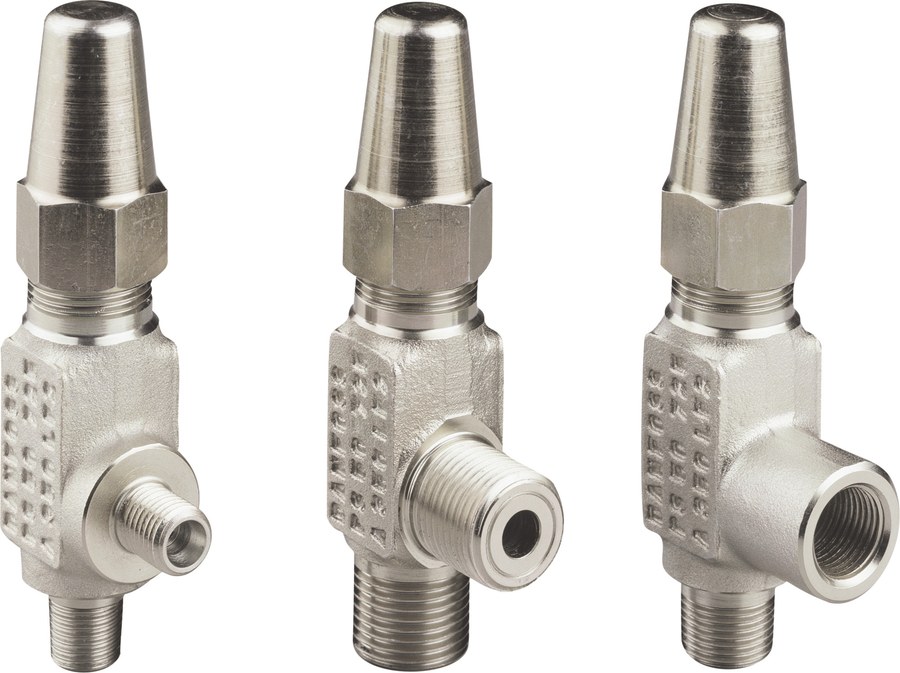

Danfoss SNV-ST gauge (stop needle) valve, 10 mm cutting-ring both ends, steel, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SNV-ST gauge valve (stop needle valve) for isolating pressure gauges and instruments on industrial-refrigeration lines, store code 148B6400. Steel body with 10 mm cutting-ring (compression) connections both ends; the fine needle spindle gives throttled shut-off so a gauge can be isolated, vented or snubbed without shocking the movement. Bi-flow. Maximum working pressure 65 bar (943 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 0.364 kg, gross weight 0.428 kg. Approvals EAC (LLC CDC TYSK) and TÜV. Specifications per Danfoss store code 148B6400.
Technical Specifications
- Type
- SNV-ST gauge / stop needle valve
- Code number
- 148B6400
- Connection
- 10 mm cutting ring (compression) both ends
- Body material
- Steel
- Flow direction
- bi-flow
- Function
- needle shut-off / gauge isolation
- Maximum working pressure
- 65 bar (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Weight
- net weight 0.364 kg, gross weight 0.428 kg
- Approvals
- EAC (LLC CDC TYSK), TÜV
- EAN
- 5702428823395
- Product group
- Shut-off and regulating valves
- Direction
- Angleway
- Connection material
- Steel
- Connection standard
- DIN 3901
- Inlet connection size
- 10.00 mm
- Inlet connection type
- Cutting ring
- Outlet connection size
- 10.0 mm
- Outlet connection type
- Cutting ring
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R113; R114; R1150; R1233zd(E); R1234yf; R1234ze(E); R125; R1270; R1336mzz(Z); R134a; R152a; R170; R22; R227ea; R23; R236fa; R245fa; R290; R32; R401A; R402A; R402B; R404A; R407A; R407B; R407C; R407F; R407H; R408A; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R427A; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R503; R507A; R508B…
- Fluid Group
- 1
- PED category
- Art. 4, par. 3
- REACH candidate-list substances
- No
- Colour Paint
- Cr3 / TLP
- Equipment
- Cap
- Valve version
- Standard version
- EU RoHS compliance
- Yes
Standards & Compliance
- Size / Series
- 10 mm
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SNV-ST needle valve for gauge / instrument isolation. 10 mm cutting-ring (compression) ends — confirm the tube OD before ordering. Cutting-ring, NPT and solder SNV bodies are separate codes and are not interchangeable.
