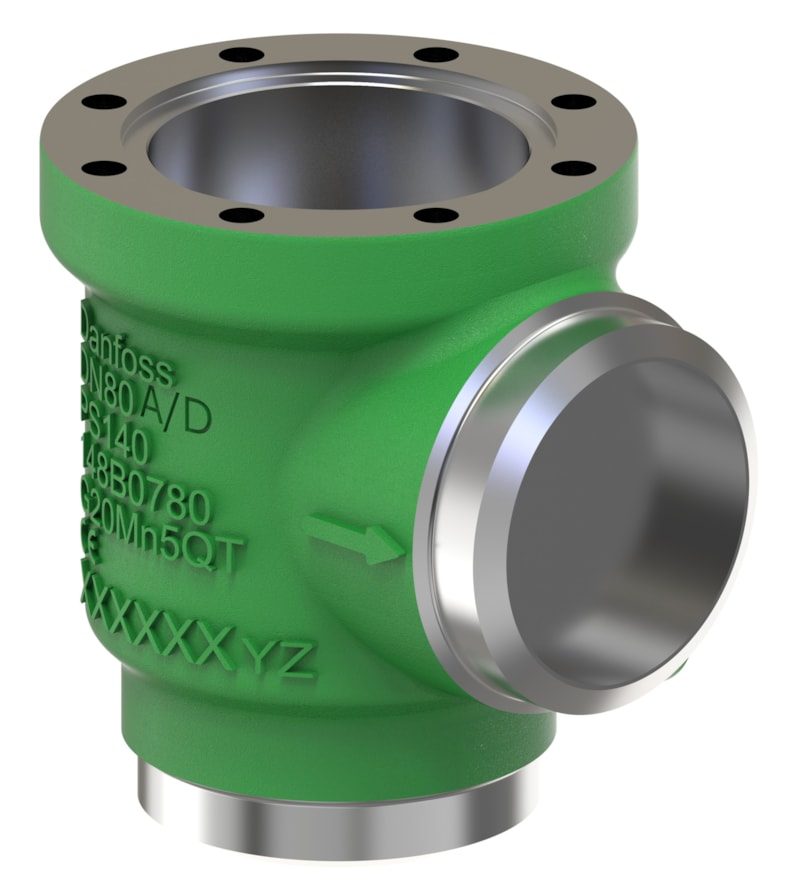

Danfoss SVL-140B 80 multifunction valve body (R744/CO2, 140 bar), 80 mm (3 in) butt weld angleway, steel (code 148B5971)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL-140B 80 multifunction valve body (bare housing) for the high-pressure SVL Flexline range used on R744 (CO2) industrial-refrigeration plant, store code 148B5971. Steel angleway housing with butt-weld connections both ends to ANSI B36.10 Schedule 80 / EN 10216-2, nominal size 80 mm (3 in). Rated for 140 bar (2030 psig) transcritical/subcritical CO2 duty; single-flow with embossed 1-way arrow. This is the interchangeable valve body only — it accepts SVL function modules (stop, stop-check, regulating, etc.) ordered separately, so one housing platform serves several valve functions. Media temperature -40 to 150 C (-40 to 302 F). Net weight 6.2 kg, gross weight 7.25 kg. Specifications per Danfoss store code 148B5971.
Specifications
- Part number
- 148B5971
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 140 bar
- Temperature range
- -40 to 150 C
- Standard
- ANSI B36.10 Schedule 80 / EN 10216-2
- Standard size
- 80 mm (3 in)
Compatibility
Danfoss SVL-140B 140 bar (CO2) multifunction valve body — angleway, 80 mm (3 in). Bare housing: pair with a matching SVL function module to make a stop, stop-check or regulating valve. The 140 bar SVL-140B family is distinct from the 52 bar SVL Flexline bodies and is not interchangeable with them. Confirm the butt-weld schedule (ANSI B36.10 Sch80 / EN 10216-2) before ordering.
Standards
- EN 10216-2
- ANSI B36.10
- PED 2014/68/EU
Approvals
