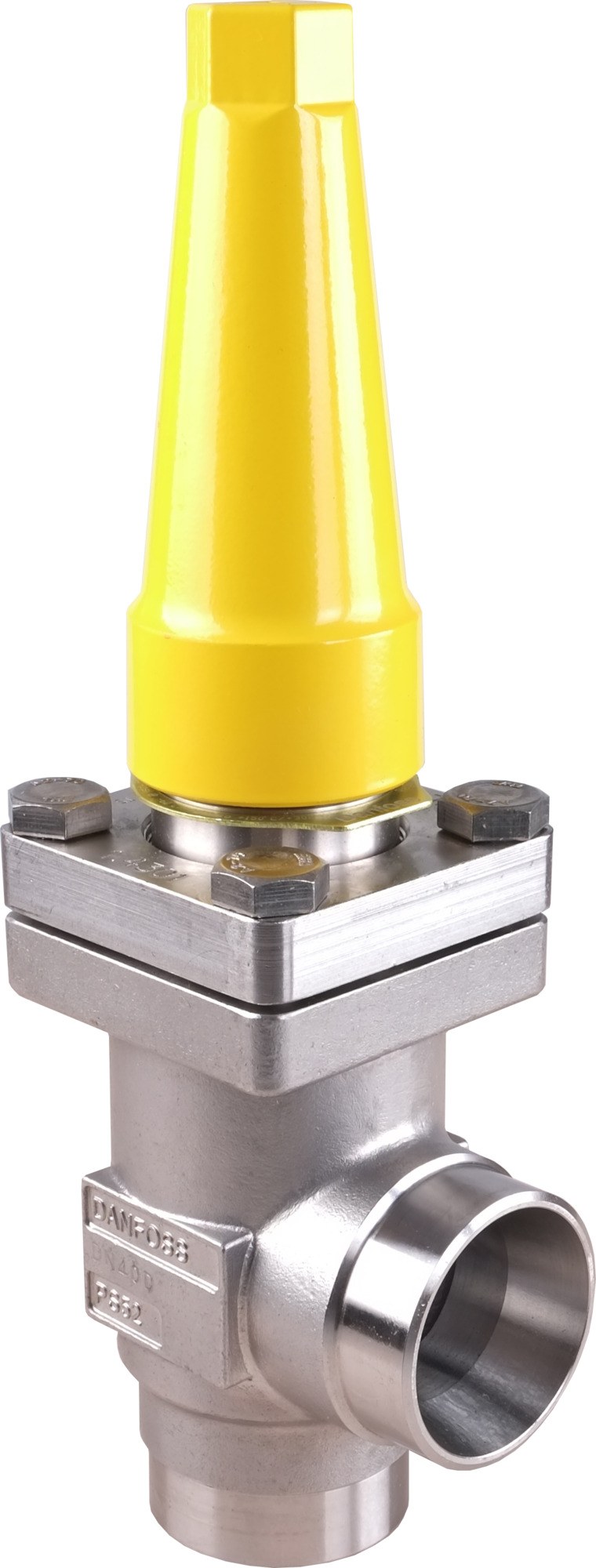

Danfoss REG-SB SS 32 angleway hand regulating valve, 32 mm (1 1/4 in) butt weld, stainless steel, Kv 20, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SB SS 32 hand-operated regulating (throttling) valve for stainless-steel industrial-refrigeration piping, store code 148B5954. Stainless-steel angleway body with butt-weld connections both ends, nominal size 32 mm (1 1/4 in). Continuously adjustable spindle sets and holds a defined flow restriction for balancing liquid, suction and hot-gas branches; flow coefficient Kv 20 m3/h. The SS body suits corrosive and stainless-piped R717 (ammonia), R744 (CO2) and HFC systems. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 3.19 kg, gross weight 3.762 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5954.
Technical Specifications
- Type
- REG-SB SS 32 hand regulating valve
- Code number
- 148B5954
- Nominal size
- 32 mm (1 1/4 in)
- Connection
- butt weld both ends
- Body material
- Stainless steel
- Body geometry
- Angleway
- Flow direction
- bi-flow, embossed 1-way arrow
- Function
- manual throttling / regulating (adjustable restriction)
- Flow coefficient
- Kv 20 m3/h
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC refrigerants and oils
- Weight
- net weight 3.19 kg, gross weight 3.762 kg
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE, EAC (LLC CDC TYSK)
- EAN
- 5702424538873
- Net weight
- 3.19 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Stainless steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 23.2 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow area [in2]
- 0.823 in²
- Flow area [mm2]
- 531 mm²
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 20 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R1234yf
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Size / Series
- 32 mm (1 1/4 in)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss REG-SB SS stainless-steel hand regulating valve. Select by nominal size (DN32 / 1 1/4 in). The SS (stainless) body is a separate range from the carbon-steel REG-SA/REG-SB; confirm the piping material and butt-weld schedule before ordering. Shares the SVL Flexline platform with the SVA-S/SVA-L shut-off and SCA-X/CHV-X check valves of the same size.
Product Documentation
More from Danfoss
Danfoss
Danfoss SVL-140B 80 multifunction valve body (R744/CO2, 140 bar), 80 mm (3 in) butt weld angleway, steel
148B5971
Danfoss
Danfoss SVL-140B 80 multifunction valve body (R744/CO2, 140 bar), 80 mm (3 in) butt weld straightway, steel
148B5972
Danfoss

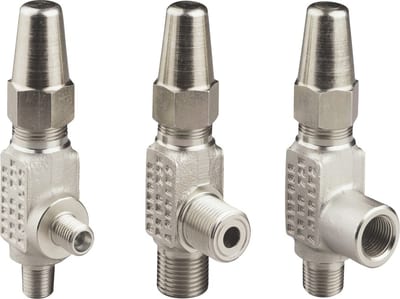

Danfoss SNV-ST gauge (stop needle) valve, 10 mm cutting-ring both ends, steel, 65 bar
148B6400
Danfoss
Danfoss STC 100 SET B1 Cone, spare
148B6451
Danfoss
Danfoss STC 125 SET B1 Cone, spare
148B6452
Danfoss
Danfoss STC 150 SET B1 Cone, spare
148B6453
Danfoss

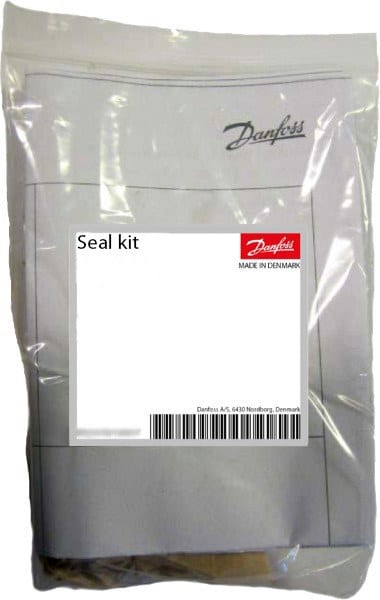

Danfoss STC 15-25 SET A Seals kit, spare
