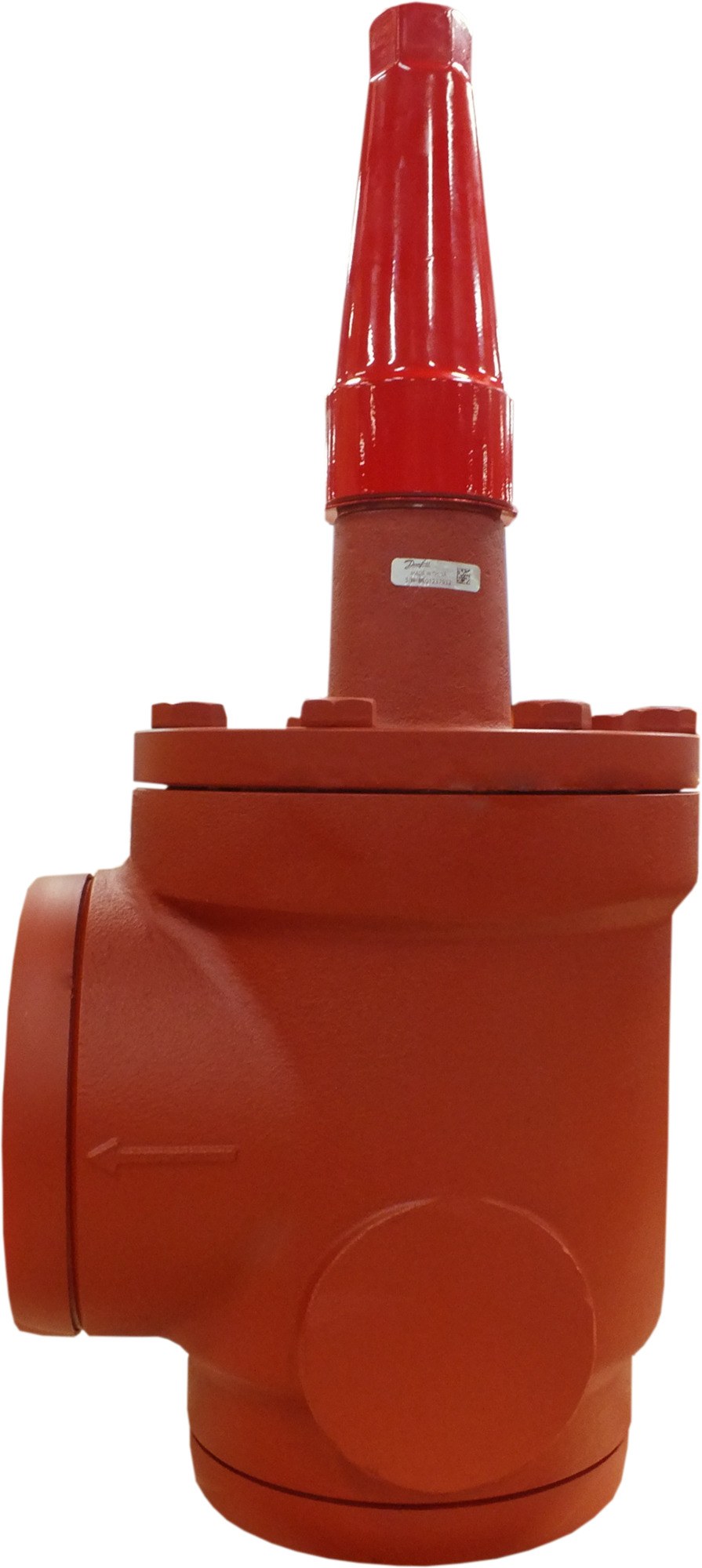

Danfoss SVA-S 200 shut-off (stop) valve, 200 mm (8 in) butt weld ASME B 36.10M Schedule 40, steel, angleway, cap, 52 bar (code 148B6328)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 200 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B6328. Steel angleway body with butt-weld connections both ends to ASME B 36.10M Schedule 40, giving positive manual isolation of liquid, suction, hot-gas and oil lines. Nominal size 200 mm (8 in); bi-flow (bidirectional); flow coefficient Kv 1168 m3/h. Supplied with a sealing cap (no handwheel) for set-and-forget line service; the back-seating spindle lets the packing be serviced under pressure. Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Net weight 75.63 kg, gross weight 93 kg. Conformity assessment PED 2014/68/EU, Category III. Specifications per Danfoss store code 148B6328.
Specifications
- Part number
- 148B6328
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 40
- Standard size
- 200 mm (8 in)
Compatibility
Danfoss SVL Flexline SVA-S 200 valve, cap variant (no handwheel). Butt-weld ASME B 36.10M Schedule 40 ends — confirm the mating pipe schedule before ordering. The handwheel variant of the same size is a separate code (148B6320). Serviceable with the matching SVA-S 200 spindle/packing spares and function module.
Standards
- ASME B 36.10M Schedule 40
- PED 2014/68/EU
Approvals
