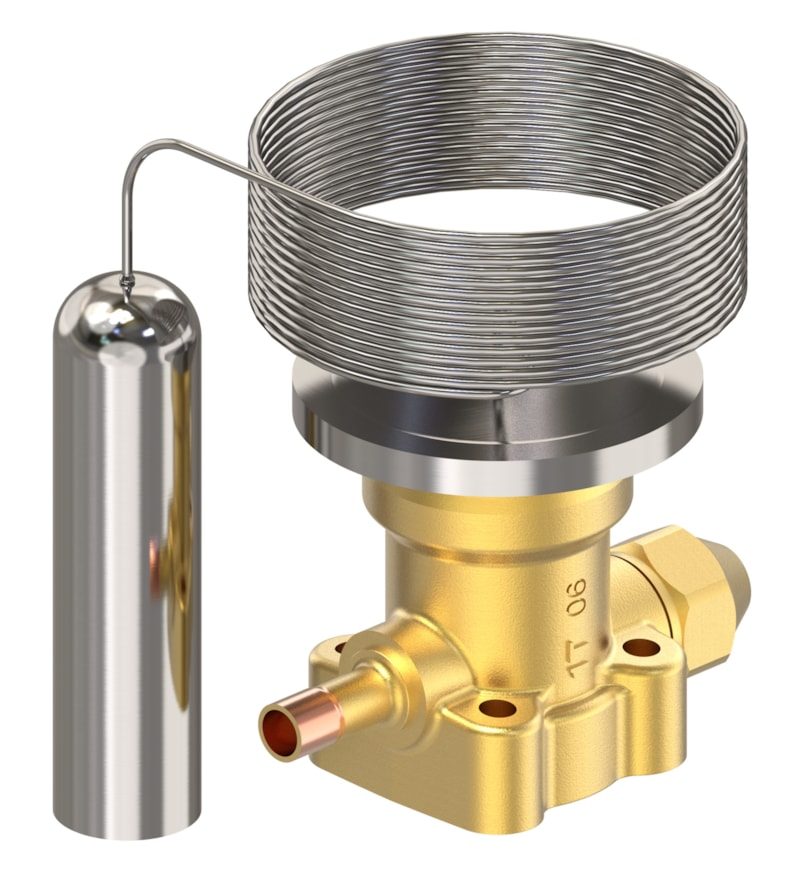

Danfoss power element for TE 5 thermostatic expansion valve, R134a, externally equalized, MOP 28 bar (400 psig) (code 067B3430)
Danfoss · HVAC & Refrigeration · Expansion Valves
Danfoss exchangeable thermostatic power element for the TE 5 expansion valve, charged for R134a. Externally equalized. MOP 28 bar (400 psig). Capillary tube 3000 mm. 1/4 in solder ODF equalization connection. Laser-welded stainless steel element, capillary tube and bulb. Adjustable superheat setting. Supplied with bulb strap, gasket, key and O-ring.
Specifications
- Part number
- 067B3430
- HS code
- 8481.90
Compatibility
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Standards
Approvals
