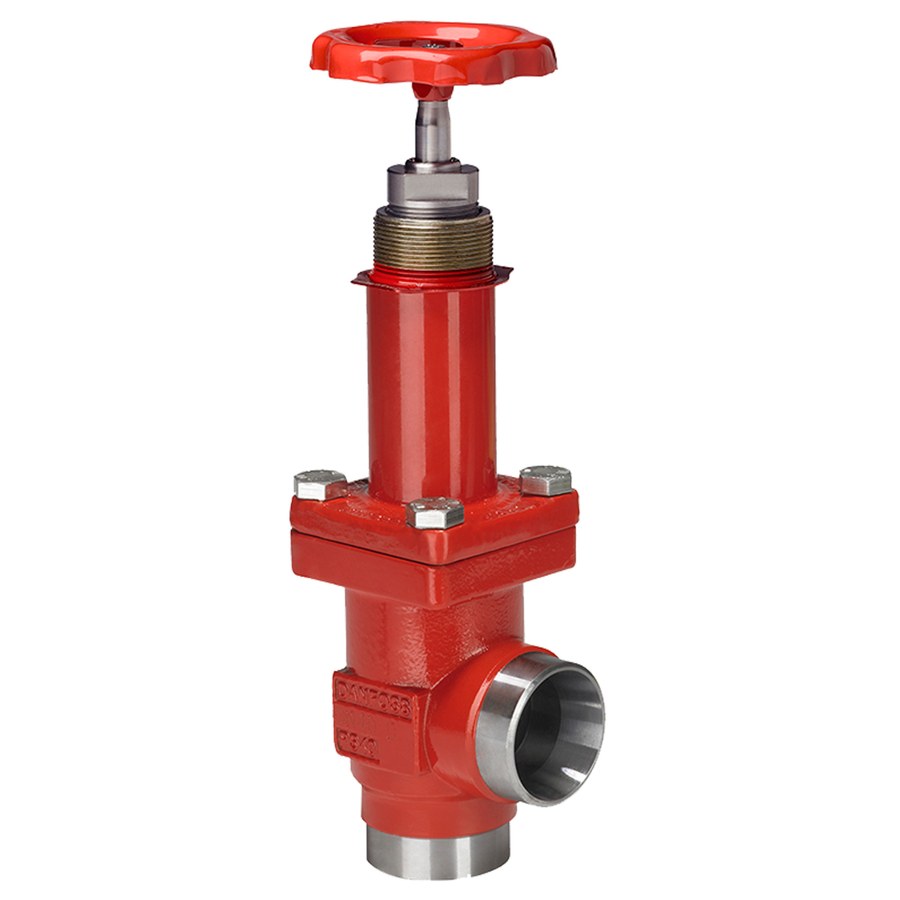

Danfoss SVA-L 15 angleway shut-off valve, NPT threaded, hand wheel, 1/2 in (15 mm), 52 bar

Danfoss SVA-L 15 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5264. This variant carries NPT (National Pipe Thread) inlet and outlet to ANSI/ASME B1.20.1, size 1/2 in (15 mm) — distinct from the butt-weld and socket-weld SVA-L 15 bodies. SVA-L is the long-neck (extended bonnet) version of the Flexline stop valve, suited to thicker insulation. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 8.5 m3/h (Cv 9.86 gal/min). Operated with a hand wheel. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway body places inlet and outlet at 90 degrees.

Type

SVA-L 15 (Stop / shut-off valve)

Code number

148B5264

Series

SVA-S / SVA-L (Flexline stop and shut-off valves)

Function

Manual shut-off (stop) valve

Nominal size

DN15 — 1/2 in (15 mm)

Direction

Angleway

Equipment

Hand wheel

Neck

Long (SVA-L)

Flow direction

Bi-flow

Inlet connection type

NPT

Outlet connection type

NPT

Connection standard

ANSI/ASME B1.20.1

Connection size

1/2 in (15 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

8.5 m3/h

Cv value

9.86 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

Art. 4, par. 3

Approvals

CE, EAC (LLC CDC TYSK)

Net weight

1.8 kg

EAN

5702428469227

Size / Series

1/2 in (15 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.80
