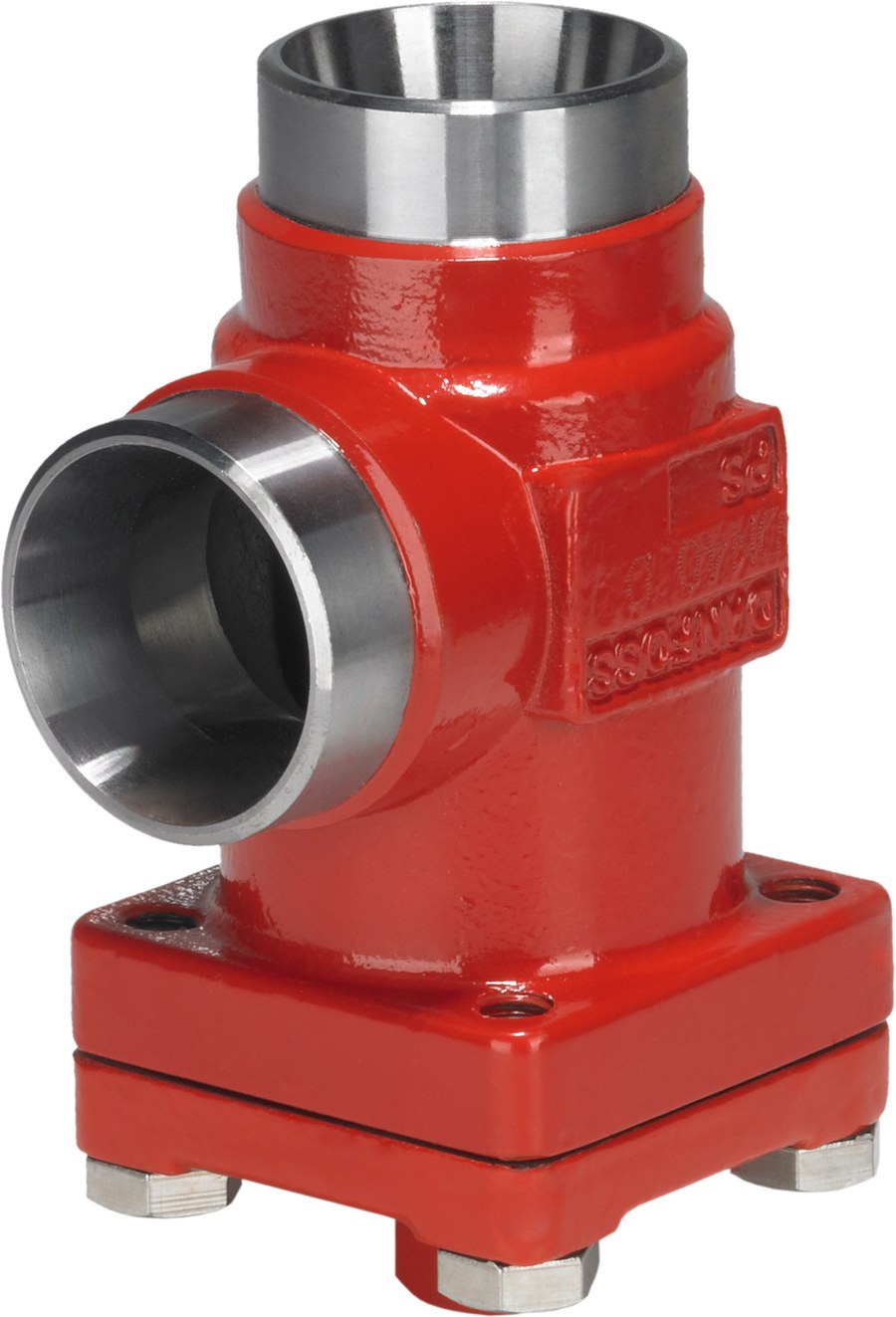

Danfoss FIA 25 angleway strainer housing, socket weld ASME B 16.11, 1 in (25 mm), 52 bar (code 148B5445)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 25 angleway strainer (filter) housing for industrial-refrigeration line service, code 148B5445. The FIA housing takes a replaceable filter insert and removes particles from the refrigerant flow to protect downstream valves and controls. This angleway body carries socket weld inlet and outlet to ASME B 16.11, size 1 in (25 mm) — distinct from the EN 10220 angleway and the straightway FIA 25 codes. Steel body; embossed one-way flow arrow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Supplied with cover. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. The filter insert is ordered separately by mesh/micron rating.
Specifications
- Part number
- 148B5445
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1 in (25 mm)
Compatibility
Danfoss FIA Flexline strainer housing, angleway ASME B 16.11 variant. Select by nominal size (DN25 / 1 in), direction (angleway) and connection standard. The EN 10220, ASME Sch80 butt-weld and ASME B16.11 socket-weld bodies are separate codes and are not interchangeable — confirm the mating pipe connection. Order the filter insert (mesh/micron) separately.
