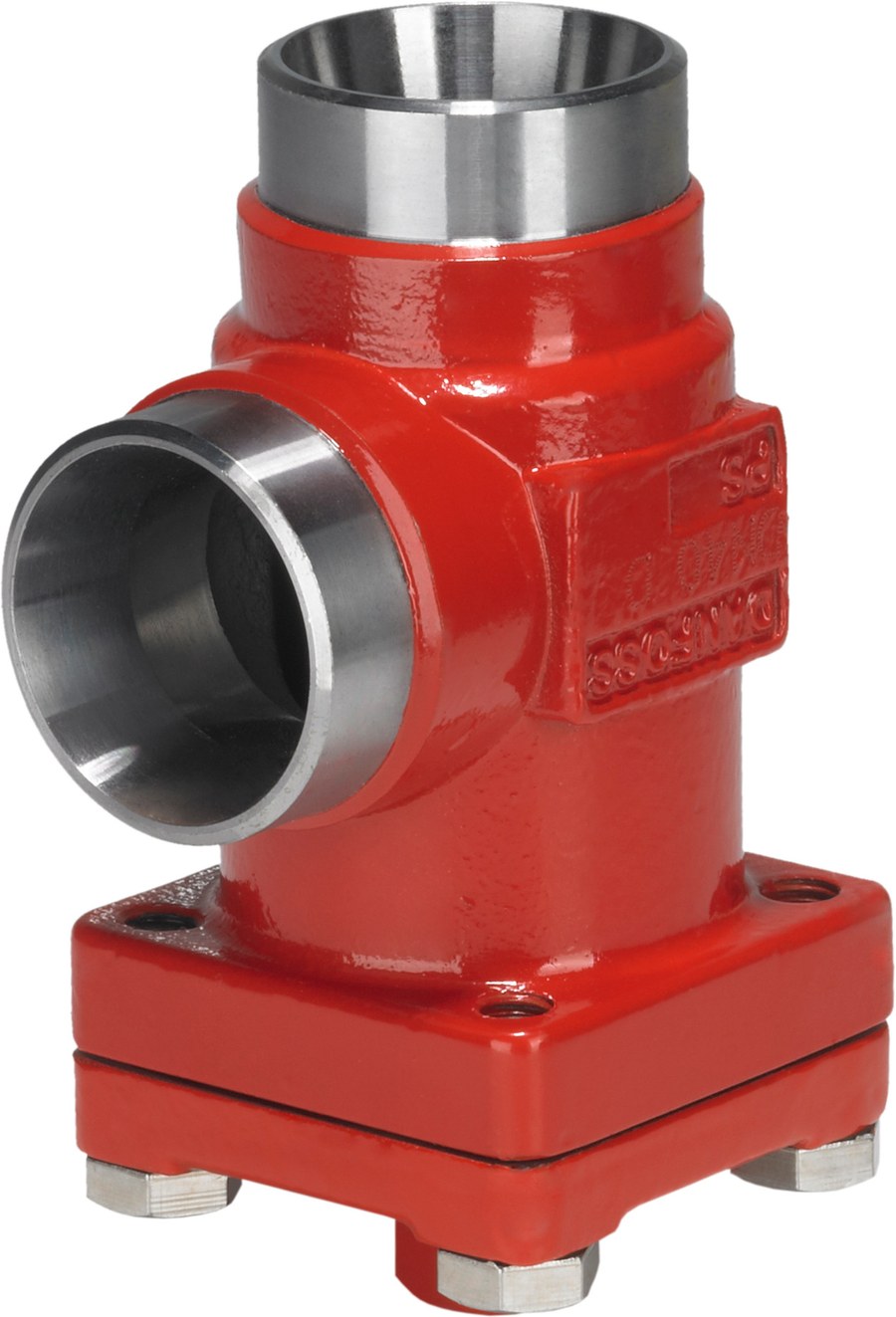

Danfoss FIA 20 angleway strainer housing, butt weld ASME Schedule 80, 3/4 in (20 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 20 angleway strainer (filter) housing for industrial-refrigeration line service, code 148B5344. Flexline strainer housing, size 3/4 in (20 mm), with butt-weld inlet and outlet to ASME B36.10M Schedule 80 in an angleway (90-degree) body with bolted cover - distinct from the EN 10220 and ANSI/ASME B1.20.1 angleway FIA 20 housings. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Embossed 1-way flow arrow. Removable filter insert (ordered separately) retains particulates upstream of valves and controls.
Technical Specifications
- Type
- FIA 20 (strainer / filter housing)
- Code number
- 148B5344
- Series
- FIA (Flexline strainers)
- Function
- Strainer (filter) housing
- Nominal size
- 3/4 in (20 mm)
- Direction
- Angleway
- Equipment
- Cover
- Flow direction
- Embossed 1-way arrow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- ASME B36.10M Schedule 80
- Connection size
- 3/4 in (20 mm)
- Body material
- Steel
- Connection material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- Art. 4, par. 3
- Approvals
- CE
- Net weight
- 1.3 kg
- EAN
- 5702428475167
Standards & Compliance
- Size / Series
- 3/4 in (20 mm)
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss FIA Flexline strainer housing. Select by nominal size (DN20 / 3/4 in), body direction (angleway) and connection standard (ASME B36.10M Schedule 80 butt weld). The filter insert / mesh is a separate order code - confirm micron rating and body direction before ordering.
