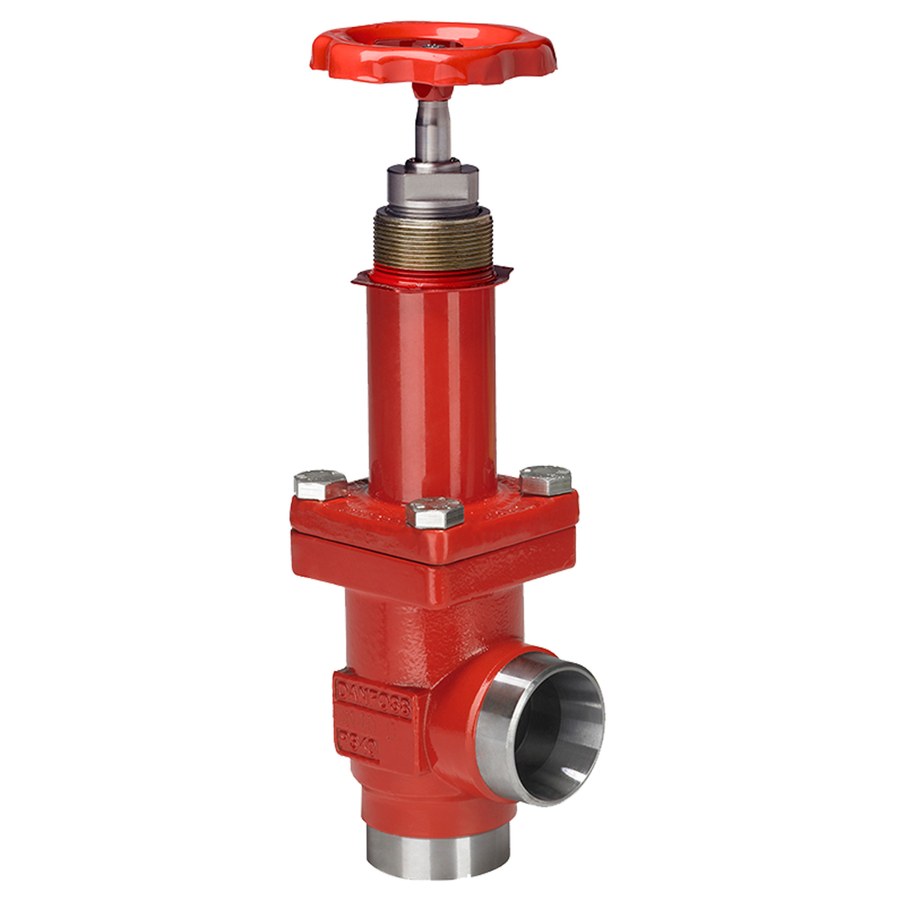

Danfoss SVA-L 15 angleway shut-off valve, butt weld ASME B 36.10M Schedule 80, hand wheel, 1/2 in (15 mm), 52 bar (code 148B5260)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L 15 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5260. SVA-L is the long-neck (extended bonnet) version of the Flexline stop valve, suited to thicker line insulation. This body carries butt weld inlet and outlet to ASME B 36.10M Schedule 80, size 1/2 in (15 mm) — a distinct connection variant from the other SVA-L 15 bodies. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 7 m3/h (Cv approx 8.1 gal/min). Operated with a hand wheel. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway body places inlet and outlet at 90 degrees.
Specifications
- Part number
- 148B5260
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1/2 in (15 mm)
Compatibility
Danfoss SVA-L Flexline shut-off valve, angleway ASME B 36.10M Schedule 80 variant. Select by nominal size (DN15), direction and operator (hand wheel). Butt-weld (EN / ASME), socket-weld and NPT bodies are separate codes and are not interchangeable — confirm the mating pipe connection before ordering. SVA-S is the standard-neck version; SVA-L is the long-neck version.
Approvals
