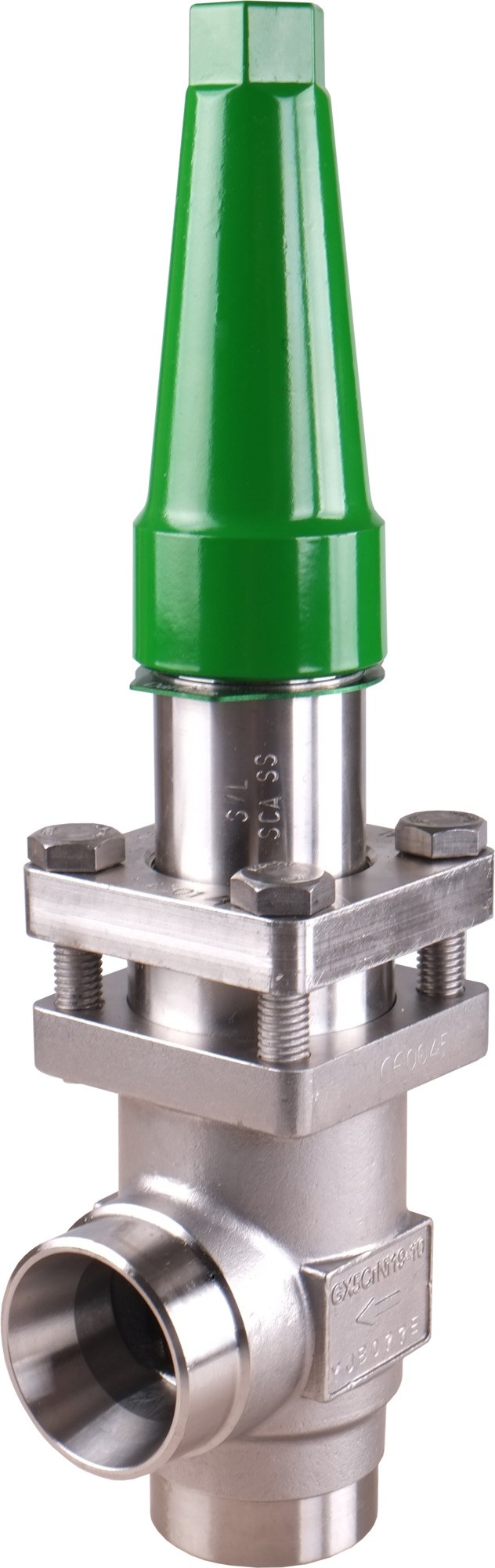

Danfoss SCA-X SS 20 angleway stainless steel stop-check valve, butt weld EN 10220, cap, 3/4 in (20 mm), 52 bar

Danfoss SCA-X SS 20 angleway stainless steel stop-check valve for industrial-refrigeration line service, code 148B5381. SCA-X combines a manual stop function with an integral check (non-return): it can be closed by hand for isolation and otherwise prevents reverse flow. This is the stainless-steel angleway body with butt-weld inlet and outlet to EN 10220, size 3/4 in (20 mm) — the first SCA-X SS 20 body in the catalog. Stainless steel housing for improved corrosion resistance on CO2 (R744) and ammonia (R717) duty. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 10 m3/h (Cv approx 11.6 gal/min). Cap operated. Angleway body places inlet and outlet at 90 degrees.

Type

SCA-X SS 20 (stainless steel stop-check valve)

Code number

148B5381

Series

SCA-X SS (Flexline stainless stop-check valves)

Function

Manual stop + integral check (reverse-flow prevention)

Nominal size

DN20 — 3/4 in (20 mm)

Direction

Angleway

Equipment

Cap

Flow direction

One-way (embossed arrow)

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

EN 10220

Connection size

3/4 in (20 mm)

Body material

Stainless steel

Connection material

Stainless steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

10 m3/h

Cv value (approx)

11.6 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

Art. 4, par. 3

Approvals

CE, UKCA

Net weight

1.752 kg

EAN

5702428842136

Size / Series

3/4 in (20 mm)

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
