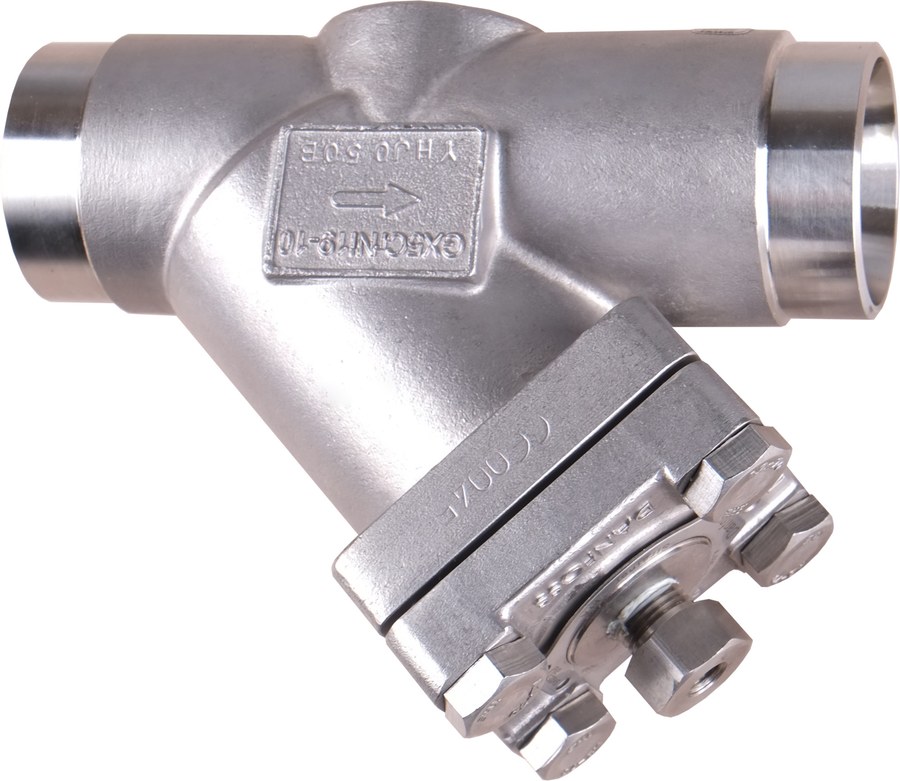

Danfoss FIA SS 15 straightway stainless steel strainer housing, butt weld EN 10220, 1/2 in (15 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 15 straightway stainless steel strainer (filter) housing for industrial-refrigeration line service, code 148B5296. The FIA housing takes a replaceable filter insert and removes particles from the refrigerant flow to protect downstream valves and controls. This is the stainless-steel straightway body with butt-weld inlet and outlet to EN 10220, size 1/2 in (15 mm) — the first FIA SS 15 body in the catalog. Stainless steel housing for improved corrosion resistance on CO2 (R744) and ammonia (R717) duty. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Supplied with cover. The filter insert is ordered separately by mesh/micron rating.
Technical Specifications
- Type
- FIA SS 15 (stainless steel strainer / filter housing)
- Code number
- 148B5296
- Series
- FIA SS (Flexline stainless strainers)
- Function
- In-line strainer housing (replaceable filter insert)
- Nominal size
- DN15 — 1/2 in (15 mm)
- Direction
- Straightway
- Equipment
- Cover
- Flow direction
- Embossed one-way arrow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 1/2 in (15 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value (by insert)
- 2.5 (100 micron plain) to 3.3 (150 micron pleated) m3/h
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- PED category
- Art. 4, par. 3
- RoHS (EU / China)
- Compliant
- Net weight
- 1.4 kg
- EAN
- 5702428841566
Standards & Compliance
- Size / Series
- 1/2 in (15 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss FIA SS Flexline stainless strainer housing, straightway EN 10220 butt-weld variant. Select by nominal size (DN15), direction and connection standard. The stainless SS body is a separate code from the carbon-steel FIA. Order the filter insert (mesh/micron) separately and confirm the mating pipe connection.
