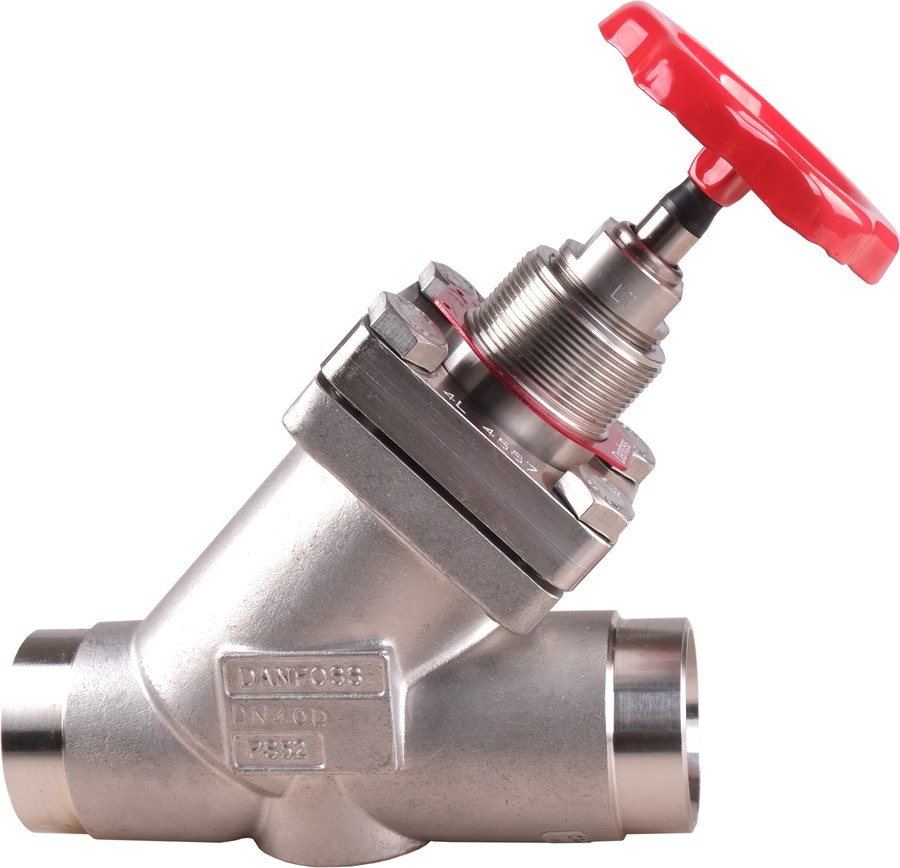

Danfoss SVA-S SS 25 straightway stainless steel shut-off valve, butt weld EN 10220, handwheel, 1 in (25 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 25 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5488. Size 1 in (25 mm), with butt weld inlet and outlet to EN 10220. Stainless steel body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 17.4 m3/h (Cv 20.18 gal/min). Straightway body places inlet and outlet in line. Operated with a handwheel. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5488.
Technical Specifications
- Type
- SVA-S SS 25 (shut-off / stop valve)
- Code number
- 148B5488
- Series
- SVL Flexline (SVA-S SS)
- Function
- Manual shut-off (stop) valve
- Nominal size
- DN25 — 1 in (25 mm)
- Direction
- Straightway
- Equipment
- Handwheel
- Neck
- Standard (SVA-S)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 1 in (25 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 17.4 m3/h
- Cv value
- 20.18 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Approvals
- PED category Art. 4, par. 3; EU/China RoHS compliant
- Net weight
- 3.4 kg
- EAN
- 5702428842297
Standards & Compliance
- Size / Series
- 1 in (25 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S SS SVL Flexline component. Select by nominal size (DN25 / 1 in (25 mm)), body direction (straightway), connection standard (EN 10220) and operator (handwheel). Confirm body material, connection standard and pipe schedule before ordering.
