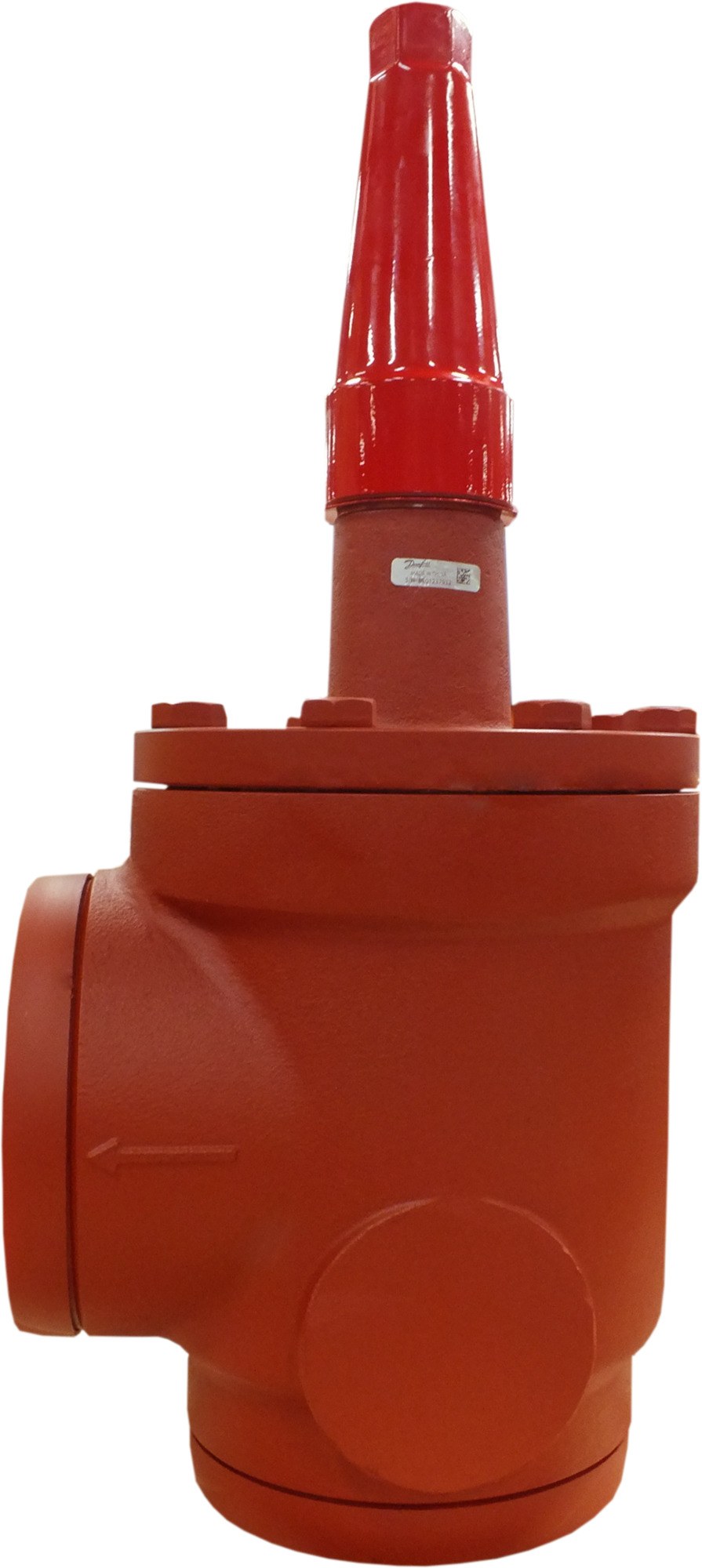

Danfoss SVA-S 80 angleway shut-off (stop) valve, 80 mm (3 in) butt weld ASME B 36.10M Schedule 40, cap, steel, 52 bar (code 148B5921)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 80 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5921. Size 3 in (80 mm), with butt weld inlet and outlet to ASME B 36.10M Schedule 40. Carbon-steel Flexline body for ammonia (R717), CO2 (R744) and HFC/HCFC refrigerant service. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 182 m3/h (Cv 211.12 gal/min). Angleway body places inlet and outlet at 90 degrees. Operated with a cap. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5921.
Specifications
- Part number
- 148B5921
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 3 in (80 mm)
Compatibility
Danfoss SVA-S SVL Flexline component. Select by nominal size (DN80 / 3 in (80 mm)), body direction (angleway), connection standard (ASME B 36.10M Schedule 40) and operator (cap). Confirm body material, connection standard and pipe schedule before ordering.
Approvals
