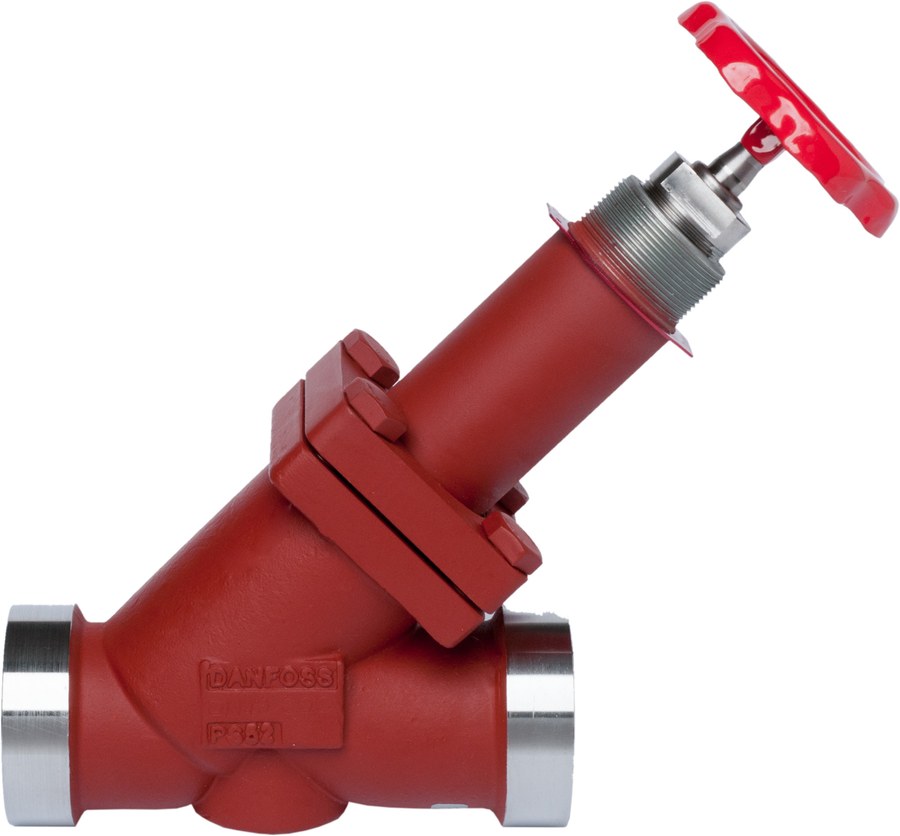

Danfoss SVA-L 25 straightway shut-off valve, npt ANSI/ASME B1.20.1, hand wheel, 1 in (25 mm), 52 bar (code 148B5474)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-L 25 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5474. SVA-L is the long-neck (extended bonnet) version of the Flexline stop valve, suited to thicker insulation. This body carries npt inlet and outlet to ANSI/ASME B1.20.1, size 1 in (25 mm), and is hand wheel operated. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 17.4 m3/h (Cv 20.1 gal/min). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway body places inlet and outlet in line.
Specifications
- Part number
- 148B5474
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1 in (25 mm)
Compatibility
Danfoss SVA-L Flexline shut-off valve, straightway ANSI/ASME B1.20.1 variant, hand wheel operated. Select by nominal size (1 in (25 mm)), direction, connection standard and operator. The EN 10220, ASME Sch80, socket-weld and NPT bodies are separate codes and are not interchangeable — confirm the mating pipe connection. SVA-S is standard-neck; SVA-L is long-neck.
Approvals
