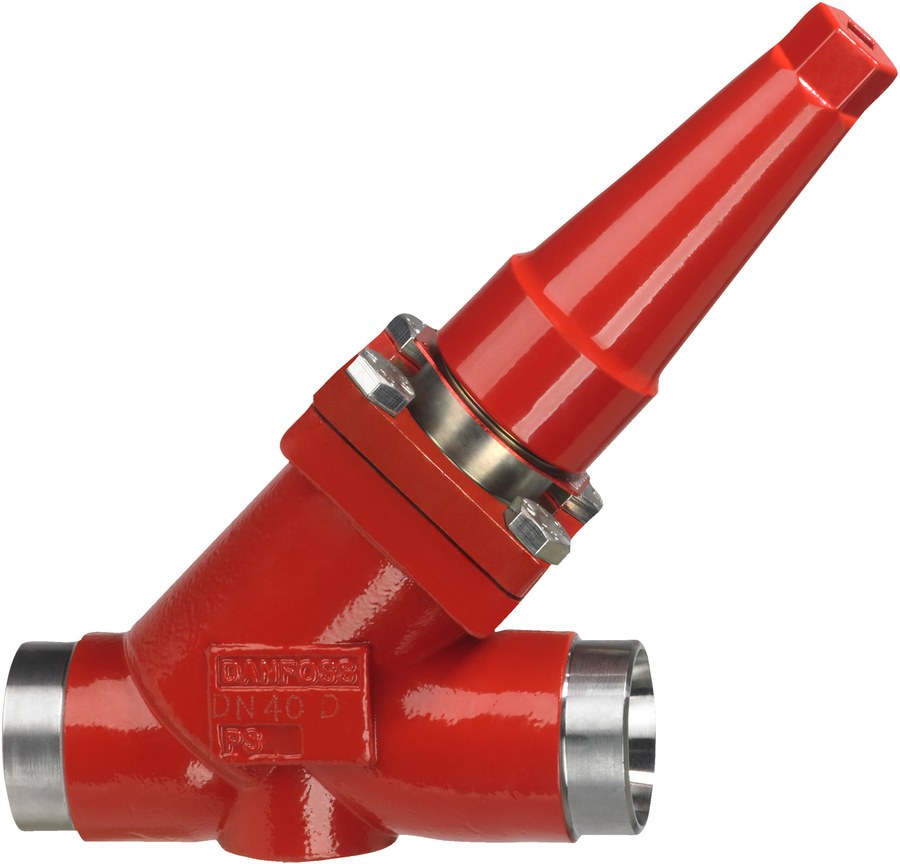

Danfoss SVA-S 32 straightway shut-off valve, butt weld EN 10220, cap, 32 mm (1 1/4 in), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 32 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5511. SVA-S is the standard-neck version of the Flexline stop valve. This body carries butt weld inlet and outlet to EN 10220, size 32 mm (1 1/4 in), and is cap operated — the cap variant of the straightway EN 10220 body. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 29.8 m3/h (Cv 34.6 gal/min). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway body has co-linear inlet and outlet.
Technical Specifications
- Type
- SVA-S 32 (Stop / shut-off valve)
- Code number
- 148B5511
- Series
- SVA-S / SVA-L (Flexline stop and shut-off valves)
- Function
- Manual shut-off (stop) valve
- Nominal size
- DN32 — 32 mm (1 1/4 in)
- Direction
- Straightway
- Equipment
- Cap
- Neck
- Standard (SVA-S)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 32 mm (1 1/4 in)
- Body material
- Steel
- Connection material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 29.8 m3/h
- Cv value
- 34.6 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- II (DN 32)
- Approvals
- CE, EAC (LLC CDC TYSK)
- Net weight
- 3.65 kg
- EAN
- 5702428467612
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S Flexline shut-off valve, straightway EN 10220 variant, cap operated. Select by nominal size (DN32 / 1 1/4 in), direction, connection standard and operator. The EN 10220, ASME Sch80, socket-weld and NPT bodies are separate codes and are not interchangeable — confirm the mating pipe connection. SVA-S is standard-neck; SVA-L is long-neck.
