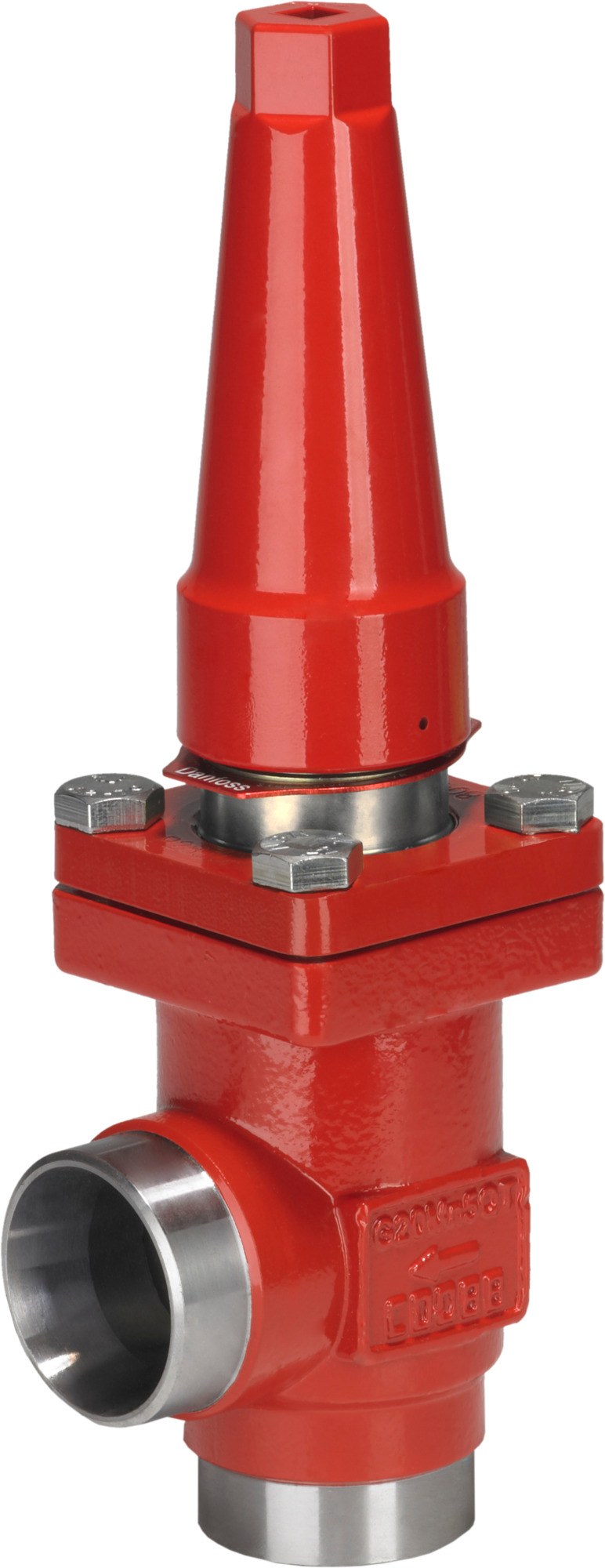

Danfoss SVA-S 32 angleway shut-off valve, socket weld ASME B 16.11, cap, 32 mm (1 1/4 in), 52 bar

Danfoss SVA-S 32 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5523. SVA-S is the standard-neck version of the Flexline stop valve. This body carries socket weld inlet and outlet to ASME B 16.11, size 32 mm (1 1/4 in), and is cap operated — the cap variant of the angleway ASME B 16.11 body. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 42.6 m3/h (Cv 49.2 gal/min). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Angleway body places inlet and outlet at 90 degrees.

Type

SVA-S 32 (Stop / shut-off valve)

Code number

148B5523

Series

SVA-S / SVA-L (Flexline stop and shut-off valves)

Function

Manual shut-off (stop) valve

Nominal size

DN32 — 32 mm (1 1/4 in)

Direction

Angleway

Equipment

Cap

Neck

Standard (SVA-S)

Flow direction

Bi-flow

Inlet connection type

Socket weld

Outlet connection type

Socket weld

Connection standard

ASME B 16.11

Connection size

32 mm (1 1/4 in)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

42.6 m3/h

Cv value

49.2 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

II (DN 32)

Approvals

CE, EAC (LLC CDC TYSK)

Net weight

2.18 kg

EAN

5702428466882

Standard

ASME B 16.11

Size / Series

32 mm

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.80
