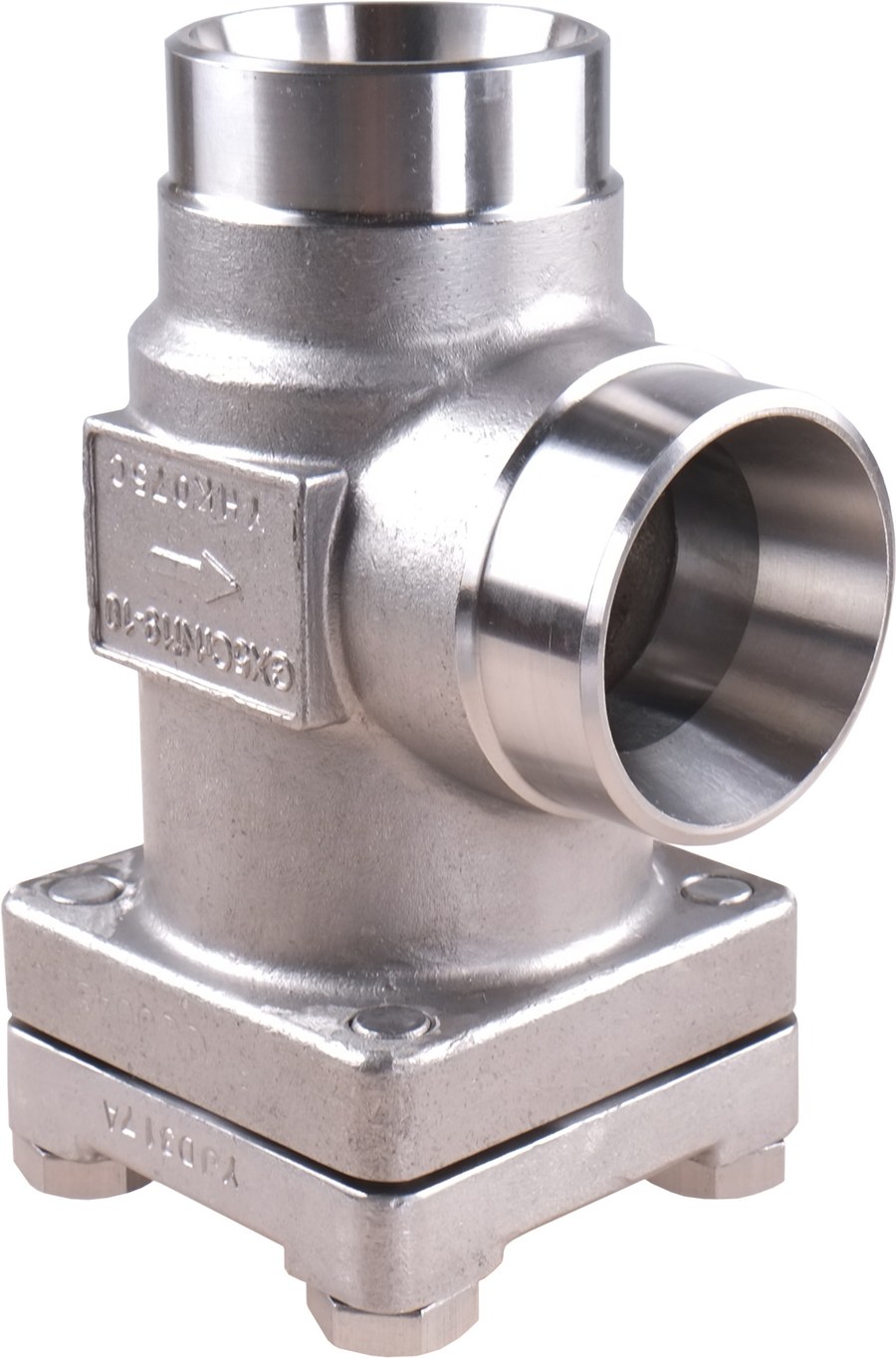

Danfoss FIA SS 15 angleway stainless steel strainer housing, 15 mm (1/2 in) EN 10220 butt weld, stainless steel, 52 bar, cover (code 148B5295)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 15 strainer (filter) housing for the SVL Flexline industrial-refrigeration range, store code 148B5295, angleway body. The FIA holds a replaceable strainer insert that protects downstream components from dirt and weld slag during commissioning and operation. The strainer insert is exchanged through a bolted cover. This code is nominal size 15 mm (1/2 in) with butt weld connections to EN 10220. Stainless steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). With the u100 plain insert the flow coefficient Kv is about 3.3 m3/h (Cv ~14.97 gal/min). The FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) is ordered separately. Specifications per Danfoss store code 148B5295.
Specifications
- Part number
- 148B5295
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 15 mm
Compatibility
Danfoss SVL Flexline FIA SS 15 strainer housing. Pair with a FIA INS strainer insert in the required micron rating (38/72/100/150/250/500, plain or pleated). Danfoss SVL Flexline FIA SS 15. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering.
Standards
- EN 10220
- PED 2014/68/EU Art. 4 par. 3
Approvals
