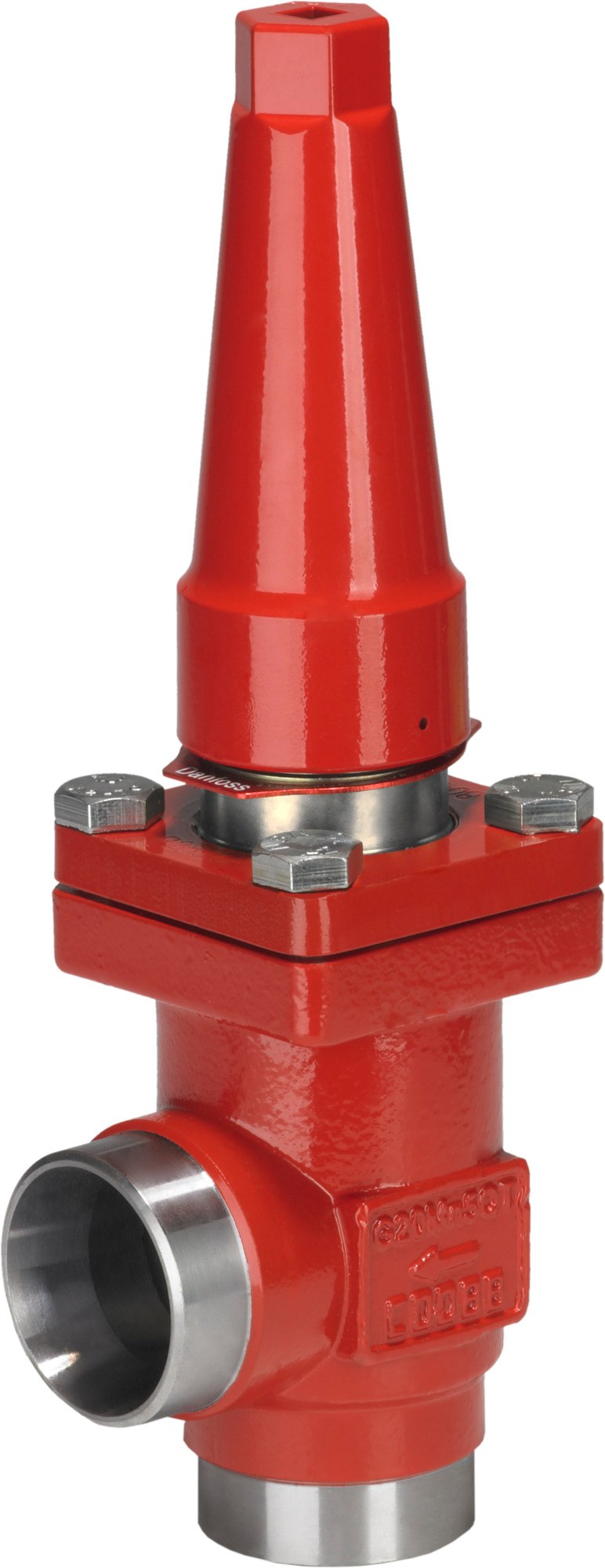

Danfoss SVA-S 25 angleway shut-off valve, 25 mm (1 in) ASME B 16.11 socket weld, steel, 52 bar, cap
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 25 shut-off (stop) valve from the SVL Flexline industrial-refrigeration range, store code 148B5423, angleway body. Used to isolate a line section for service or component exchange. Supplied with a seal cap in place of the handwheel for set-and-secure duty. Nominal size 25 mm (1 in) with socket weld connections to ASME B 16.11. Steel body for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 24.8 m3/h (Cv 28.77 gal/min). The SVA-S back-seating spindle allows the gland to be repacked under pressure. Specifications per Danfoss store code 148B5423.
Technical Specifications
- Type
- Shut-off valve, SVA-S 25 (SVL Flexline)
- Code number
- 148B5423
- Series
- SVA-S (SVL Flexline)
- Nominal size
- 25 mm (1 in)
- Flow pattern
- Angleway
- Connection
- socket weld (ASME B 16.11)
- Housing material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow coefficient Kv
- 24.8 m3/h (Cv 28.77 gal/min)
- Equipment
- cap
- Conformity assessment
- PED 2014/68/EU, Article 4 paragraph 3 (sound engineering practice) for DN <= 25
- Approvals
- CE, EAC
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428466769
- Net weight
- 2.85 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Steel
- Connection standard
- ASME B 16.11
- Cv value [gal/min]
- 28.77 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 in
- Inlet connection size [mm]
- 25 mm
- Inlet connection type
- Socket weld
- Kv value [m³/h]
- 24.8 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1 in
- Outlet connection size [mm]
- 25 mm
- Outlet connection type
- Socket weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 16.11
- Size / Series
- 25 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S 25. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering.
