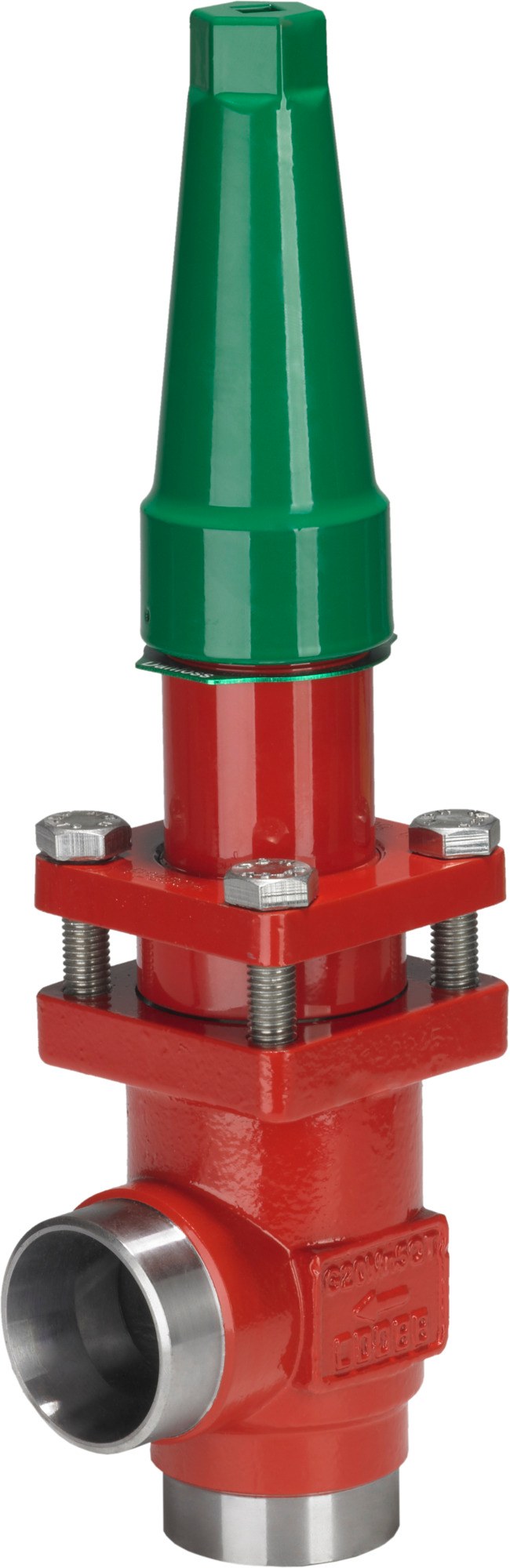

Danfoss SCA-X 32 angleway stop/check valve, 32 mm (1 1/4 in) EN 10220 butt weld, steel, 52 bar, cap
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 32 stop/check valve from the SVL Flexline industrial-refrigeration range, store code 148B5508, angleway body. Combines a manually operated shut-off function with a check (non-return) function in one body; closing the spindle isolates the line while the check disc prevents reverse flow when the valve is open. Supplied with a seal cap in place of the handwheel for set-and-secure duty. Nominal size 32 mm (1 1/4 in) with butt weld connections to EN 10220. Steel body for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 30 m3/h (Cv 34.8 gal/min). Specifications per Danfoss store code 148B5508.
Technical Specifications
- Type
- Stop/check valve, SCA-X 32 (SVL Flexline)
- Code number
- 148B5508
- Series
- SCA-X (SVL Flexline)
- Nominal size
- 32 mm (1 1/4 in)
- Flow pattern
- Angleway
- Connection
- butt weld (EN 10220)
- Housing material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow coefficient Kv
- 30 m3/h (Cv 34.8 gal/min)
- Equipment
- cap
- Conformity assessment
- PED 2014/68/EU, Category II (DN 32)
- Approvals
- CE
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428472913
- Net weight
- 3.5 Kilogram
- Product group
- Check valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D26:32)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 34.8 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 30 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.62 psi
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 32 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline SCA-X 32. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering.
