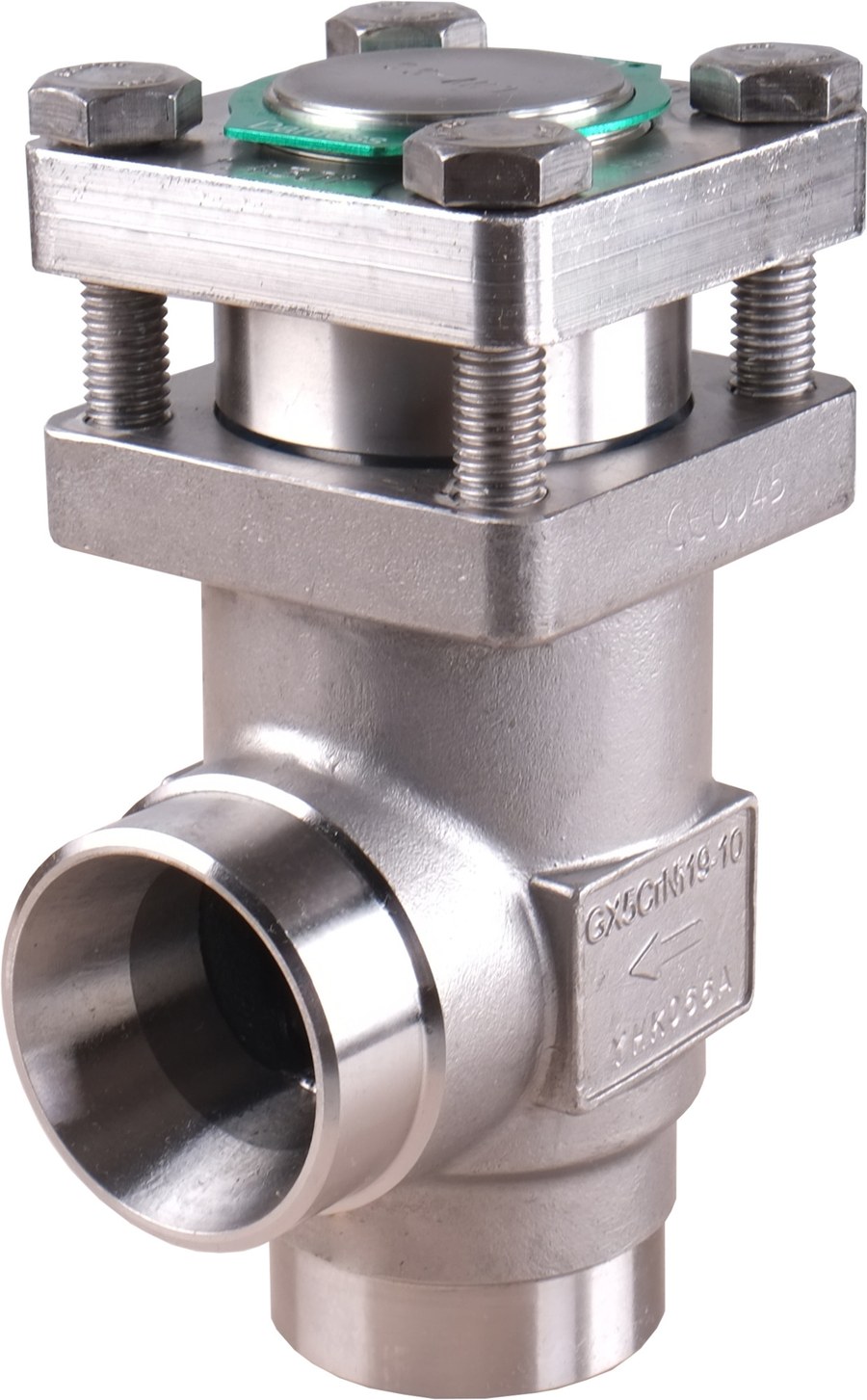

Danfoss CHV-X SS 20 angleway stainless steel check valve, 20 mm (3/4 in) EN 10220 butt weld, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X SS 20 check valve from the SVL Flexline industrial-refrigeration range, store code 148B5382, angleway body. Permits flow in one direction and closes to prevent reverse flow, with an embossed one-way arrow marking the direction. Nominal size 20 mm (3/4 in) with butt weld connections to EN 10220. Stainless steel body for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 10 m3/h (Cv 11.6 gal/min). Specifications per Danfoss store code 148B5382.
Technical Specifications
- Type
- Check valve, CHV-X SS 20 (SVL Flexline)
- Code number
- 148B5382
- Series
- CHV-X SS (SVL Flexline)
- Nominal size
- 20 mm (3/4 in)
- Flow pattern
- Angleway
- Connection
- butt weld (EN 10220)
- Housing material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow coefficient Kv
- 10 m3/h (Cv 11.6 gal/min)
- Equipment
- valve body (function top ordered per configuration)
- Conformity assessment
- PED 2014/68/EU, Article 4 paragraph 3 (sound engineering practice) for DN <= 25
- Approvals
- CE, UKCA
- Compliance
- EU RoHS, China RoHS
- EAN
- 5702428842204
- Net weight
- 1.28 Kilogram
- Product group
- Check valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D23:20)
- Connection material
- Stainless steel
- Connection size [in]
- 3/4 in
- Connection size [mm]
- 20 mm
- Connection standard
- EN 10220
- Connection type
- Butt weld
- Cv value [gal/min]
- 11.6 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Kv value [m³/h]
- 10 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.62 psi
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 20 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline CHV-X SS 20. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size. EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering.
