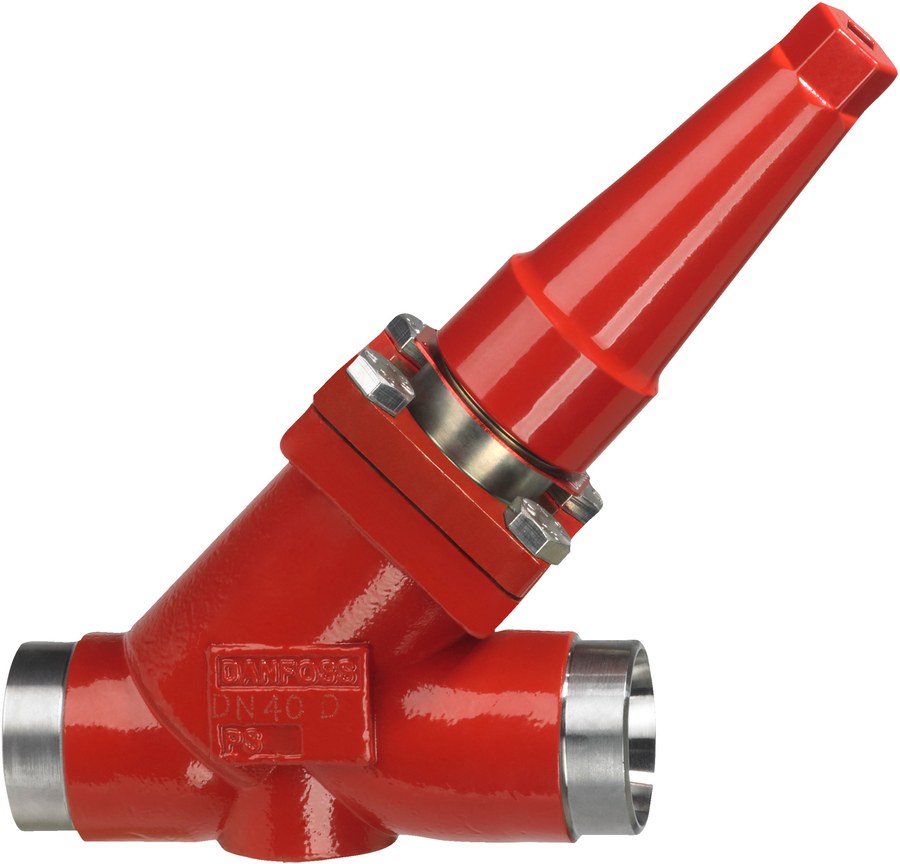

Danfoss SVA-S 32 straightway shut-off valve, butt weld ASME B 36.10M Schedule 80, cap, 32 mm (1 1/4 in), 52 bar (code 148B5531)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 32 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5531. SVA-S is the standard-neck version of the Flexline stop valve. This body carries butt weld inlet and outlet to ASME B 36.10M Schedule 80, size 32 mm (1 1/4 in), and is cap operated — the cap variant of the straightway ASME B 36.10M Schedule 80 body. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 29.8 m3/h (Cv 34.6 gal/min). Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway body has co-linear inlet and outlet.
Specifications
- Part number
- 148B5531
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 80
- Standard size
- 32 mm
Compatibility
Danfoss SVA-S Flexline shut-off valve, straightway ASME B 36.10M Schedule 80 variant, cap operated. Select by nominal size (DN32 / 1 1/4 in), direction, connection standard and operator. The EN 10220, ASME Sch80, socket-weld and NPT bodies are separate codes and are not interchangeable — confirm the mating pipe connection. SVA-S is standard-neck; SVA-L is long-neck.
Approvals
