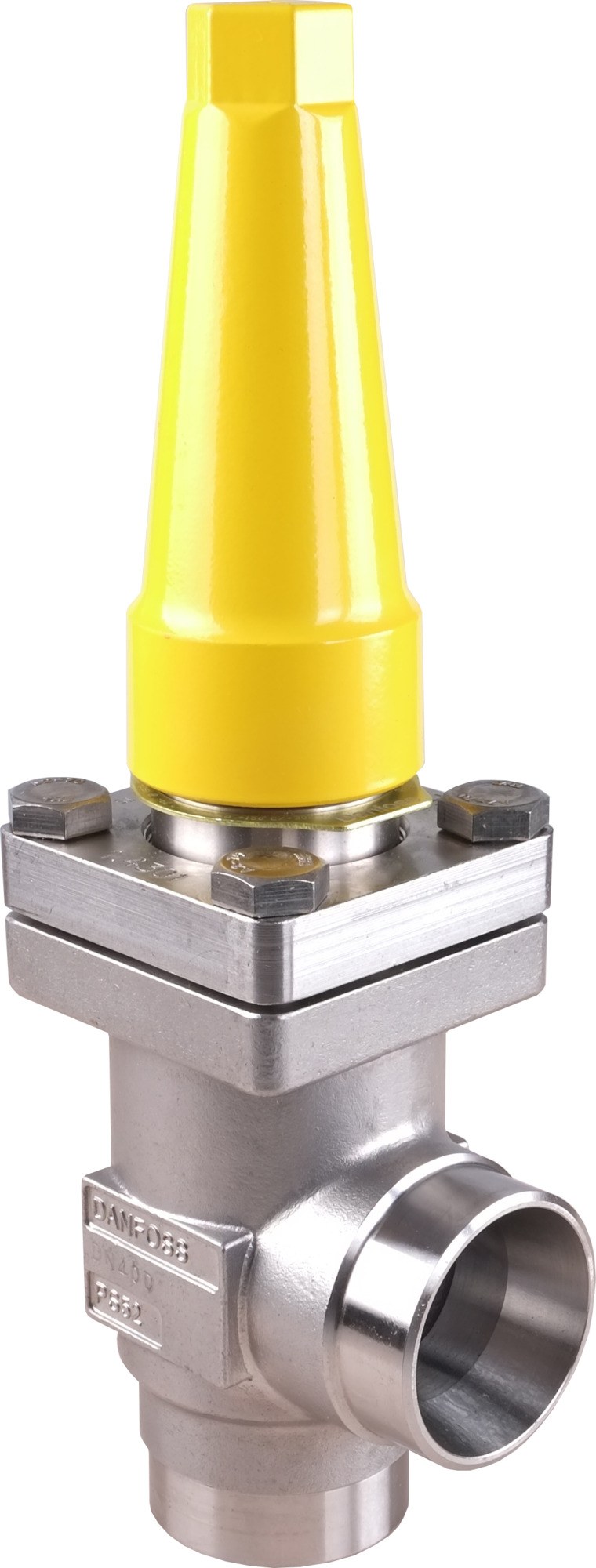

Danfoss REG-SA SS HL 20 hand-operated regulating valve, 20 mm (3/4 in) butt weld EN 10220, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SA SS HL 20 hand-operated regulating valve for industrial-refrigeration line service, code 148B5942. Size 3/4 in (20 mm), with butt weld inlet and outlet to EN 10220. Stainless steel body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 1.5 m3/h (Cv 1.75 gal/min). Angleway body places inlet and outlet at 90 degrees. Operated with a cap. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5942.
Technical Specifications
- Type
- REG-SA SS HL 20 (hand-operated regulating valve)
- Code number
- 148B5942
- Series
- SVL Flexline (REG-SA SS HL)
- Function
- Manual regulating (shut-off and throttling)
- Nominal size
- DN20 — 3/4 in (20 mm)
- Direction
- Angleway
- Equipment
- Cap
- Neck
- Standard (REG-SA SS HL)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 3/4 in (20 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 1.5 m3/h
- Cv value
- 1.75 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- Approvals
- EAC; PED category Art. 4, par. 3; EU/China RoHS compliant
- Net weight
- 1.577 kg
- EAN
- 5702424538750
Standards & Compliance
- Size / Series
- 3/4 in (20 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss REG-SA SS HL SVL Flexline component. Select by nominal size (DN20 / 3/4 in (20 mm)), body direction (angleway), connection standard (EN 10220) and operator (cap). Confirm body material, connection standard and pipe schedule before ordering.
