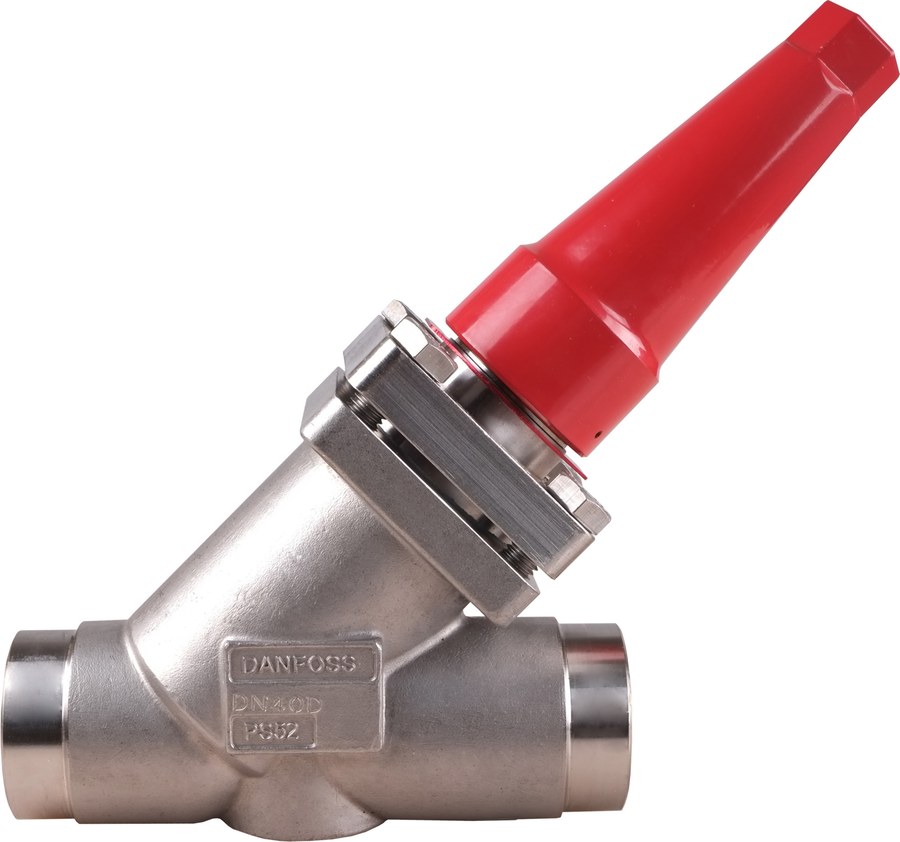

Danfoss SVA-S SS 25 straightway stainless steel shut-off valve, butt weld EN 10220, cap, 1 in (25 mm), 52 bar (code 148B5489)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 25 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5489. Size 1 in (25 mm), with butt weld inlet and outlet to EN 10220. Stainless steel body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 17.4 m3/h (Cv 20.18 gal/min). Straightway body places inlet and outlet in line. Operated with a cap. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5489.
Specifications
- Part number
- 148B5489
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1 in (25 mm)
Compatibility
Danfoss SVA-S SS SVL Flexline component. Select by nominal size (DN25 / 1 in (25 mm)), body direction (straightway), connection standard (EN 10220) and operator (cap). Confirm body material, connection standard and pipe schedule before ordering.
