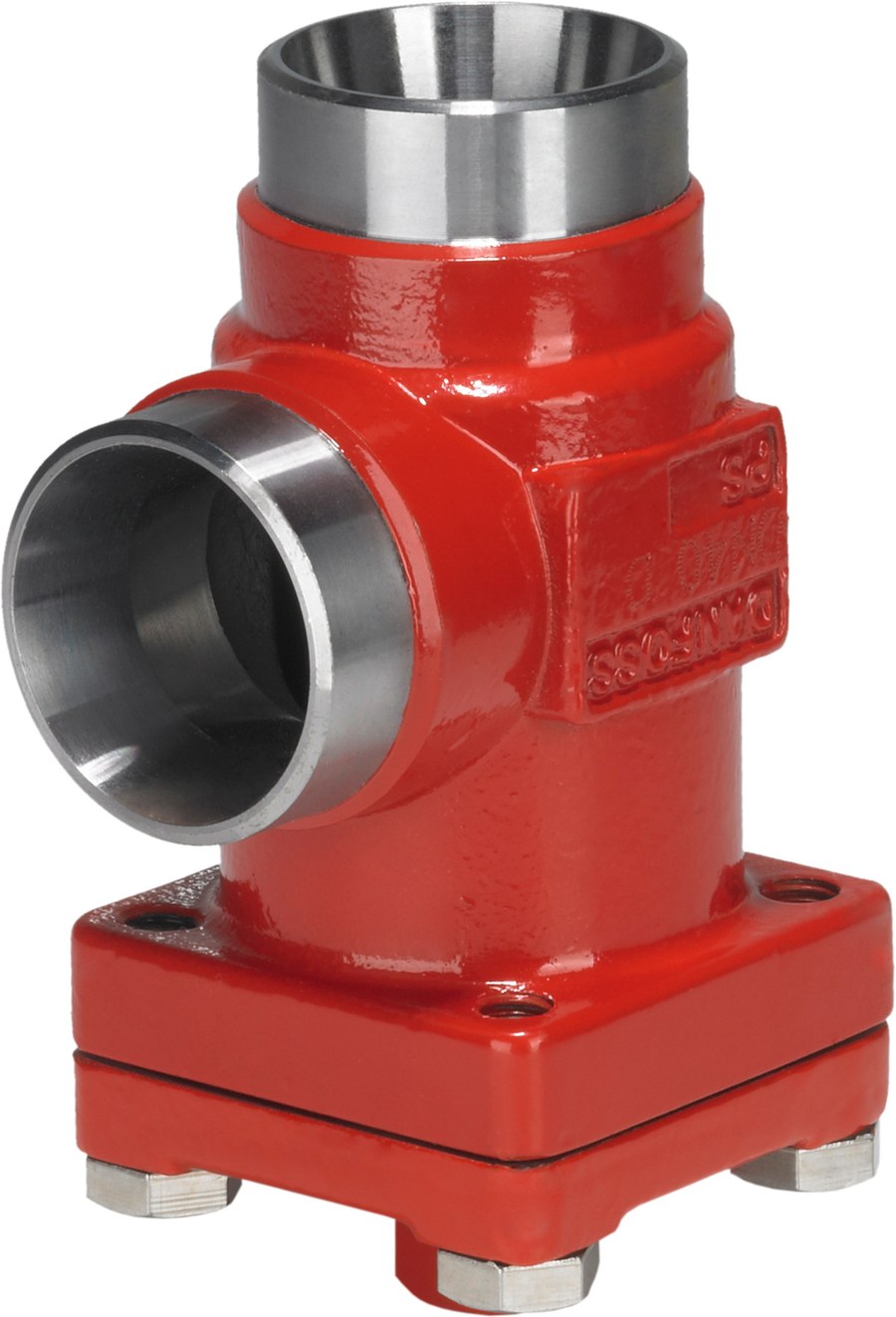

Danfoss FIA 65 angleway strainer housing, 65 mm (2 1/2 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar

Danfoss FIA 65 strainer (filter) housing for industrial-refrigeration line service, code 148B5814. Size 2 1/2 in (65 mm), with butt weld inlet and outlet to ASME B 36.10M Schedule 40. Carbon-steel Flexline body for ammonia (R717), CO2 (R744) and HFC/HCFC refrigerant service. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Angleway body places inlet and outlet at 90 degrees. Bolted cover gives access to the filter insert for cleaning. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5814.

Type

FIA 65 (strainer / filter housing)

Code number

148B5814

Series

SVL Flexline (FIA)

Function

In-line strainer (filter housing)

Nominal size

DN65 — 2 1/2 in (65 mm)

Direction

Angleway

Equipment

Bolted cover

Flow direction

Bi-flow

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

ASME B 36.10M Schedule 40

Connection size

2 1/2 in (65 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

56.1 m3/h (varies with filter micron rating / insert type)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Approvals

CE; PED category II

Net weight

3.9 kg

EAN

5702428475310

Size / Series

2 1/2 in (65 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
