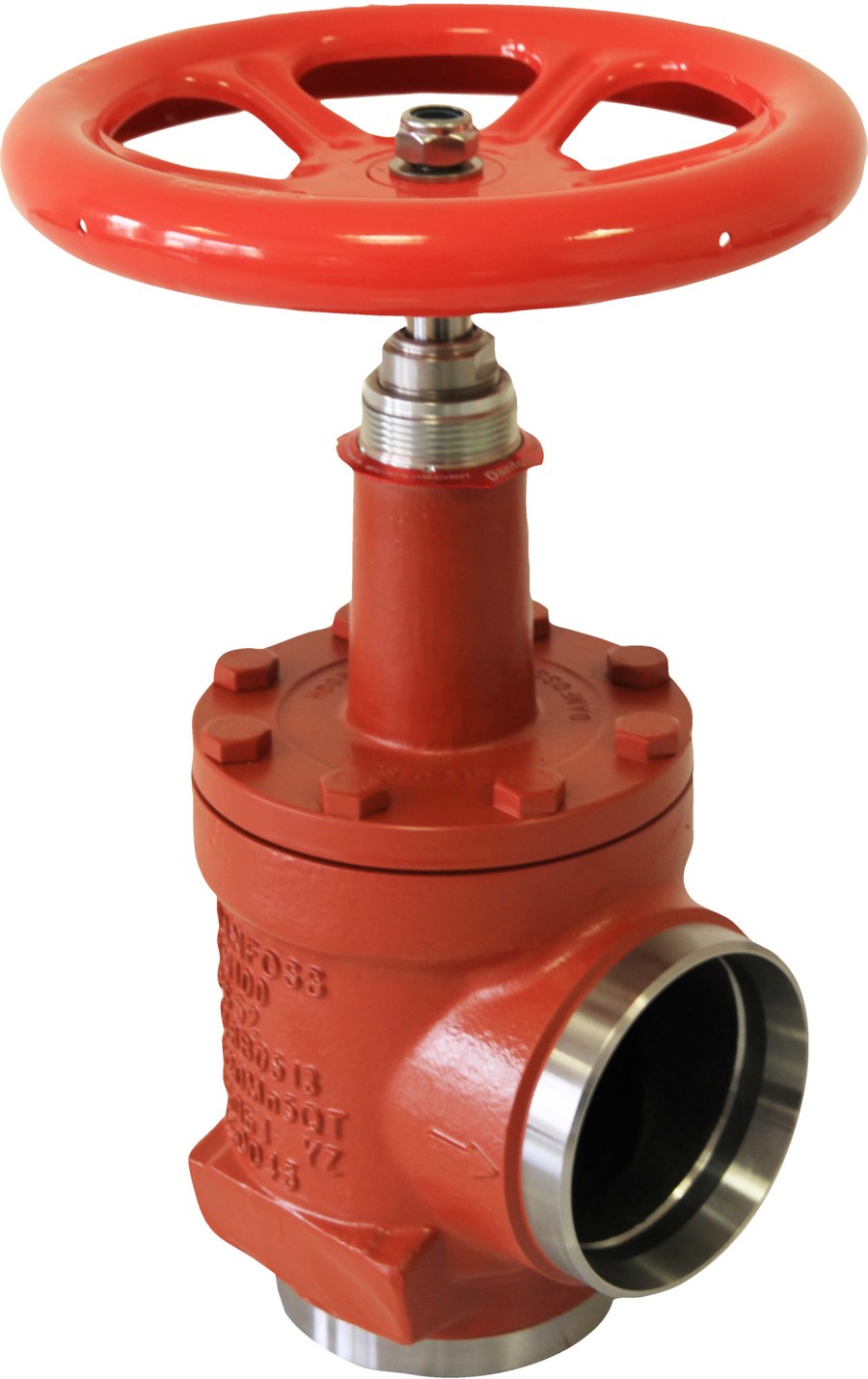

Danfoss SVA-S 80 angleway shut-off (stop) valve, 80 mm (3 in) butt weld ASME B 36.10M Schedule 40, handwheel, steel, 52 bar

Danfoss SVA-S 80 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5920. Size 3 in (80 mm), with butt weld inlet and outlet to ASME B 36.10M Schedule 40. Carbon-steel Flexline body for ammonia (R717), CO2 (R744) and HFC/HCFC refrigerant service. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 182 m3/h (Cv 211.12 gal/min). Angleway body places inlet and outlet at 90 degrees. Operated with a handwheel. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5920.

Type

SVA-S 80 (shut-off / stop valve)

Code number

148B5920

Series

SVL Flexline (SVA-S)

Function

Manual shut-off (stop) valve

Nominal size

DN80 — 3 in (80 mm)

Direction

Angleway

Equipment

Handwheel

Neck

Standard (SVA-S)

Flow direction

Bi-flow

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

ASME B 36.10M Schedule 40

Connection size

3 in (80 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

182 m3/h

Cv value

211.12 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

Approvals

CE, EAC; PED category II

Net weight

10.7 kg

EAN

5702428468312

Size / Series

3 in (80 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.80
