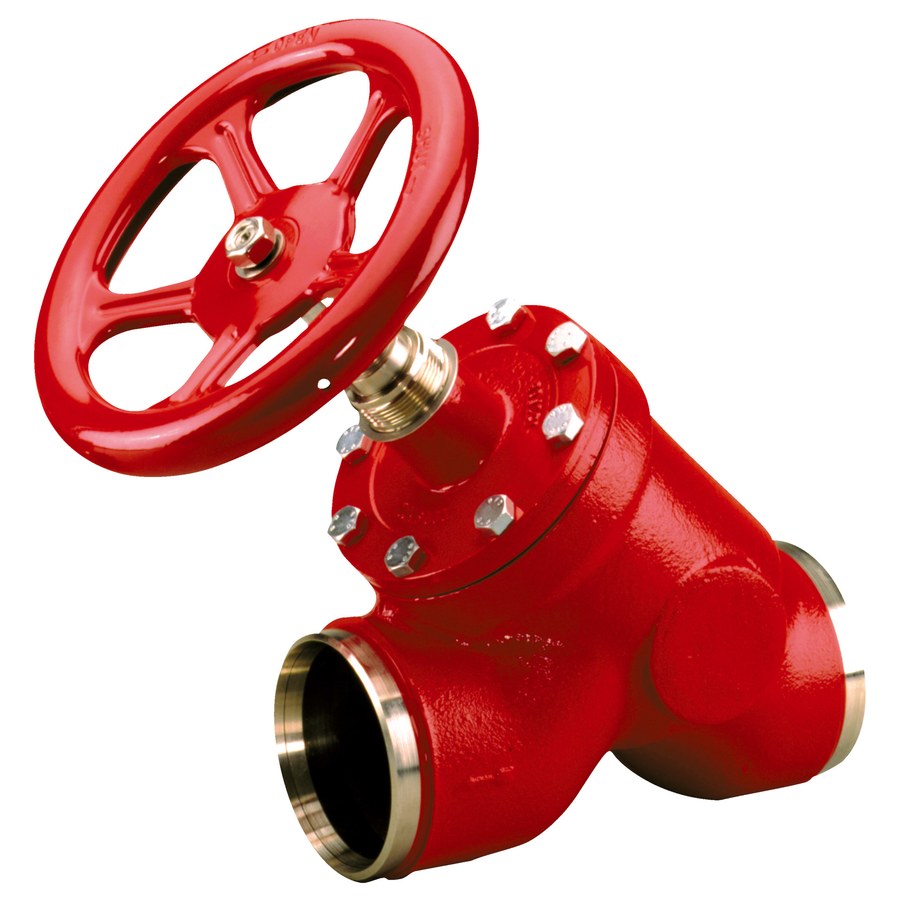

Danfoss SVA-S 80 straightway shut-off (stop) valve, 80 mm (3 in) butt weld EN 10220, handwheel, steel, 52 bar (code 148B5910)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 80 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5910. Size 3 in (80 mm), with butt weld inlet and outlet to EN 10220. Carbon-steel Flexline body for ammonia (R717), CO2 (R744) and HFC/HCFC refrigerant service. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 152 m3/h (Cv 176.32 gal/min). Straightway body places inlet and outlet in line. Operated with a handwheel. Part of the Danfoss SVL Flexline program; specifications per Danfoss store code 148B5910.
Specifications
- Part number
- 148B5910
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 3 in (80 mm)
Compatibility
Danfoss SVA-S SVL Flexline component. Select by nominal size (DN80 / 3 in (80 mm)), body direction (straightway), connection standard (EN 10220) and operator (handwheel). Confirm body material, connection standard and pipe schedule before ordering.
Approvals
