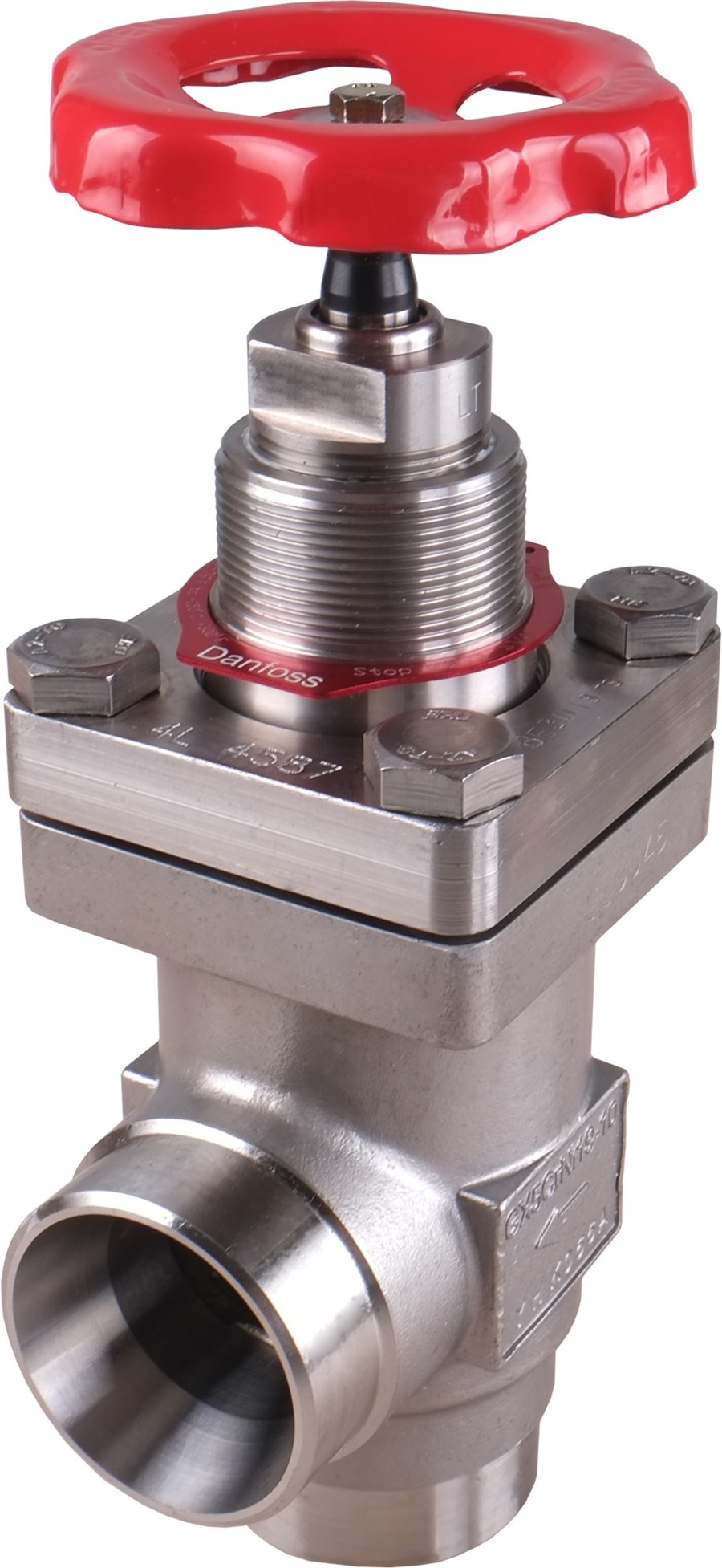

Danfoss SVA-S SS 15 angleway stainless steel shut-off valve, butt weld EN 10220, hand wheel, 1/2 in (15 mm), 52 bar (code 148B5289)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 15 angleway stainless steel shut-off (stop) valve for industrial-refrigeration line service, code 148B5289. This is the stainless-steel (SS) standard-neck version of the Flexline stop valve, size 1/2 in (15 mm), with butt-weld inlet and outlet to EN 10220 — distinct from the carbon-steel SVA-S and the long-neck SVA-L SS bodies. Stainless steel body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 7 m3/h (Cv approx 8.1 gal/min). Operated with a hand wheel. Angleway body places inlet and outlet at 90 degrees.
Specifications
- Part number
- 148B5289
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 1/2 in (15 mm)
Compatibility
Danfoss SVA-S SS Flexline stainless steel shut-off valve. Select by nominal size (DN15), body direction (angleway) and operator (hand wheel). The stainless SS body is a separate code from the carbon-steel SVA-S; SVA-S is standard-neck and SVA-L is long-neck — confirm body material, neck length and pipe connection before ordering.
Approvals
