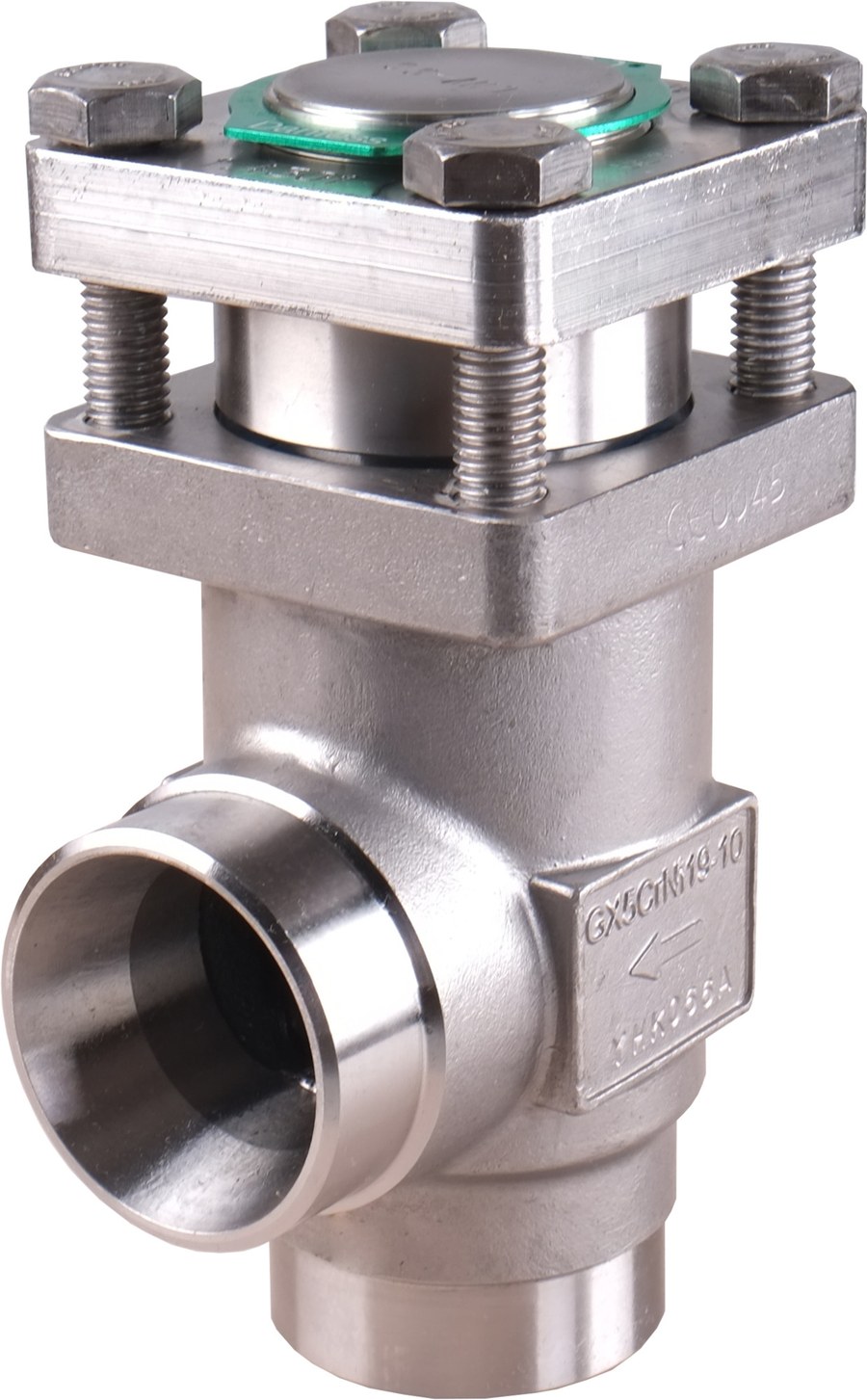

Danfoss CHV-X SS 15 angleway stainless steel check valve, butt weld EN 10220, 1/2 in (15 mm), 52 bar

Danfoss CHV-X SS 15 angleway stainless steel check (non-return) valve for industrial-refrigeration line service, code 148B5294. CHV-X prevents reverse flow, protecting compressors and pumps. This is the stainless-steel angleway body with butt-weld inlet and outlet to EN 10220, size 1/2 in (15 mm) — distinct from the straightway CHV-X SS 15 (148B5678). Stainless steel housing for improved corrosion resistance on CO2 (R744) and ammonia (R717) duty. One-way check; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 8 m3/h (Cv approx 9.3 gal/min). Angleway body places inlet and outlet at 90 degrees.

Type

CHV-X SS 15 (stainless steel check / non-return valve)

Code number

148B5294

Series

CHV-X SS (Flexline stainless check valves)

Function

One-way check (reverse-flow prevention)

Nominal size

DN15 — 1/2 in (15 mm)

Direction

Angleway

Flow direction

One-way (embossed arrow)

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

EN 10220

Connection size

1/2 in (15 mm)

Body material

Stainless steel

Connection material

Stainless steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

8 m3/h

Cv value (approx)

9.3 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

Art. 4, par. 3

Approvals

CE, UKCA

Net weight

1.31 kg

EAN

5702428841528

Size / Series

1/2 in (15 mm)

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
