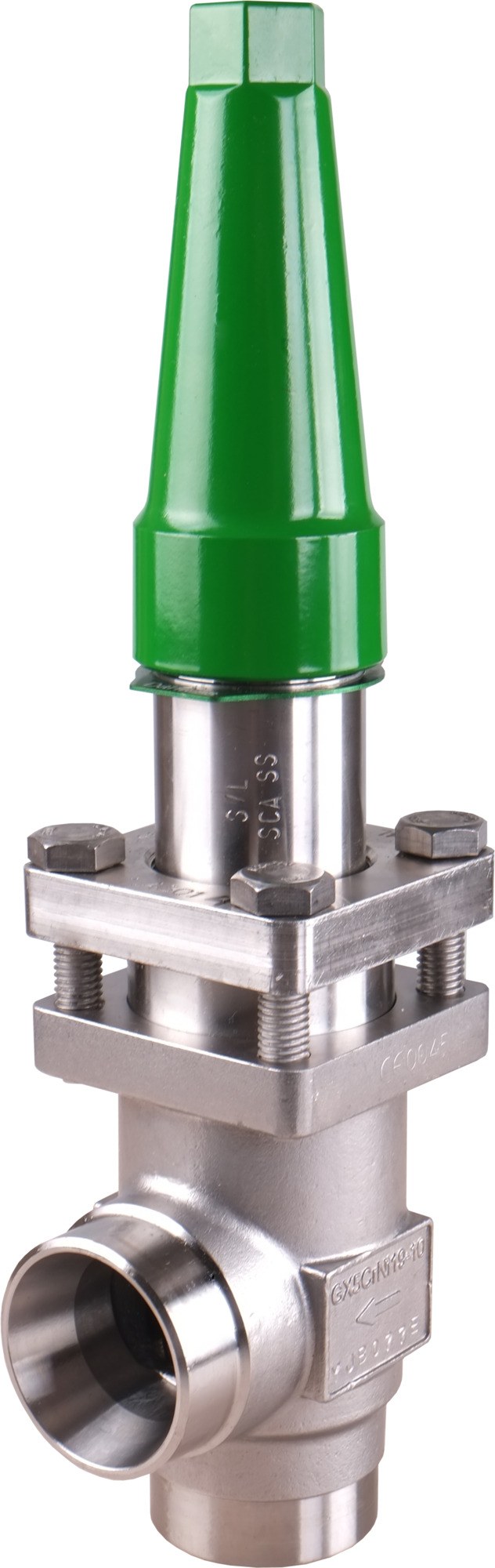

Danfoss SCA-X SS 15 angleway stainless steel stop-check valve, butt weld, cap, 1/2 in (15 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X SS 15 angleway stainless-steel stop-check valve for industrial-refrigeration line service, code 148B5293. Stainless-steel (SS) version of the Flexline SCA-X combined stop and check valve, size 1/2 in (15 mm), with butt-weld inlet and outlet to EN 10220 in an angleway (90-degree) body, cap operated. Combines a manual shut-off with a spring-loaded non-return (check) function, so a single valve both isolates and prevents reverse flow. Embossed 1-way flow arrow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 8 m3/h (Cv 9.3 gal/min). Stainless body suits CO2 (R744) and ammonia (R717) duty.
Technical Specifications
- Type
- SCA-X SS 15 (stainless steel stop / check valve)
- Code number
- 148B5293
- Series
- SCA-X SS (Flexline stainless stop-check valves)
- Function
- Stop check valve
- Nominal size
- 1/2 in (15 mm)
- Direction
- Angleway
- Equipment
- Cap
- Flow direction
- Embossed 1-way arrow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 1/2 in (15 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 8 m3/h
- Cv value
- 9.3 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- Art. 4, par. 3
- Approvals
- CE, EAC
- Net weight
- 1.7 kg
- EAN
- 5702428841511
Standards & Compliance
- Size / Series
- 1/2 in (15 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SCA-X SS Flexline stainless stop-check valve. Select by nominal size (DN15 / 1/2 in), body direction (angleway) and operator (cap). Install with the embossed arrow in the flow direction. The stainless SS body is a separate code from the carbon-steel SCA-X - confirm body material and pipe connection before ordering.
