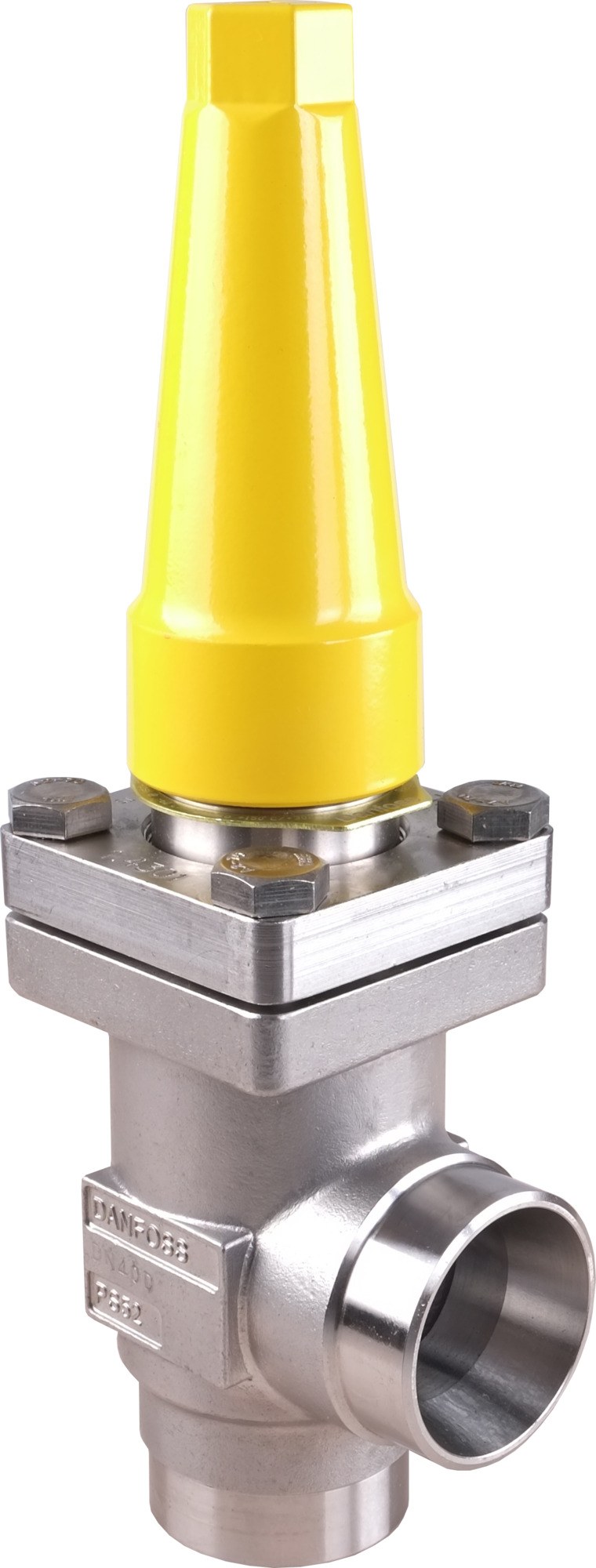

Danfoss REG-SB SS 20 angleway stainless steel hand regulating valve, butt weld, cap, 3/4 in (20 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss REG-SB SS 20 angleway stainless-steel hand-operated regulating (throttle) valve for industrial-refrigeration line service, code 148B5389. Stainless-steel (SS) version of the Flexline REG-SB regulating valve, size 3/4 in (20 mm), with butt-weld inlet and outlet to EN 10220 in an angleway (90-degree) body, cap operated - the angleway counterpart of the straightway REG-SB SS 20 (148B5390). Provides fine manual flow regulation with a graduated spindle. Embossed 1-way flow arrow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 5 m3/h (Cv 5.8 gal/min). Stainless body suits CO2 (R744) and ammonia (R717) duty.
Technical Specifications
- Type
- REG-SB SS 20 (stainless steel hand regulating valve)
- Code number
- 148B5389
- Series
- REG-SA / REG-SB (Flexline hand regulating valves)
- Function
- Hand-operated regulating (throttle) valve
- Nominal size
- 3/4 in (20 mm)
- Direction
- Angleway
- Equipment
- Cap
- Neck
- Standard
- Flow direction
- Embossed 1-way arrow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 3/4 in (20 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 5 m3/h
- Cv value
- 5.8 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- Art. 4, par. 3
- Approvals
- CE, EAC
- Net weight
- 1.568 kg
- EAN
- 5702428842259
Standards & Compliance
- Size / Series
- 3/4 in (20 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss REG-SB SS Flexline stainless hand regulating valve. Select by nominal size (DN20 / 3/4 in), body direction (angleway) and operator (cap). REG-SB is the fixed-orifice regulating body; the stainless SS body is a separate code from the carbon-steel REG. Install with the embossed arrow in the flow direction; confirm body material and pipe connection before ordering.
