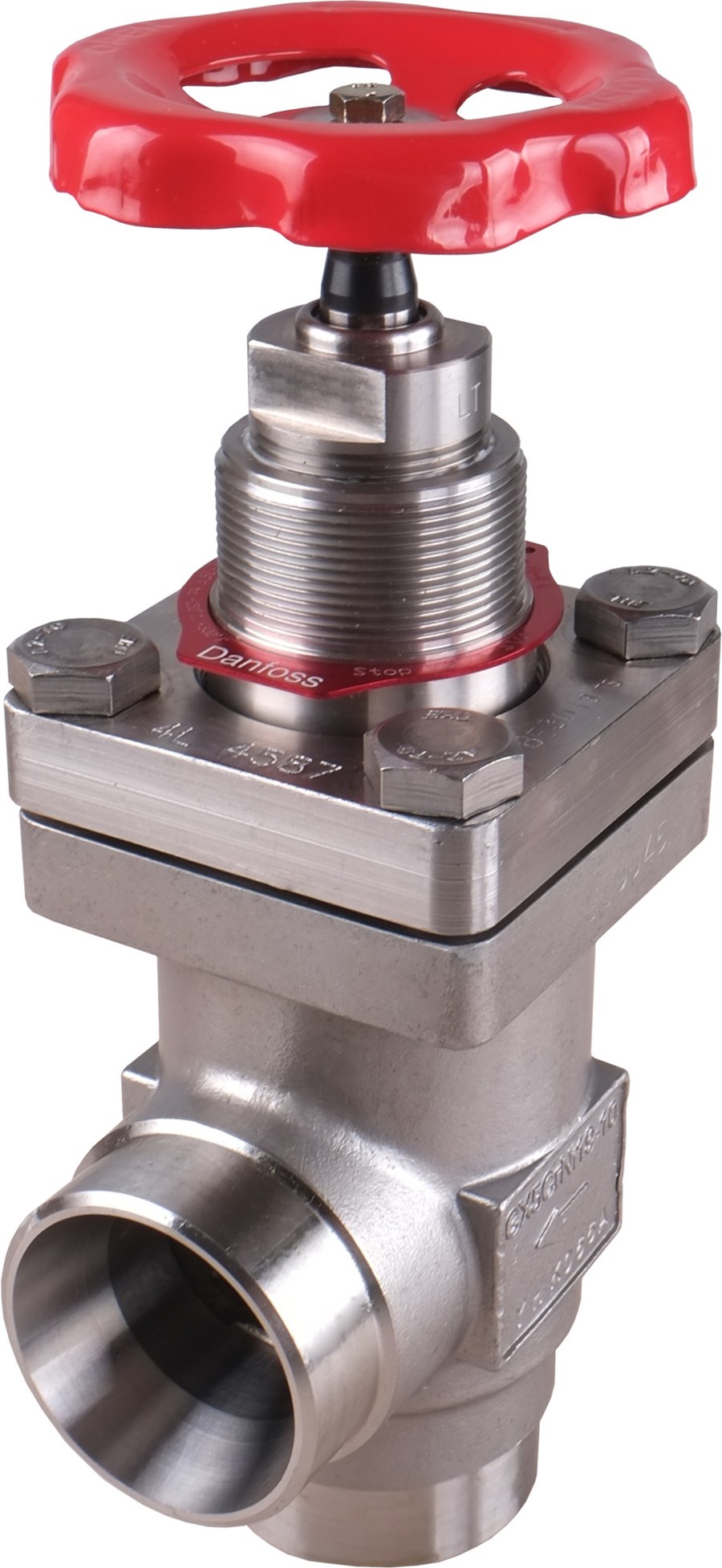

Danfoss SVA-S SS 20 angleway stainless steel shut-off valve, butt weld, handwheel, 3/4 in (20 mm), 52 bar (code 148B5377)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 20 angleway stainless-steel shut-off (stop) valve for industrial-refrigeration line service, code 148B5377. Stainless-steel (SS) short-neck version of the Flexline stop valve, size 3/4 in (20 mm), with butt-weld inlet and outlet to EN 10220 in an angleway (90-degree) body, handwheel operated. Stainless body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 14.6 m3/h (Cv 16.93 gal/min).
Specifications
- Part number
- 148B5377
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 3/4 in (20 mm)
Compatibility
Danfoss SVA-S SS Flexline stainless steel shut-off valve. Select by nominal size (DN20 / 3/4 in), body direction (angleway) and operator (handwheel). The stainless SS body is a separate code from the carbon-steel SVA-S; SVA-S is standard-neck and SVA-L is long-neck - confirm body material, neck length and pipe connection before ordering.
Approvals
