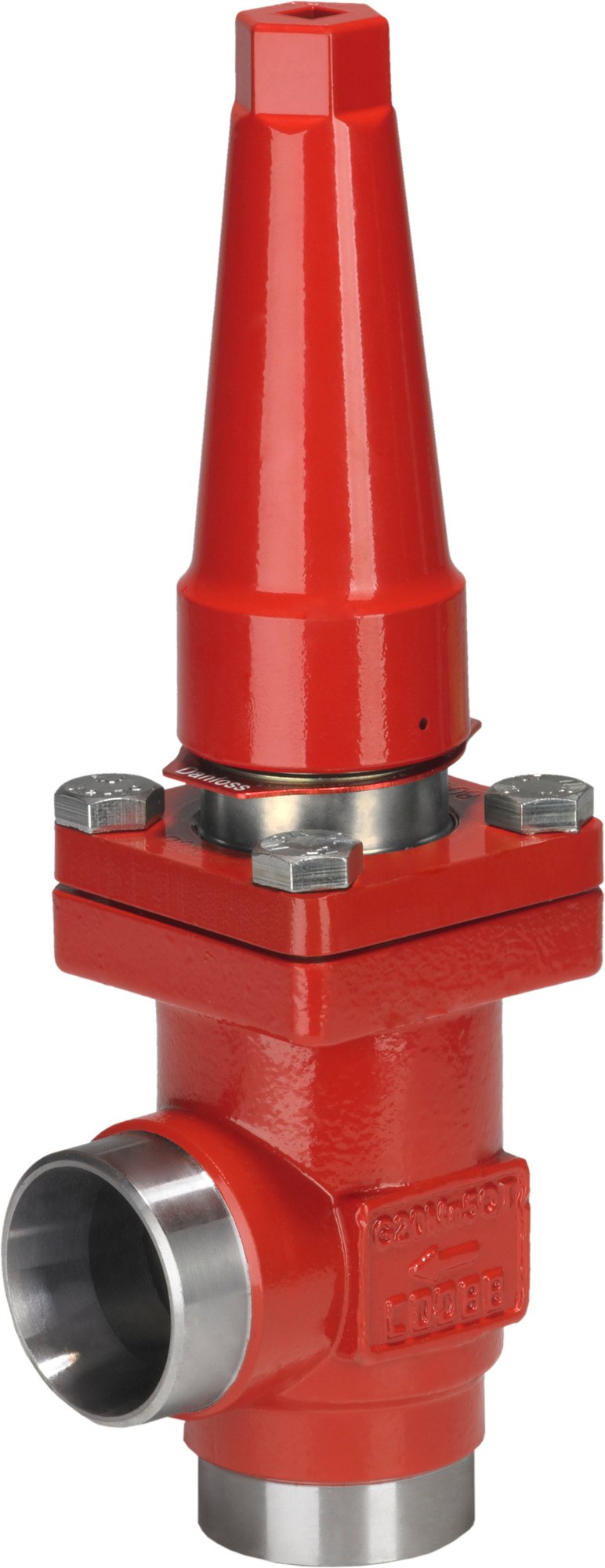

Danfoss SVA-S 20 angleway shut-off valve, socket weld, cap, 3/4 in (20 mm), 52 bar

Danfoss SVA-S 20 angleway shut-off (stop) valve for industrial-refrigeration line service, code 148B5323. Standard-neck (SVA-S) carbon-steel Flexline stop valve, size 3/4 in (20 mm), with socket-weld inlet and outlet to ASME B16.11 in an angleway (90-degree) body, cap operated - the capped counterpart of the socket-weld angleway handwheel 148B5322. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 10 m3/h (Cv 11.6 gal/min).

Type

SVA-S 20 (stop / shut-off valve)

Code number

148B5323

Series

SVA-S / SVA-L (Flexline stop and shut-off valves)

Function

Manual shut-off (stop) valve

Nominal size

3/4 in (20 mm)

Direction

Angleway

Equipment

Cap

Neck

Standard (SVA-S)

Flow direction

Bi-flow

Inlet connection type

Socket weld

Outlet connection type

Socket weld

Connection standard

ASME B16.11

Connection size

3/4 in (20 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

10 m3/h

Cv value

11.6 gal/min

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

Art. 4, par. 3

Approvals

CE, EAC

Net weight

1.6 kg

EAN

5702428467285

Size / Series

3/4 in (20 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.80
