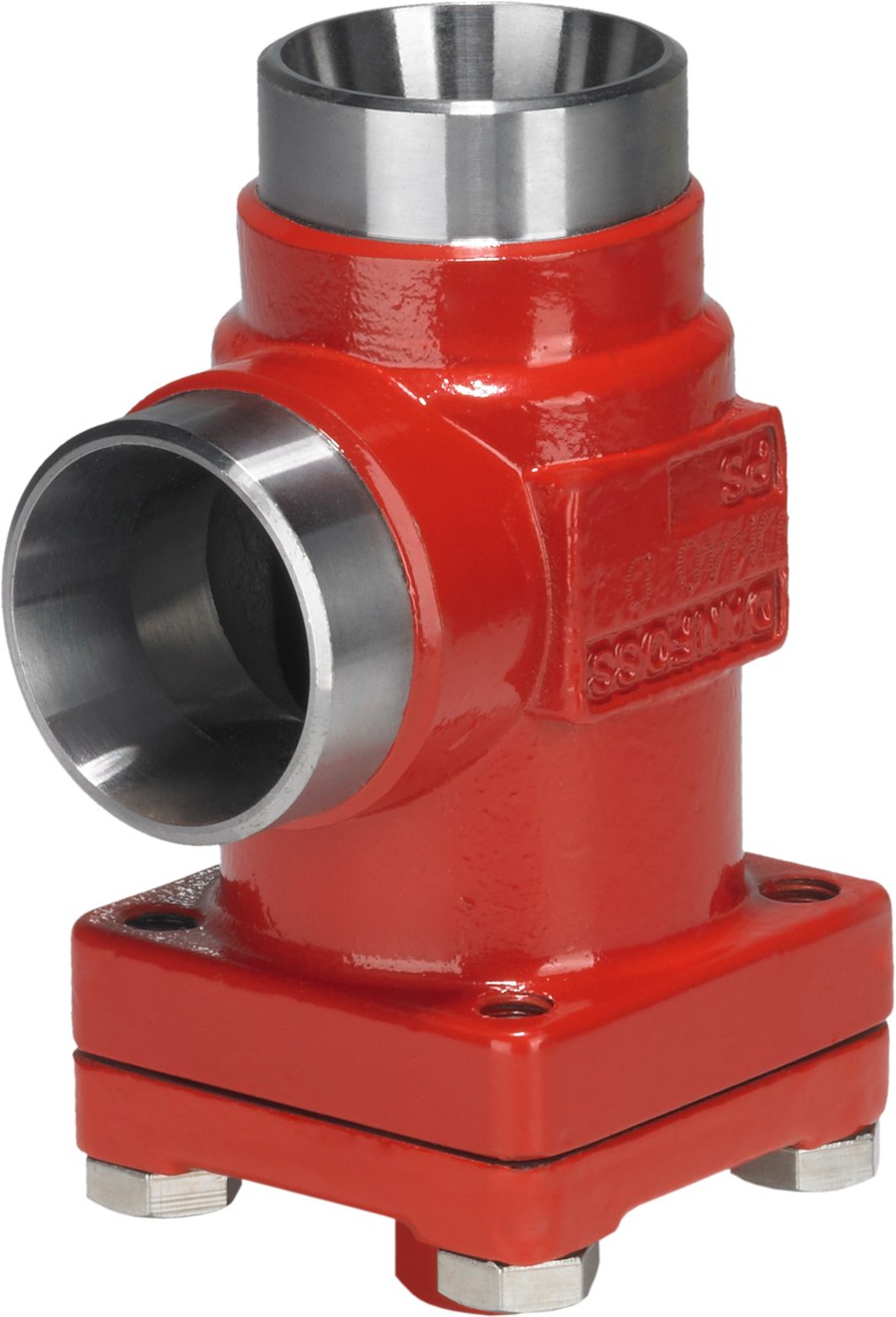

Danfoss FIA 25 angleway strainer housing, butt weld ASME B 36.10M Schedule 80, 1 in (25 mm), 52 bar

Danfoss FIA 25 angleway strainer (filter) housing for industrial-refrigeration line service, code 148B5444. The FIA housing takes a replaceable filter insert and removes particles from the refrigerant flow to protect downstream valves and controls. This angleway body carries butt weld inlet and outlet to ASME B 36.10M Schedule 80, size 1 in (25 mm) — distinct from the EN 10220 angleway and the straightway FIA 25 codes. Steel body; embossed one-way flow arrow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Supplied with cover. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. The filter insert is ordered separately by mesh/micron rating.

Type

FIA 25 (strainer / filter housing)

Code number

148B5444

Series

FIA (Flexline strainers)

Function

In-line strainer housing (replaceable filter insert)

Nominal size

DN25 — 1 in (25 mm)

Direction

Angleway

Equipment

Cover

Flow direction

Embossed one-way arrow

Inlet connection type

Butt weld

Outlet connection type

Butt weld

Connection standard

ASME B 36.10M Schedule 80

Connection size

1 in (25 mm)

Body material

Steel

Connection material

Steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Applicable media

HCFC, HFC, R717 (ammonia), R744 (CO2)

CE mark

Yes

PED category

Art. 4, par. 3

Approvals

CE

Net weight

2.05 kg

EAN

5702428475174

Size / Series

1 in (25 mm)

Material

Steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
