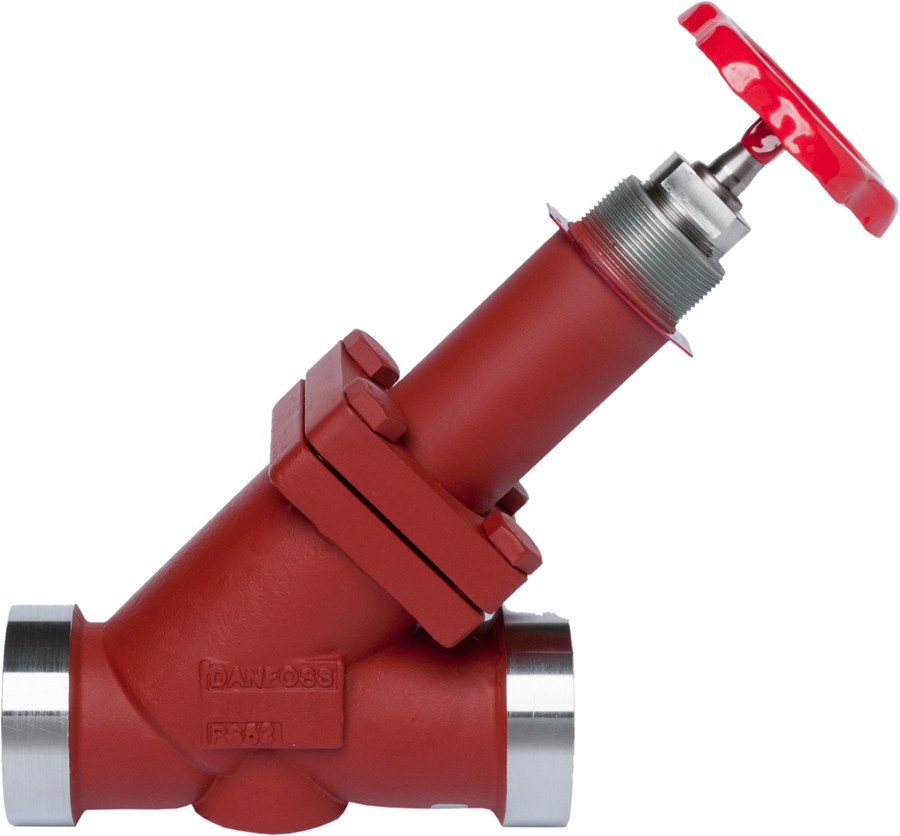

Danfoss SVA-L 20 straightway shut-off valve, butt weld EN 10220, hand wheel, 3/4 in (20 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-L 20 straightway shut-off (stop) valve for industrial-refrigeration line service, code 148B5350. SVA-L is the long-neck (extended bonnet) version of the Flexline stop valve, suited to thicker insulation. This straightway body carries butt-weld inlet and outlet to EN 10220, size 3/4 in (20 mm) — distinct from the ASME Sch80 straightway and the socket-weld straightway SVA-L 20 codes. Steel body and connections; bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 10.2 m3/h (Cv 11.83 gal/min). Operated with a hand wheel. Suits HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems. Straightway body places inlet and outlet in line.
Technical Specifications
- Type
- SVA-L 20 (Stop / shut-off valve)
- Code number
- 148B5350
- Series
- SVA-S / SVA-L (Flexline stop and shut-off valves)
- Function
- Manual shut-off (stop) valve
- Nominal size
- DN20 — 3/4 in (20 mm)
- Direction
- Straightway
- Equipment
- Hand wheel
- Neck
- Long (SVA-L)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 3/4 in (20 mm)
- Body material
- Steel
- Connection material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 10.2 m3/h
- Cv value
- 11.83 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- Art. 4, par. 3
- Approvals
- CE, EAC (LLC CDC TYSK)
- Net weight
- 1.74 kg
- EAN
- 5702428469982
Standards & Compliance
- Size / Series
- 3/4 in (20 mm)
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-L Flexline shut-off valve, straightway EN 10220 butt-weld variant. Select by nominal size (DN20 / 3/4 in) and operator (hand wheel). EN 10220, ASME Sch80 and socket-weld bodies are separate codes and are not interchangeable — confirm the mating pipe connection before ordering. SVA-S is the standard-neck version; SVA-L is the long-neck version.
