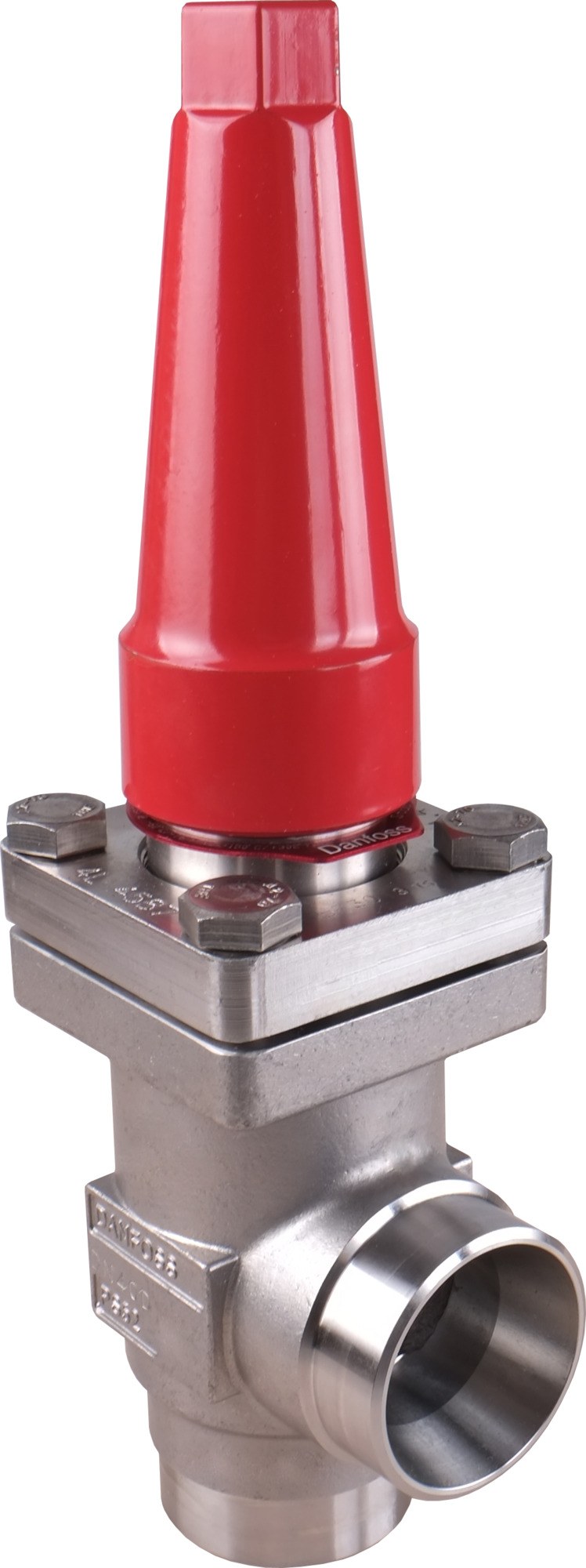

Danfoss SVA-S SS 15 angleway stainless steel shut-off valve, butt weld, cap, 1/2 in (15 mm), 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 15 angleway stainless steel shut-off (stop) valve for industrial-refrigeration line service, code 148B5290. This is the stainless-steel (SS) short-neck version of the Flexline stop valve, size 1/2 in (15 mm), with butt-weld inlet and outlet to EN 10220 — distinct from the carbon-steel SVA-S and the long-neck SVA-L SS bodies. Stainless steel body and connections give improved corrosion resistance for CO2 (R744) and ammonia (R717) duty. Bi-flow; maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F); Kv 7 m3/h (Cv 8.12 gal/min). Operated with a cap. Angleway body places inlet and outlet at 90 degrees.
Technical Specifications
- Type
- SVA-S SS 15 (stainless steel stop / shut-off valve)
- Code number
- 148B5290
- Series
- SVA-S SS / SVA-L SS (Flexline stainless stop and shut-off valves)
- Function
- Manual shut-off (stop) valve
- Nominal size
- DN15 — 1/2 in (15 mm)
- Direction
- Angleway
- Equipment
- Cap
- Neck
- Standard (SVA-S)
- Flow direction
- Bi-flow
- Inlet connection type
- Butt weld
- Outlet connection type
- Butt weld
- Connection standard
- EN 10220
- Connection size
- 1/2 in (15 mm)
- Body material
- Stainless steel
- Connection material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 7 m3/h
- Cv value
- 8.12 gal/min
- Applicable media
- HCFC, HFC, R717 (ammonia), R744 (CO2)
- CE mark
- Yes
- PED category
- Art. 4, par. 3
- Approvals
- CE, EAC (LLC CDC TYSK)
- Net weight
- 1.5 kg
- EAN
- 5702428840927
Standards & Compliance
- Size / Series
- 1/2 in (15 mm)
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S SS Flexline stainless steel shut-off valve. Select by nominal size (DN15 / 1/2 in), body direction (angleway) and operator (cap). The stainless SS body is a separate code from the carbon-steel SVA-S; SVA-S is standard-neck and SVA-L is long-neck — confirm body material, neck length and pipe connection before ordering.
