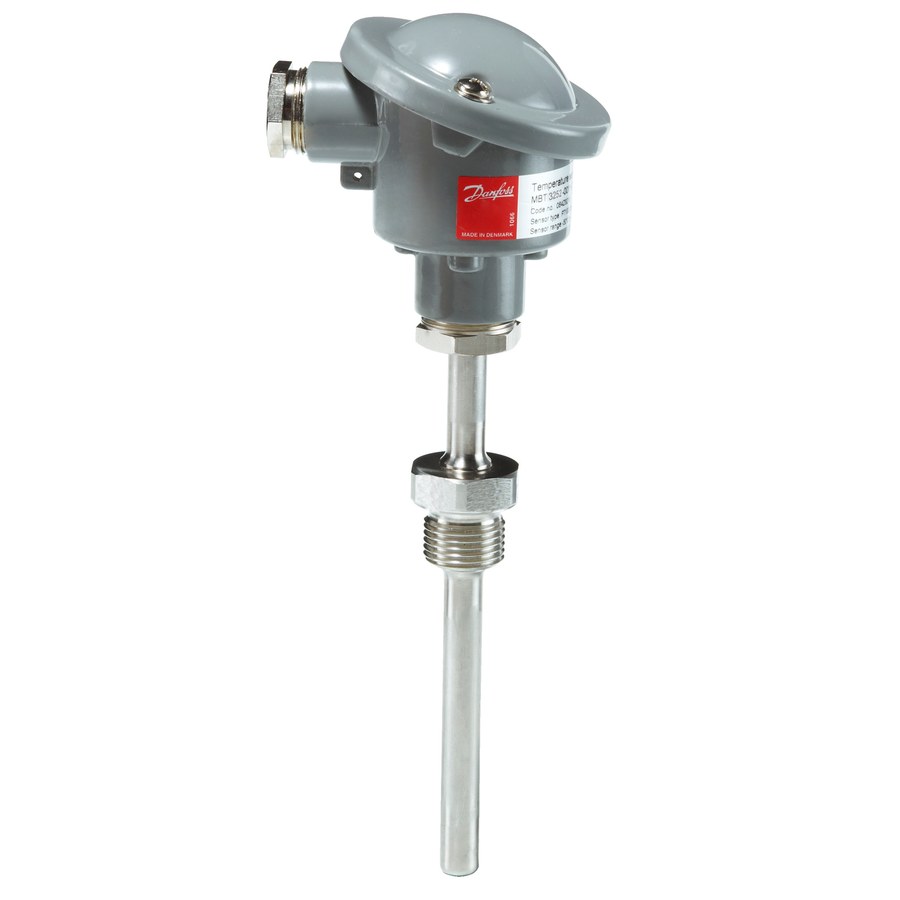

Danfoss MBT 3252 temperature sensor, Pt 100, 100 mm insertion, M 16x1.5 process connection (code 084Z2445)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 3252 compact heavy-duty exchangeable-insert temperature sensor, code 084Z2445 (type designation MBT 3252-0001-0100-0931-0000). Insertion RTD for cooling water, lubricating and hydraulic oil, refrigeration and general machinery temperature measurement. Pt 100 platinum measuring element (100 ohm at 0 C), Class A tolerance per EN 60751; exchangeable measuring insert; insertion length 100 mm; M 16x1.5 male (ISO 965) process connection; AISI 316 Ti stainless steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Type B connection head, Pg 16; IP65 per IEC 60529. CE marked.
Specifications
- Part number
- 084Z2445
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 3252 insertion sensor with changeable insert. Confirm insertion length (100 mm), process thread (M 16x1.5) and element (Pt 100) match the pocket and controller input.
Standards
Approvals
