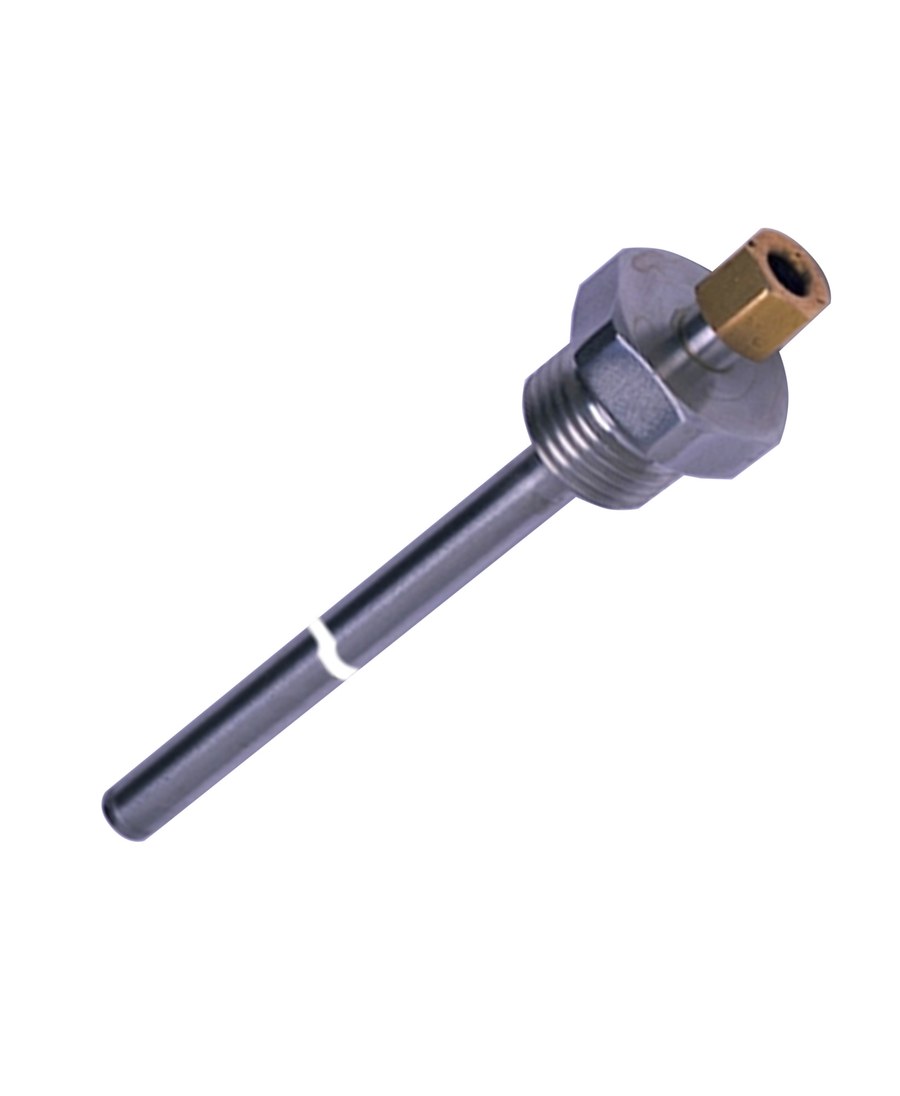

Danfoss MBT 150 temperature sensor insert, Pt 1000 1000 ohm, 50 mm insertion
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 150 measuring insert, code 084Z2468 (type designation MBT 150-010-050-0). Exchangeable Pt 1000 platinum resistance element (1000 ohm at 0 C), Class B tolerance per EN 60751, used as the replaceable sensing element inside MBT insertion sensors and pockets. Insertion length 50 mm; 6 mm protection tube; resistance (ohm) output. Angular connector, 4-pin per EN 175301-803-A; IP00 per IEC 60529. Measuring range -50 to +200 C (-58 to +392 F). Used with MBT 5250 / MBT 3250 / MBT 5310. CE marked.
Technical Specifications
- Type
- MBT 150 measuring insert (exchangeable element)
- Type designation
- MBT 150-010-050-0
- Code number
- 084Z2468
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 50 mm
- Protection tube diameter
- 6 mm
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Angular connector, 4-pin per EN 175301-803-A
- Enclosure rating
- IP00 per IEC 60529
- Used for
- MBT 5250 / MBT 3250 / MBT 5310
- Packing quantity
- 10 pc
- Net weight
- 0.014 kg
- Approvals
- CE
- EAN
- 5715162882122
- Product group
- Accessories, sensors
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- EU RoHS compliance
- Yes
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Process connection Male/Female
- Male
- Process connection size
- 3/8
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- No
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- UL mark
- No
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- stainless steel
- Thread Standard
- EN 175301-803-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP00
- HS Code
- 9025.90
Compatibility & Fitment
MBT 150 replaceable element. Confirm insertion length (50 mm) and element (Pt 1000) match the host sensor/pocket and controller input.
Product Documentation
More from Danfoss
Danfoss

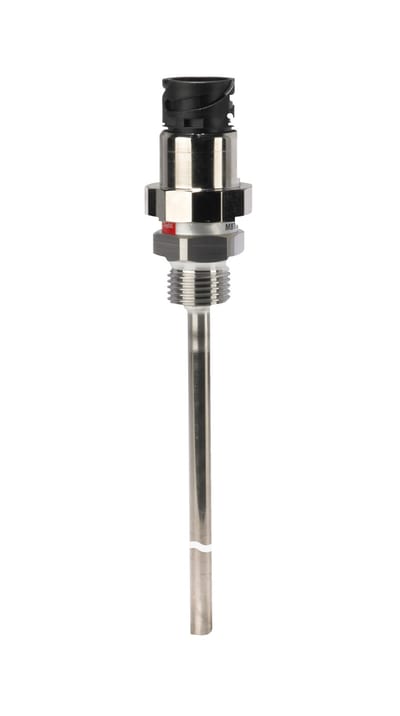

Danfoss MBT 152 temperature transmitter insert, Pt 100, 150 mm insertion, 4-20 mA output
084Z2465
Danfoss

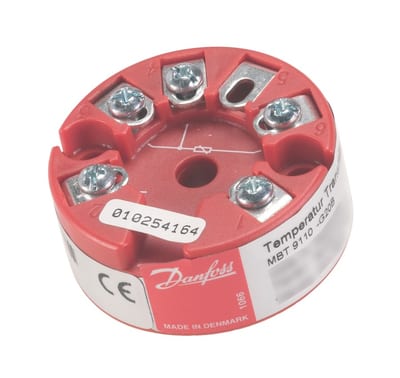

Danfoss MBT 9110 temperature transmitter, Pt 100 input, 4-20 mA output, -50 to +100 C range
084Z3108
Danfoss

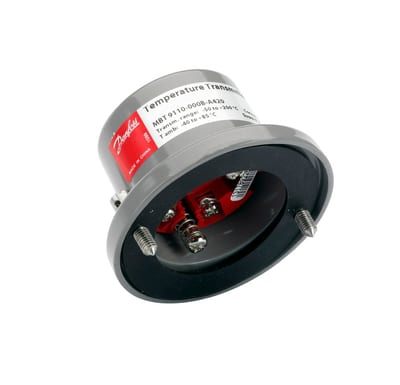

Danfoss MBT 9110 temperature transmitter, Pt 100 input, 4-20 mA output, 0 to +160 C range
084Z3155
Danfoss

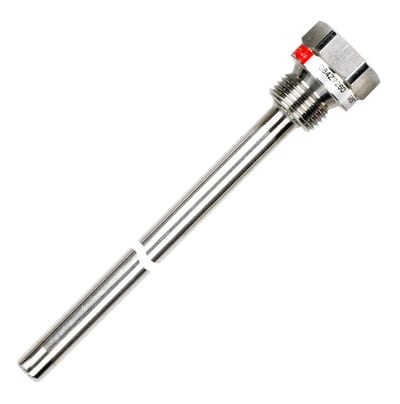

Danfoss MBT 120 sensor pocket (thermowell), 80 mm insertion, NPT 1/2-14 connection, AISI 316 Ti
084Z3124
Danfoss

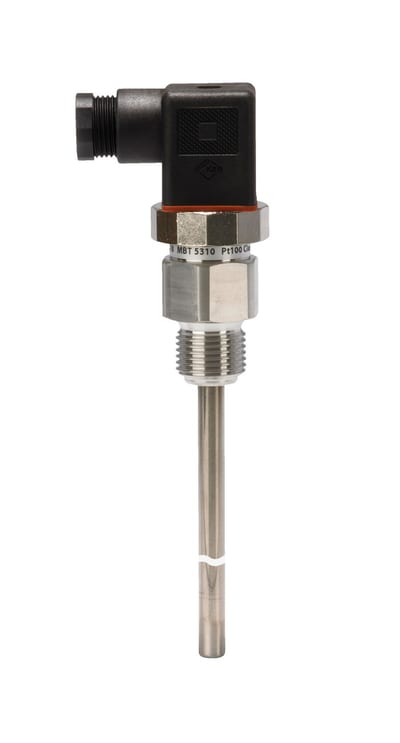

Danfoss MBT 5310 temperature sensor, Pt 100, 84-96 mm (adjustable) insertion, G 1/2 process connection
084Z3128
Danfoss
Danfoss MBT 5310 temperature sensor, Pt 100, 132-144 mm (adjustable) insertion, G 1/2 process connection
084Z3129
Danfoss

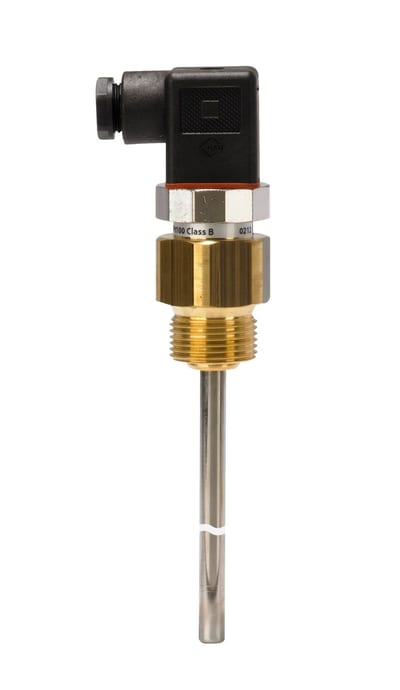

Danfoss MBT 5310 temperature sensor, Pt 100, 345-360 mm (adjustable) insertion, G 3/4 process connection
