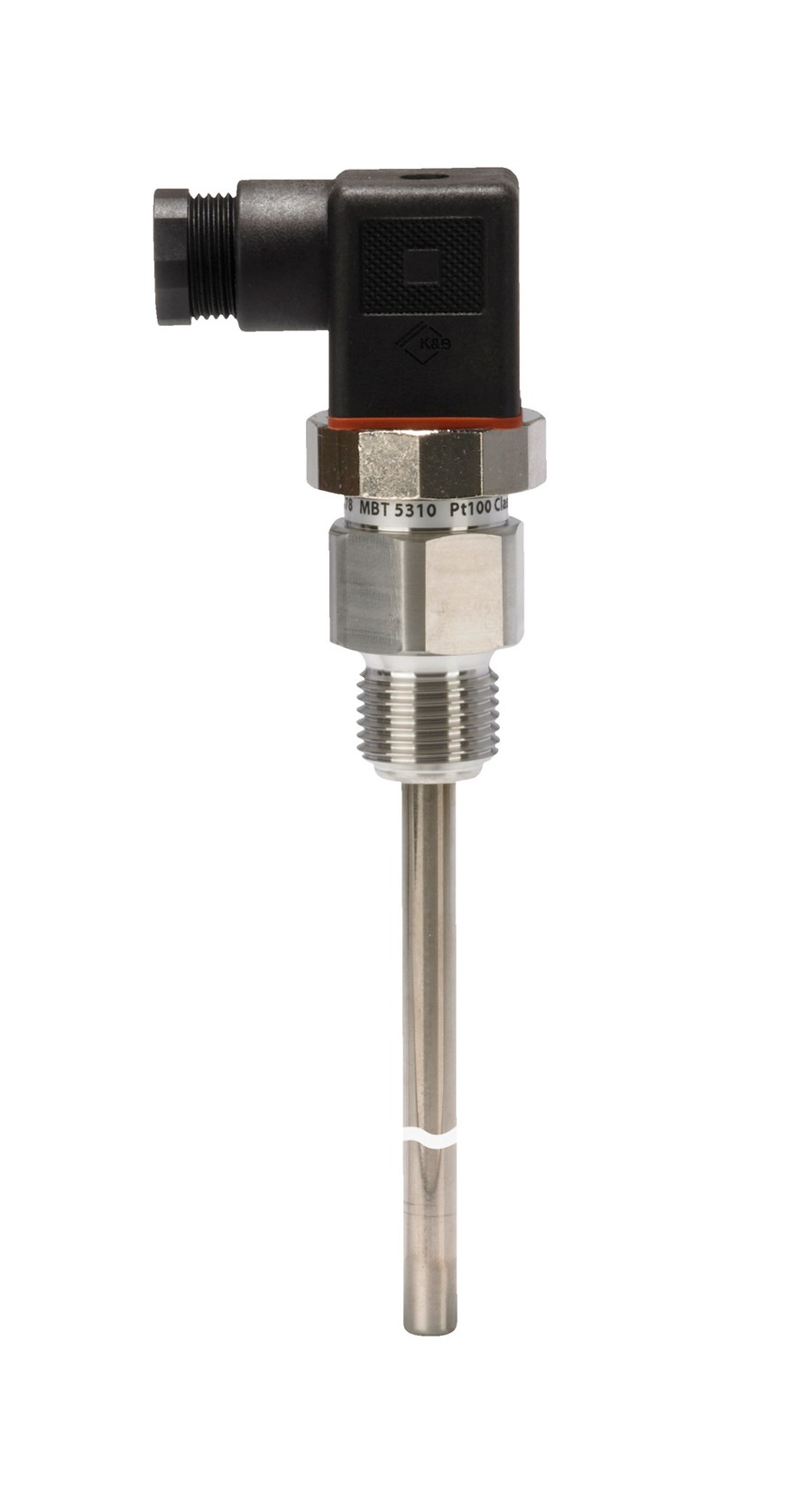

Danfoss MBT 5310 temperature sensor, Pt 100, 60-72 mm (adjustable) insertion, G 1/2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5310 temperature sensor with adjustable insertion depth, code 084Z3147 (type designation MBT 5310-00-072-000). Insertion RTD with a sliding compression gland so the immersion depth can be set on site between 60 and 72 mm, for cooling water, oil and refrigeration circuits in general industry and marine installations. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 11; IP65 enclosure per IEC 60529; maximum ambient 125 C. CE marked.
Technical Specifications
- Type
- MBT 5310 (adjustable-insertion temperature sensor)
- Type designation
- MBT 5310-00-072-000
- Code number
- 084Z3147
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 60-72 mm (adjustable)
- Process connection
- G 1/2 (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Angular connector (form A) per EN 175301-803-A, Pg 11
- Enclosure rating
- IP65 per IEC 60529
- Max ambient temperature
- 125 C (257 F)
- Packing quantity
- 20 pc
- Net weight
- 0.195 kg
- Approvals
- CE
- EAN
- 5702423260690
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in] [max]
- 2.83 in
- Insertion length [in] [min]
- 2.36 in
- Insertion length [mm] [max]
- 72 mm
- Insertion length [mm] [min]
- 60 mm
- Insertion type
- Variable
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 60-72 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5310 adjustable-insertion sensor. Set the immersion depth (60-72 mm) to the pocket/boss; confirm process thread (G 1/2) and element (Pt 100). The compression gland fixes the depth once set.
