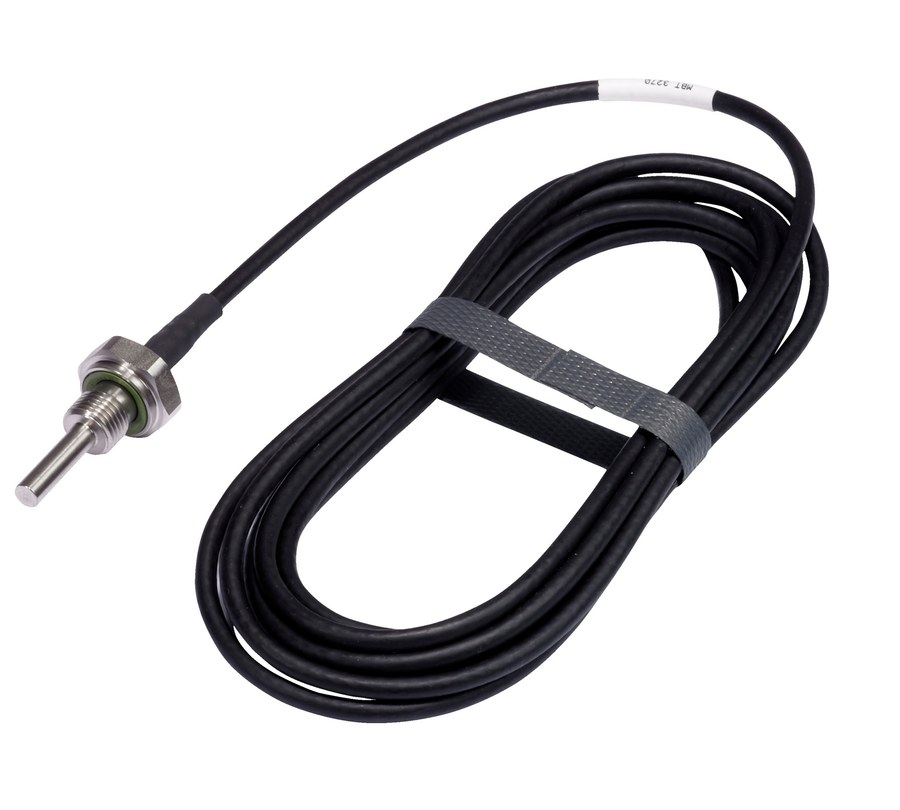

Danfoss MBT 3270 temperature sensor, Pt 100, 35 mm insertion, G 1/4 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3270 compact temperature sensor, code 084Z3194 (type designation MBT 3270-00001-035-00017-300). Rugged fixed-insert RTD sensor for engines, compressors and machinery temperature monitoring. Sensor element Pt 100 platinum resistance (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 35 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 stainless steel protection tube, 6.2 mm diameter. Measuring range -50 to +150 C (-58 to +302 F); resistance (ohm) output. Electrical connection Cable, 3-wire, 3 m; IP54 enclosure per IEC 60529; maximum ambient 125 C. CE marked.
Technical Specifications
- Type
- MBT 3270 (compact fixed-insert sensor)
- Type designation
- MBT 3270-00001-035-00017-300
- Code number
- 084Z3194
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 35 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Protection tube
- AISI 316 stainless steel, 6.2 mm diameter
- Measuring range
- -50 to +150 C (-58 to +302 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Cable, 3-wire, 3 m
- Enclosure rating
- IP54 per IEC 60529
- Max ambient temperature
- 125 C (257 F)
- Packing quantity
- 10 pc
- Net weight
- 0.158 kg
- Approvals
- CE
- EAN
- 5702423263868
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- Cable length [in]
- 118 in
- Cable length [m]
- 3 m
- Cable tempr. range [°C] [max]
- 125 °C
- Cable tempr. range [°C] [min]
- -40 °C
- Cable tempr. range [°F] [max]
- 257 °F
- Cable tempr. range [°F] [min]
- -40 °F
- Cable type
- Polyolefine, screened
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316L
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 3 wire
- Enclosure rating IP
- IP54
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.38 in
- Insertion length [mm]
- 35 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 150 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 302 °F
- Measuring range [°F] [min]
- -58 °F
- Process connection Male/Female
- Male
- Process connection material
- AISI 303
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.244 in
- Protection tube diameter [mm]
- 6.2 mm
- Protection tube material
- AISI 316
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 3 pc
Standards & Compliance
- Size / Series
- 35 mm insertion
- Material
- AISI 316 stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +150 C (-58 to +302 F)
- IP Rating
- IP54
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3270 compact sensor. Confirm insertion length (35 mm), process thread (G 1/4), element (Pt 100) and connection (Cable, 3-wire, 3 m) match the mounting boss and controller input.
Product Documentation
More from Danfoss
Danfoss

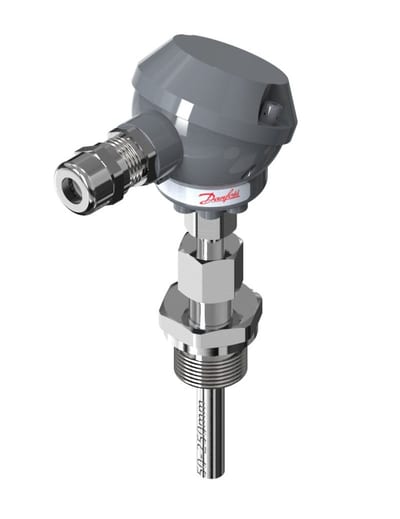

Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100, 50 mm insertion, G 1/2 process connection
084Z3136
Danfoss

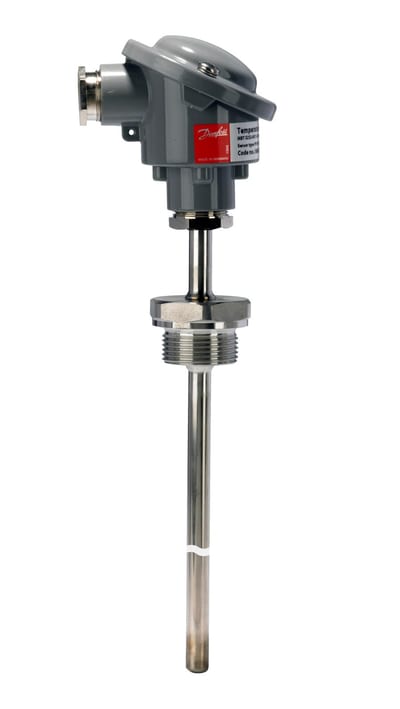

Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100, 80 mm insertion, M 33X2 process connection
