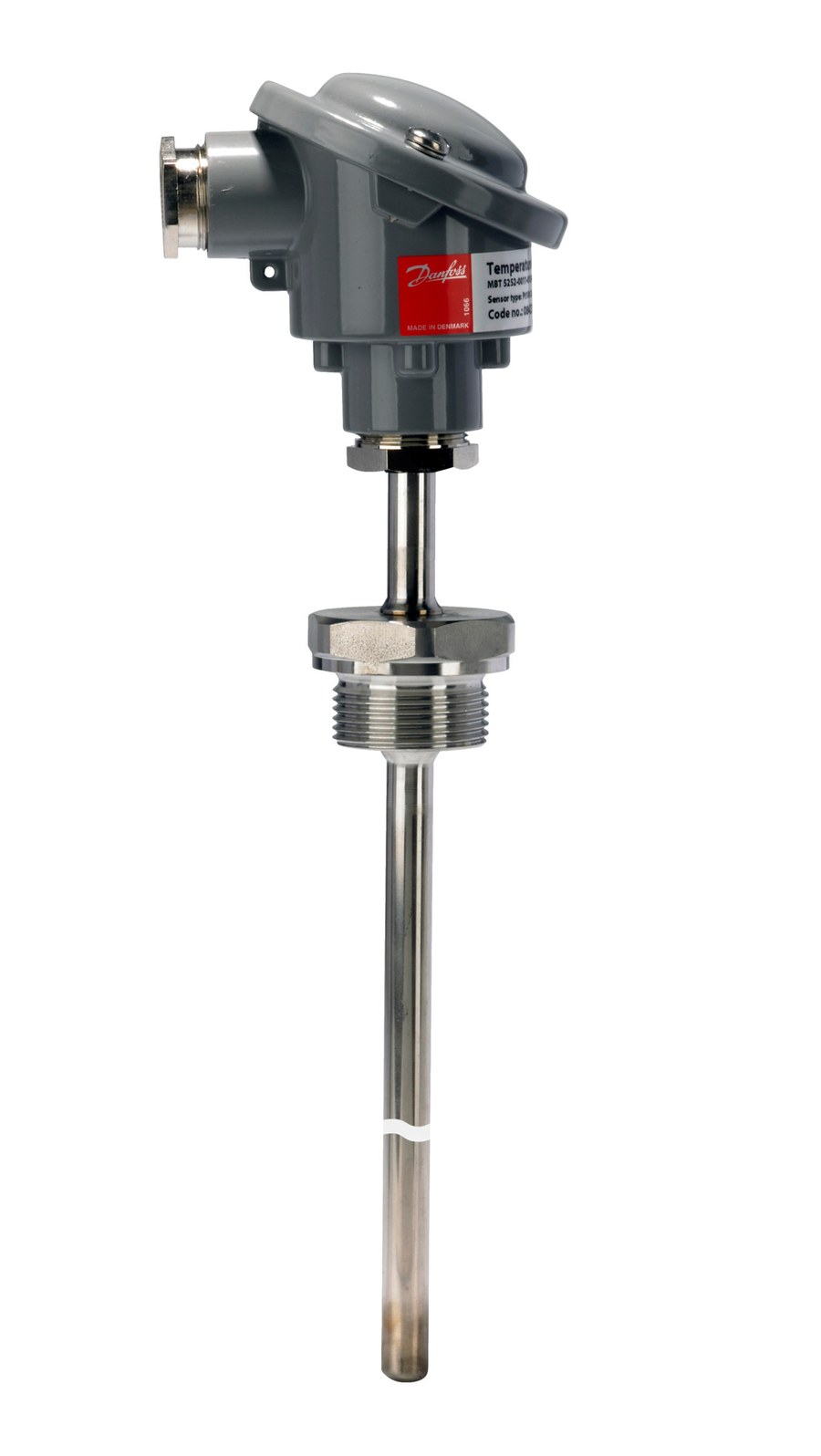

Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100, 80 mm insertion, M 33X2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5252 temperature sensor with exchangeable measuring insert, code 084Z3137 (type designation MBT 5252-0011-0080-0600-0000). Insertion RTD for cooling water, lubricating and hydraulic oil and refrigeration plant; the replaceable insert allows the element to be changed without breaking the process seal. Pt 100 platinum element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 80 mm plus 50 mm extension neck; M 33x2 male (ISO 965) process connection; AISI 316 Ti stainless-steel protection tube, 10 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Type B connection head, Pg 16; IP65 enclosure per IEC 60529; maximum ambient 90 C. CE marked.
Technical Specifications
- Type
- MBT 5252 (exchangeable-insert insertion temperature sensor)
- Type designation
- MBT 5252-0011-0080-0600-0000
- Code number
- 084Z3137
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 80 mm
- Extension length
- 50 mm
- Process connection
- M 33x2 (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 10 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Max ambient temperature
- 90 C
- Packing quantity
- 8 pc
- Net weight
- 0.537 kg
- Approvals
- CE
- EAN
- 5702423257386
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 3.15 in
- Insertion length [mm]
- 80 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 33x2
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.394 in
- Protection tube diameter [mm]
- 10 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 80 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5252 insertion sensor. Confirm insertion length (80 mm), process thread (M 33x2) and element (Pt 100 Class B) match the pocket and controller input. The measuring insert is field-replaceable.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100, 150 mm insertion, M 33X2 process connection
084Z3138
Danfoss
Danfoss MBT 5252 temperature sensor with exchangeable insert, Pt 100, 200 mm insertion, M 33X2 process connection
084Z3139
Danfoss

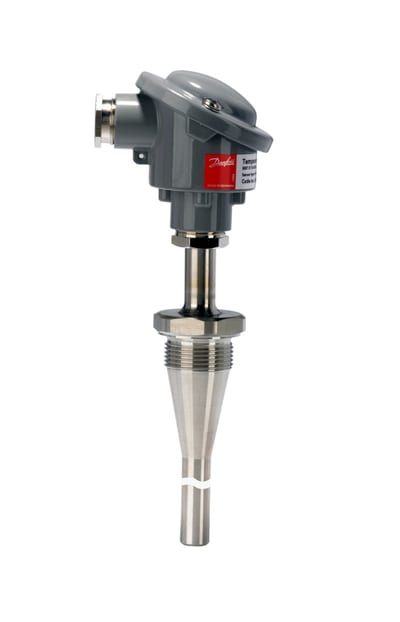

Danfoss MBT 5116 high-temperature sensor, Pt 100, -50 to +600 C, 150 mm insertion, M 33X2 process connection
