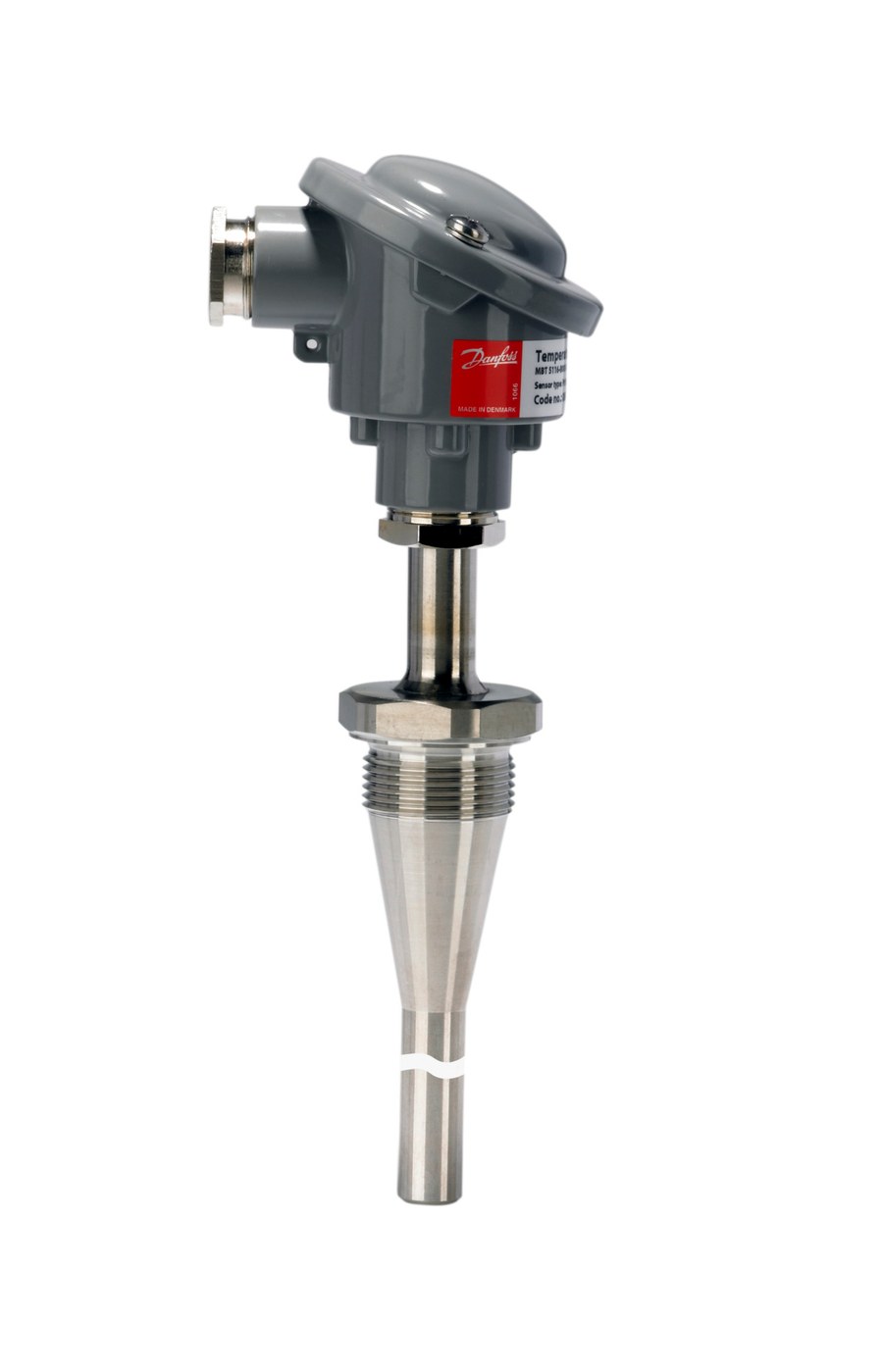

Danfoss MBT 5116 high-temperature sensor, Pt 100, -50 to +600 C, 150 mm insertion, M 33X2 process connection
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 5116 high-temperature insertion sensor, code 084Z3141 (type designation MBT 5116-B001-150-30-0000). Heavy-duty RTD for high-temperature process measurement such as compressor discharge, oil and exhaust circuits. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. Insertion length 150 mm plus 50 mm extension neck; M 33x2 male (ISO 965) process connection; AISI 316 Ti stainless-steel protection tube, 14-24 mm diameter. Measuring range -50 to +600 C (-58 to +1112 F); resistance (ohm) output. Type B connection head, Pg 16; IP65 enclosure per IEC 60529; maximum ambient 90 C. CE marked.
Technical Specifications
- Type
- MBT 5116 (high-temperature insertion sensor)
- Type designation
- MBT 5116-B001-150-30-0000
- Code number
- 084Z3141
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 150 mm
- Extension length
- 50 mm
- Process connection
- M 33x2 (ISO 965)
- Protection tube
- AISI 316 Ti stainless steel, 14-24 mm diameter
- Measuring range
- -50 to +600 C (-58 to +1112 F)
- Output signal
- Ohm (resistance)
- Electrical connection
- Type B connection head, Pg 16
- Enclosure rating
- IP65 per IEC 60529
- Max ambient temperature
- 90 C (194 F)
- Packing quantity
- 8 pc
- Net weight
- 0.845 kg
- Approvals
- CE
- EAN
- 5702423257843
- Product group
- Sensors
- Ambient temperature max. [°C]
- 90 °C
- Ambient temperature max. [°F]
- 194 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- AISI 316 Ti
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- Pg 16
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Extension length [in]
- 1.97 in
- Extension length [mm]
- 50 mm
- In scope of WEEE
- Yes
- Insertion length [in]
- 5.9 in
- Insertion length [mm]
- 150 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 600 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 1112 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 3 pc
- Process connection Male/Female
- Male
- Process connection material
- AISI 316 Ti
- Process connection size
- 33x2
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in] [max]
- 0.945 in
- Protection tube diameter [in] [min]
- 0.551 in
- Protection tube diameter [mm] [max]
- 24 mm
- Protection tube diameter [mm] [min]
- 14 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 600 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 1112 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 2 pc
Standards & Compliance
- Size / Series
- 150 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 965
- Temperature Range
- -50 to +600 C (-58 to +1112 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 5116 high-temperature sensor. Confirm insertion length (150 mm), process thread (M 33x2) and the -50 to +600 C range suit the application; the Type B head accepts Pg 16 cable entry.
Product Documentation
More from Danfoss
Danfoss

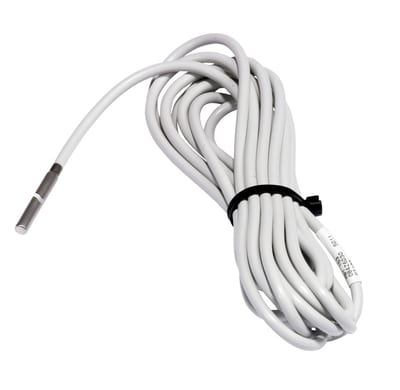

Danfoss MBT 153 flexible cable temperature sensor, Pt 1000, 5.5 m cable, 2-Wire
084Z3150
Danfoss

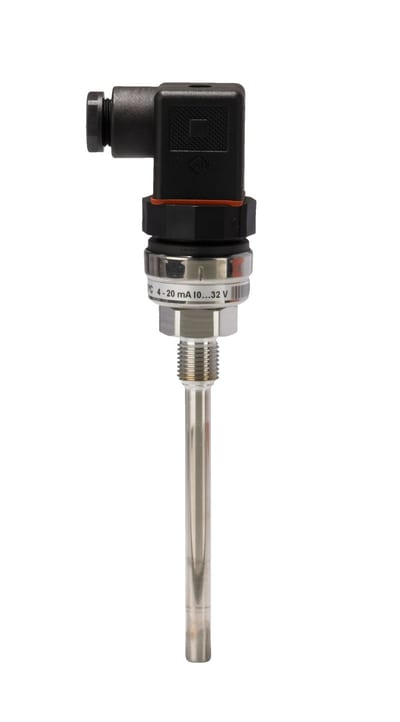

Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 100 mm insertion, G 1/4 process connection (code 084Z4021)
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 150 mm insertion, G 1/4 process connection (code 084Z4022)
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 200 mm insertion, G 1/4 process connection (code 084Z4023)
Danfoss
Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 250 mm insertion, G 1/4 process connection (code 084Z4024)
Danfoss

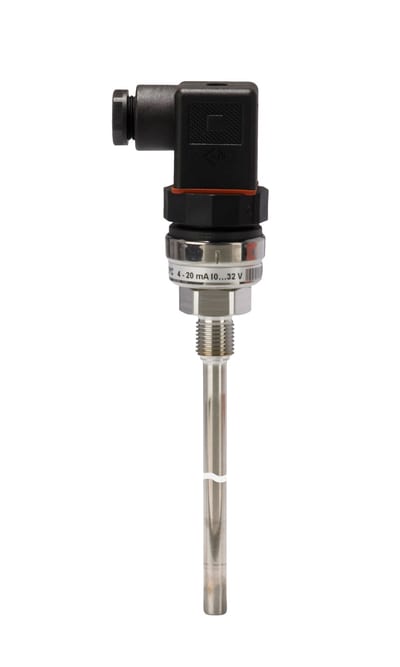

Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 50 mm insertion, G 1/4 process connection (code 084Z4056)
Danfoss

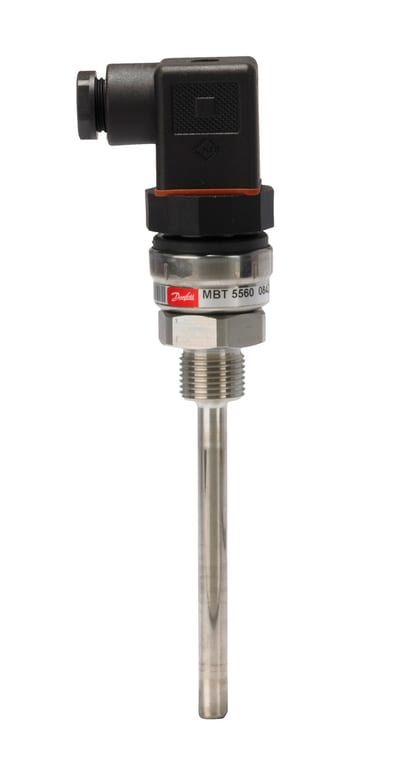

Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 100 mm insertion, M 18X1.5 process connection
