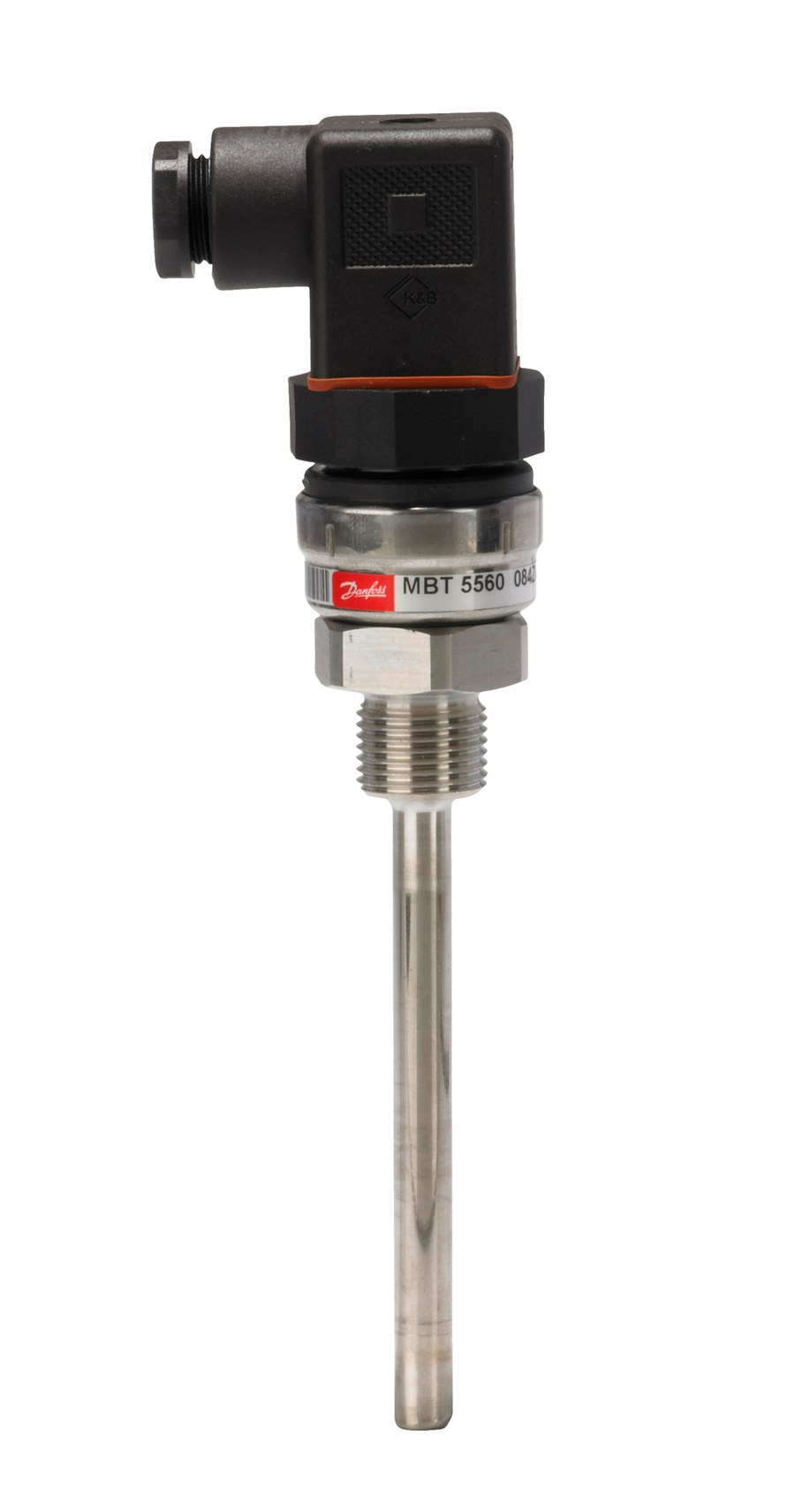

Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 100 mm insertion, M 18x1.5 process connection (code 084Z4076)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5560 temperature transmitter, code 084Z4076 (type designation MBT 5560-0000-0100-16-115). Compact insertion sensor with an integrated 2-wire loop-powered transmitter that delivers a 4-20 mA scaled to the -50 to +200 C measuring range output, for refrigeration, HVAC and machinery control. Pt 1000 platinum element (1000 ohm at 0 C), accuracy < +/-1% FS. Insertion length 100 mm; M 18x1.5 male (ISO 965) process connection; AISI 316 Ti protection tube, 8 mm diameter. Sensor measuring range -50 to +200 C (-58 to +392 F). 10-32 V DC supply; Angular connector (form A) per EN 175301-803-A, Pg 9; IP65 enclosure per IEC 60529; maximum ambient 85 C. CE marked.
Specifications
- Part number
- 084Z4076
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 100 mm insertion
- Thread standard
- ISO 965
Compatibility
MBT 5560 built-in transmitter (4-20 mA, 2-wire). Confirm the -50 to +200 C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (100 mm) / process thread (M 18x1.5) suit the mounting boss.
