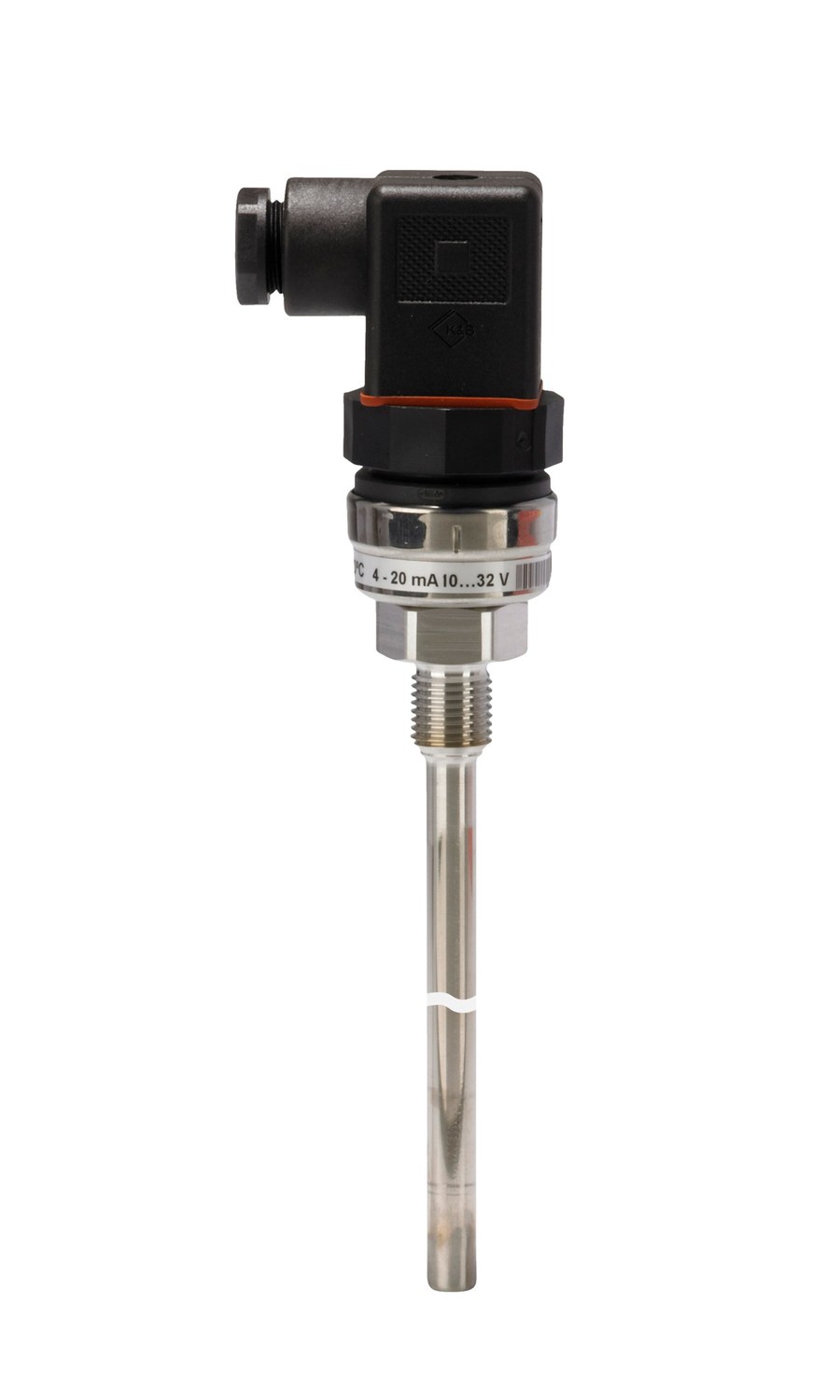

Danfoss MBT 3560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 50 mm insertion, G 1/4 process connection (code 084Z4030)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 3560 temperature transmitter, code 084Z4030 (type designation MBT 3560-0000-0050-10-110). Compact insertion sensor with an integrated 2-wire loop-powered transmitter that delivers a factory-scaled 4-20 mA over the 0 to +100 C (32 to 212 F) span output, for refrigeration, HVAC and machinery control. Pt 1000 platinum element (1000 ohm at 0 C), accuracy < +/-1% FS. Insertion length 50 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 8 mm diameter. Sensor measuring range -50 to +200 C (-58 to +392 F). 10-32 V DC supply; Angular connector (form A) per EN 175301-803-A, Pg 9; IP65 enclosure per IEC 60529; maximum ambient 85 C. CE marked.
Technical Specifications
- Type
- MBT 3560 (compact temperature transmitter with built-in 4-20 mA output)
- Type designation
- MBT 3560-0000-0050-10-110
- Code number
- 084Z4030
- Sensor element
- Pt 1000 platinum resistance (1000 ohm at 0 C)
- Tolerance
- < +/-1% FS
- Insertion length
- 50 mm
- Process connection
- G 1/4 (ISO 228-1-A)
- Protection tube
- AISI 316 Ti stainless steel, 8 mm diameter
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Transmitter measuring span
- 0 to +100 C (32 to 212 F)
- Output signal
- 4-20 mA (2-wire, loop-powered)
- Supply voltage
- 10-32 V DC
- Electrical connection
- Angular connector (form A) per EN 175301-803-A, Pg 9
- Enclosure rating
- IP65 per IEC 60529
- Max ambient temperature
- 85 C (185 F)
- Packing quantity
- 13 pc
- Net weight
- 0.111 kg
- Approvals
- CE
- EAN
- 5702423192601
- Product group
- Sensors
- Ambient temperature max. [°C]
- 85 °C
- Ambient temperature max. [°F]
- 185 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection standard
- ISO 228
- Connection type
- G
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Insertion type
- Fixed
- Measuring range [°C] [max]
- 100 °C
- Measuring range [°C] [min]
- 0 °C
- Measuring range [°F] [max]
- 212 °F
- Measuring range [°F] [min]
- 32 °F
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/4
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 1000 Ohm
- Sensor element tolerance
- < ± 1% FS
- Sensor element type
- Pt
- Sensor Insert
- Fixed
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 10 V
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Transmitter setting range [°C] [max]
- 100 °C
- Transmitter setting range [°C] [min]
- 0 °C
- Transmitter setting range [°F] [max]
- 212 °F
- Transmitter setting range [°F] [min]
- 32 °F
- Transmitter type
- Integrated
Standards & Compliance
- Size / Series
- 50 mm insertion
- Material
- AISI 316 Ti stainless steel
- Thread Standard
- ISO 228-1-A
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP65
- HS Code
- 9025.19
Compatibility & Fitment
MBT 3560 built-in transmitter (4-20 mA, 2-wire). Confirm the 0 to +100 C (32 to 212 F) output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (50 mm) / process thread (G 1/4) suit the mounting boss.
