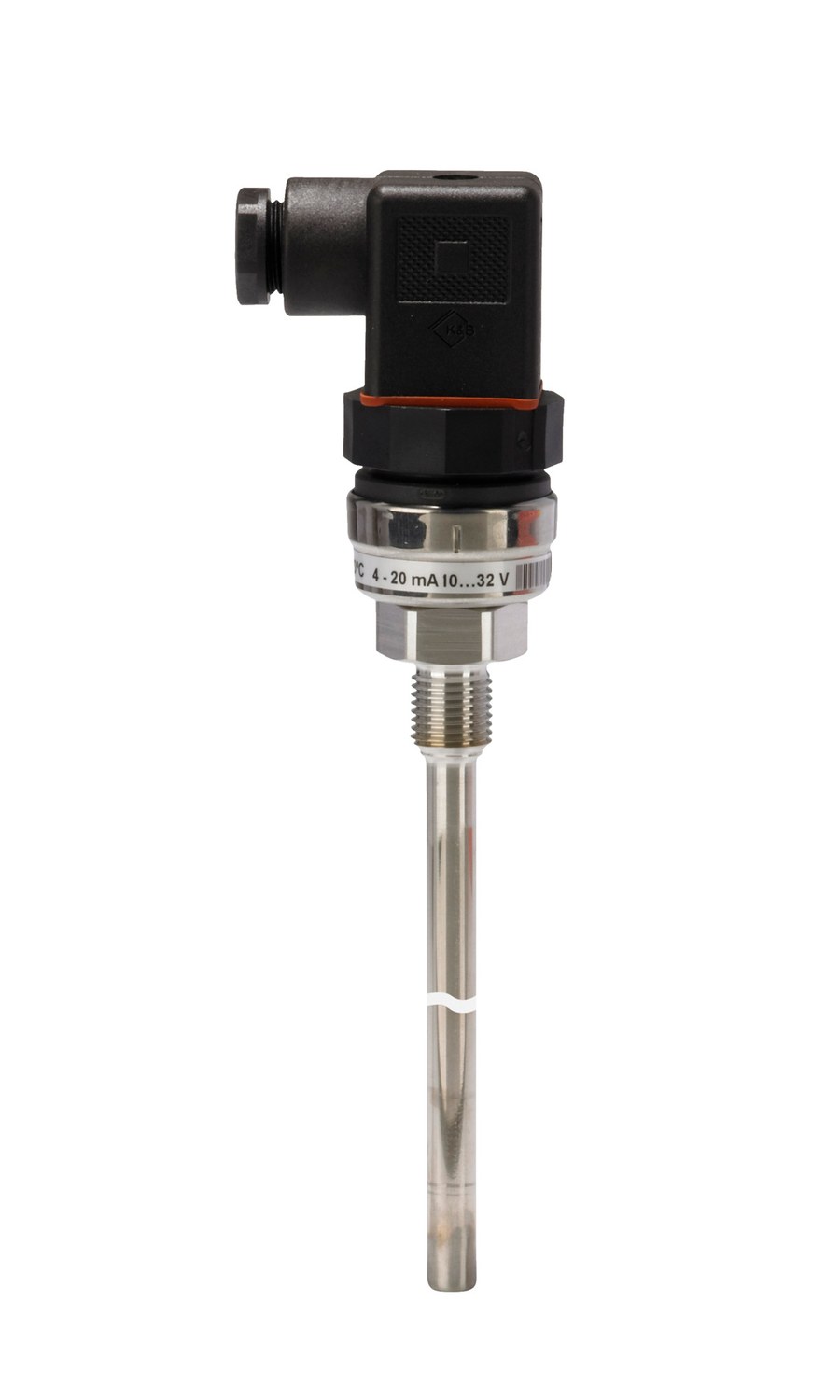

Danfoss MBT 5560 temperature transmitter, Pt 1000 with built-in 4-20 mA transmitter, 250 mm insertion, G 1/4 process connection (code 084Z4024)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5560 temperature transmitter, code 084Z4024 (type designation MBT 5560-0000-0250-10-110). Compact insertion sensor with an integrated 2-wire loop-powered transmitter that delivers a 4-20 mA scaled to the -50 to +200 C measuring range output, for refrigeration, HVAC and machinery control. Pt 1000 platinum element (1000 ohm at 0 C), accuracy < +/-1% FS. Insertion length 250 mm; G 1/4 male (ISO 228-1-A) process connection; AISI 316 Ti protection tube, 8 mm diameter. Sensor measuring range -50 to +200 C (-58 to +392 F). 10-32 V DC supply; Angular connector (form A) per EN 175301-803-A, Pg 9; IP65 enclosure per IEC 60529; maximum ambient 85 C. CE marked.
Specifications
- Part number
- 084Z4024
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 250 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5560 built-in transmitter (4-20 mA, 2-wire). Confirm the -50 to +200 C output scaling matches the receiving controller/PLC, a 10-32 V DC loop supply is available, and the insertion length (250 mm) / process thread (G 1/4) suit the mounting boss.
Standards
- EN 60751
- ISO 228-1-A
- IEC 60529
Approvals
