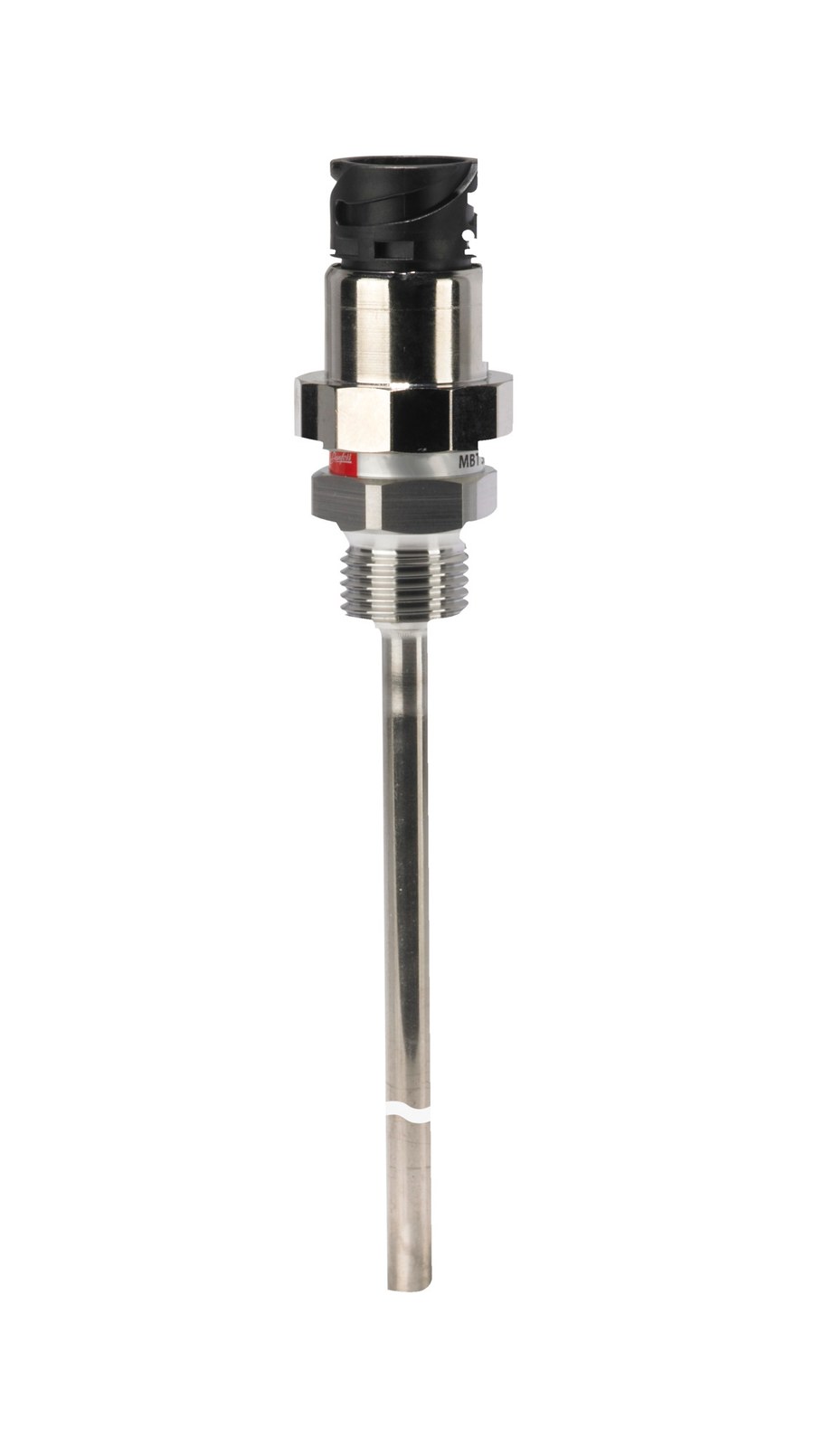

Danfoss MBT 152 temperature transmitter insert, Pt 100, 150 mm insertion, 4-20 mA output
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBT 152 transmitter insert, code 084Z2465 (type designation MBT 152-001-0150-00-G120). Exchangeable measuring insert combining a Pt 100 platinum element (100 ohm at 0 C, Class B per EN 60751) with an integrated 2-wire loop-powered transmitter that outputs 4-20 mA (2-wire), supply 8-35 V DC. Insertion length 150 mm plus 50 mm extension; 6 mm protection tube; IP00 per IEC 60529. Measuring range -50 to +200 C (-58 to +392 F). Used as the replaceable transmitter element inside MBT 5252 sensors. CE marked.
Technical Specifications
- Type
- MBT 152 transmitter insert (exchangeable element with built-in transmitter)
- Type designation
- MBT 152-001-0150-00-G120
- Code number
- 084Z2465
- Sensor element
- Pt 100 platinum resistance (100 ohm at 0 C)
- Tolerance
- Class B per EN 60751
- Insertion length
- 150 mm
- Extension length
- 50 mm
- Protection tube diameter
- 6 mm
- Measuring range
- -50 to +200 C (-58 to +392 F)
- Output signal
- 4-20 mA (2-wire), supply 8-35 V DC
- Electrical connection
- 2-wire, 2-pin
- Enclosure rating
- IP00 per IEC 60529
- Used for
- MBT 5252
- Packing quantity
- 12 pc
- Net weight
- 0.051 kg
- Approvals
- CE
- EAN
- 5702428978071
- Product group
- Sensors
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Connection material
- Stainless steel
- Connection type
- M
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical connection size
- 4 pin
- Electrical connection standard
- DIN 72585
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- In scope of WEEE
- Yes
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Measuring range [°C] [max]
- 200 °C
- Measuring range [°C] [min]
- -50 °C
- Measuring range [°F] [max]
- 392 °F
- Measuring range [°F] [min]
- -58 °F
- Number of terminals [pcs]
- 4 pc
- Process connection material
- Stainless steel
- Process connection size
- 14x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Protection tube diameter [in]
- 0.315 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 TI
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element [pc]
- 1 pc
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor Insert
- Exchangeable
- Temperature range [°C] [max]
- 200 °C
- Temperature range [°C] [min]
- -50 °C
- Temperature range [°F] [max]
- 392 °F
- Temperature range [°F] [min]
- -58 °F
- Wires [pcs]
- 4 pc
Standards & Compliance
- Size / Series
- 150 mm insertion
- Material
- stainless steel
- Temperature Range
- -50 to +200 C (-58 to +392 F)
- IP Rating
- IP00
- HS Code
- 9025.90
Compatibility & Fitment
MBT 152 replaceable transmitter insert (4-20 mA). Confirm insertion length (150 mm), measuring span and host head (MBT 5252) before ordering.
