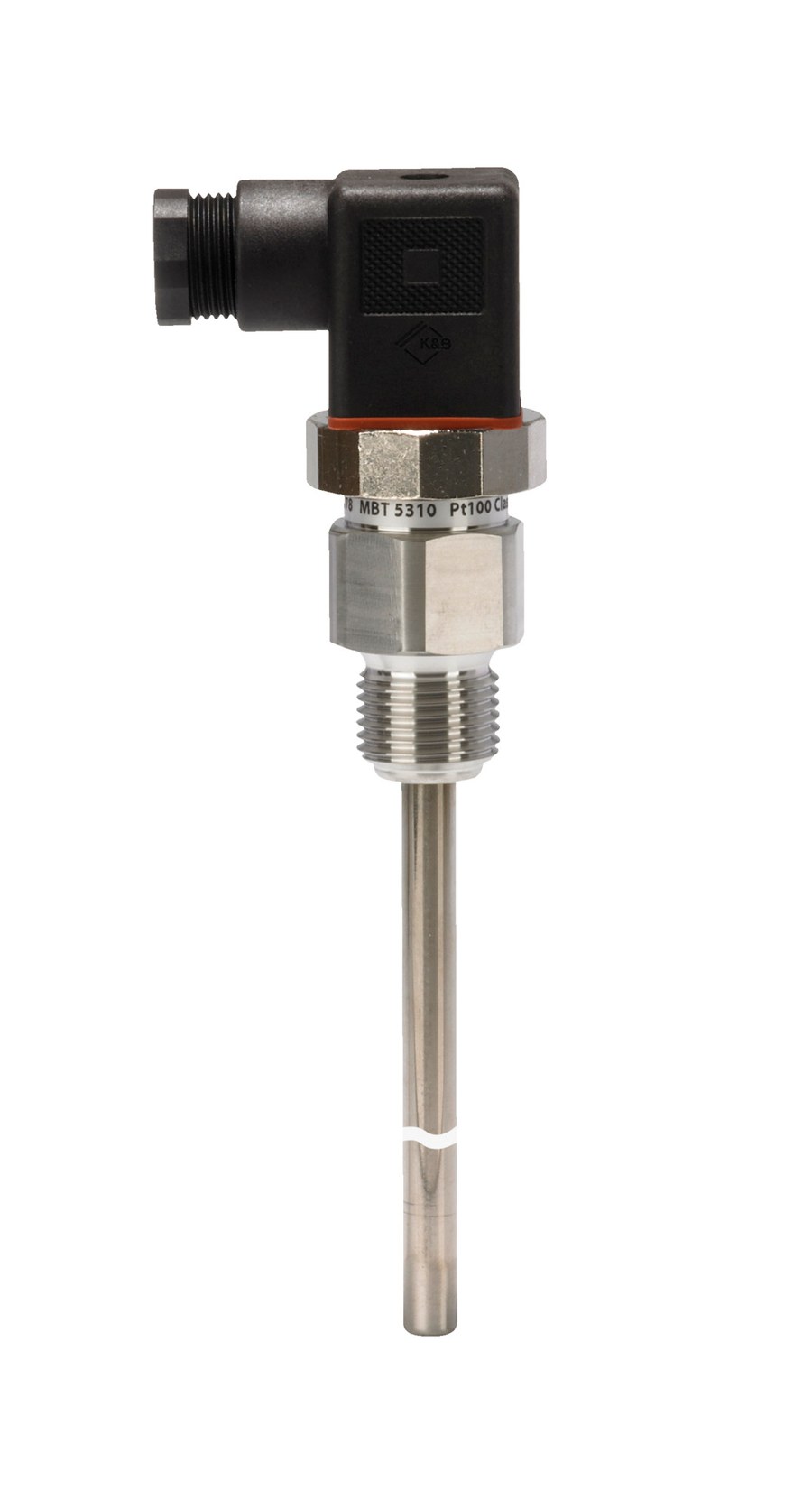

Danfoss MBT 5310 temperature sensor, Pt 100, 132-144 mm (adjustable) insertion, G 1/2 process connection (code 084Z3129)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 5310 temperature sensor with adjustable insertion depth, code 084Z3129 (type designation MBT 5310-00-144-000). Insertion RTD with a sliding compression gland so the immersion depth can be set on site between 132 and 144 mm, for cooling water, oil and refrigeration circuits in general industry and marine installations. Pt 100 platinum measuring element (100 ohm at 0 C), Class B tolerance per EN 60751. G 1/2 male (ISO 228-1-A) process connection; AISI 316 Ti stainless-steel protection tube, 8 mm diameter. Measuring range -50 to +200 C (-58 to +392 F); resistance (ohm) output. Angular connector (form A) per EN 175301-803-A, Pg 11; IP65 enclosure per IEC 60529; maximum ambient 125 C. CE marked.
Specifications
- Part number
- 084Z3129
- HS code
- 9025.19
- Material
- AISI 316 Ti stainless steel
- Temperature range
- -50 to +200 C (-58 to +392 F)
- IP rating
- IP65
- Standard size
- 132-144 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 5310 adjustable-insertion sensor. Set the immersion depth (132-144 mm) to the pocket/boss; confirm process thread (G 1/2) and element (Pt 100). The compression gland fixes the depth once set.
Standards
- EN 60751
- EN 175301-803-A
- ISO 228-1-A
- IEC 60529
