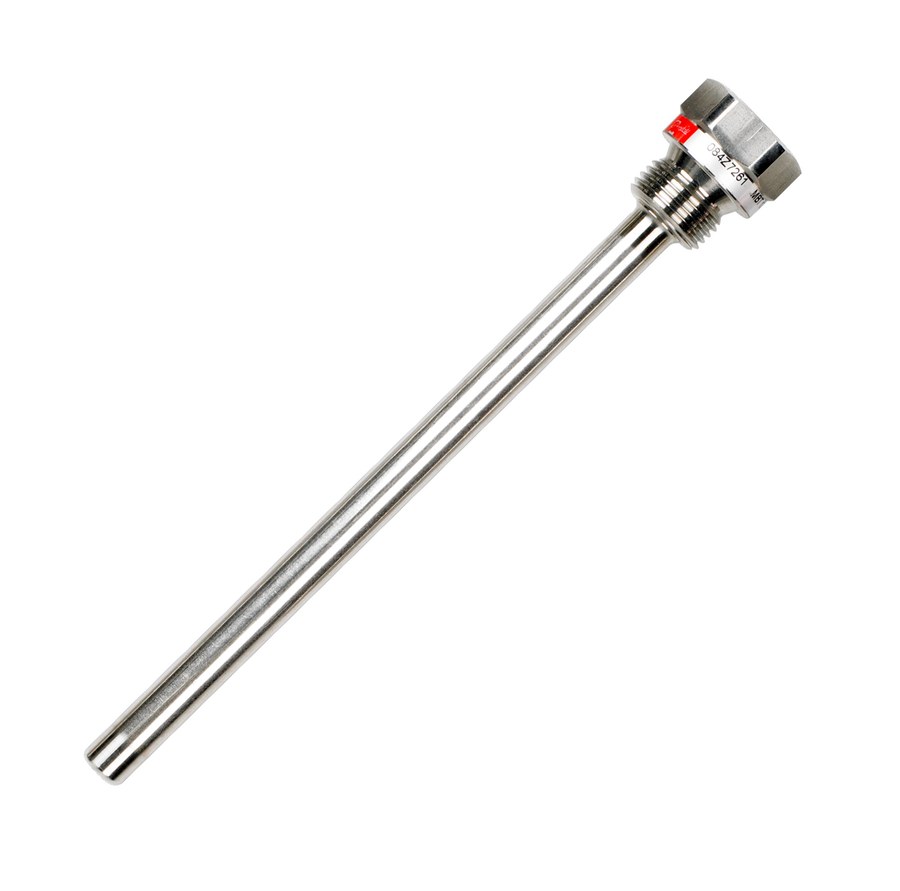

Danfoss MBT 120 sensor pocket (thermowell), 200 mm insertion, G 1/2 connection, AISI 316 Ti (code 084Z2442)
Danfoss · Sensors & Instrumentation · Temperature Sensors
Danfoss MBT 120 sensor pocket (thermowell), code 084Z2442 (type designation MBT 120-630-200-C). Protects an inserted MBT temperature sensor from process pressure and flow and allows removal of the sensor without opening the process. AISI 316 Ti protection tube, 11 mm diameter; insertion length 200 mm; G 1/2 male process connection (ISO 228-1-A). Service temperature -50 to +200 C (-58 to +392 F). Used with MBT 3560, MBT 5560. CE marked.
Specifications
- Part number
- 084Z2442
- HS code
- 9025.90
- Material
- AISI 316 Ti
- Temperature range
- -50 to +200 C (-58 to +392 F)
- Standard size
- 200 mm insertion
- Thread standard
- ISO 228-1-A
Compatibility
MBT 120 thermowell. Confirm insertion length (200 mm), process thread (G 1/2) and bore suit the host sensor (MBT 3560, MBT 5560) and mounting boss.
Standards
Approvals
